SWP Series Plastic Crusher Machine For PVC Pipe PVC Profile Recycling

Brand Name:	FRIEND
Model Number:	swp400
MOQ:	1 set
Price:	USD 4000 per set
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China , Jiangsu

Certification:

Capacity:

200-300kg/h

Voltage:

380V/50Hz/3Phase

Weight:

500kg

Power:

15kw

Use:

Waste Plastic Crusher

Plastic Type:

PVC

Condition:

New

Shaft Design:

Single

Packaging Details:

film package

Supply Ability:

100 sets per month

Highlight:

plastic shredder machine

plastic grinding machine

Product Description

SWP Series Plastic Crusher Machine For PVC Pipe PVC Profile Recycling

Features

1. A little longer plastic pipes, profiles could be crushed directly without cutting it into subsections.

2. Crushed granules are uniform. The granules are collected in bags directly by fan and put in storage.
3. Hopper’s double layer design with curtain in charging hole lowers noise.
4. Easy to change cutter, screen mesh, each is equipped with a helical screw rod hand wheel operation
5. Heavy duty rotor could be applied to high hardness, thick wall, tough pipes, profiles.

Application

It is mainly suitable for crushing various plastic profiles and pipes, including plastic doors, plastic plates, window frames, slots, sheets, plastic pipes. For the long small diameter PE pipe, PVC, PPR plastic pipe, it does not need cutting section, and can be continuously fed at one time. For the larger diameter and thicker pipe, it can also be broken after cutting section.

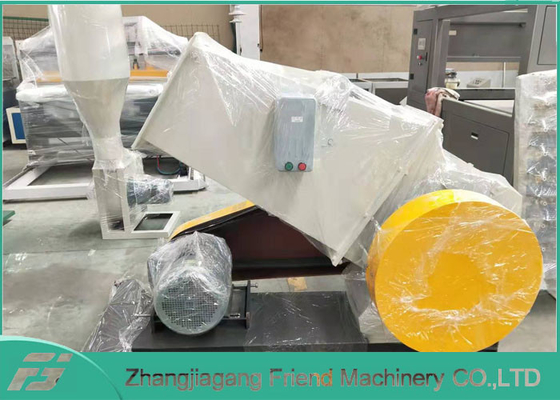

SWP Series Plastic Crusher Machine For PVC Pipe PVC Profile Recycling 0

Technical Parameters

Simple description
Model	SWP400	SWP500	SWP630
Diameter of rotary cutter	400	500	630
Quantity of rotary cutter	5	7	9
Fixed cutter	2	2	4
Capability(kg/h)	350-450	450-700	700-850
Power(kw)	13.2	30	44
Caliber of material inlet(mm)	375*320	600*420	820*610
