110-315mm Plastic Pipe Machine Pvc Water Pipe Making High Speed Production
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
Minimum Order Quantity : | 1 set | Price : | negotiation |
---|---|---|---|
Packaging Details : | film packing and wooden case | Delivery Time : | 30 making days |
Supply Ability : | 20 sets per year |
Place of Origin: | Jiangsu,China | Brand Name: | Friend |
---|---|---|---|
Certification: | CE,SGS,UV | Model Number: | SJ65/28 |
Detail Information |
|||
Extruder Type: | SJ65/28 Single Screw Extruder With 7.5kw | Screw Type: | Single-screw |
---|---|---|---|
Mold Material: | 40Cr Steel | Key Selling Points: | High Productive |
Motor Brand: | SIEMENS Brand | Video Outgoing-inspection: | Provided |
Warranty: | 1 Year | Company Type: | Factory |
High Light: | Drip Irrigation Plastic Pipe Machine,63mm Plastic Pipe Machine,63mm pvc pipe production line |
Product Description
16-63mm Agricultural Drip Irrigation Pipe Plastic Pipe Machine
Description
Drip irrigation pipe is an important irrigator in drip irrigation system,According to the requirements if crop water demand,through the low-pressure pipeline system and the irrigator installed on the capillary,water and crop nutrients need to drip into the soil of crop root area evenly and slowly,At pressent,it is the most effective water saving irrigation method in arid and water scarce areas,it can be applied to the irrigation of fruit trees,vegetables,cash crops and greenhouses.
Features
1.The distance between emitters can be adjusted according to demands of different crops,it can be adjusted to same distance as well as regular pattern of different distances.
2.The emitter adopts unique design of circular arc flow path and has the characteristics of complete turbulent fluid,automatic washing and strong antiblocking.
3.The paving length is long and can reach 100 meters.
4.The mosaic column emitter type drip irrigation pipe can be used in plains as well as in hills and sloping fields.
5.One emitter has two or four outlets,which antiblocking capability is strong.
6.The pipe wall thickness can reach 1.2mm and has long service life.
Application
1. Water, especially for agriculture
2. Pipeline solution with dripper insertion system
3. High speed, PLC control, precise control
Main Technical Parameter
Single screw extruder | SJ55/30 | SJ65/30 | SJ75/30 |
Power(kw) | 18.5 | 37 | 45 |
Pipe Diameter(mm) | 6-16 | 6-16 | 6-16 |
Punching speed(rpm) | 18-30 | 18-50 | 30-80 |
Capacity(kg/h) | 70-100 | 100-120 | 150 |

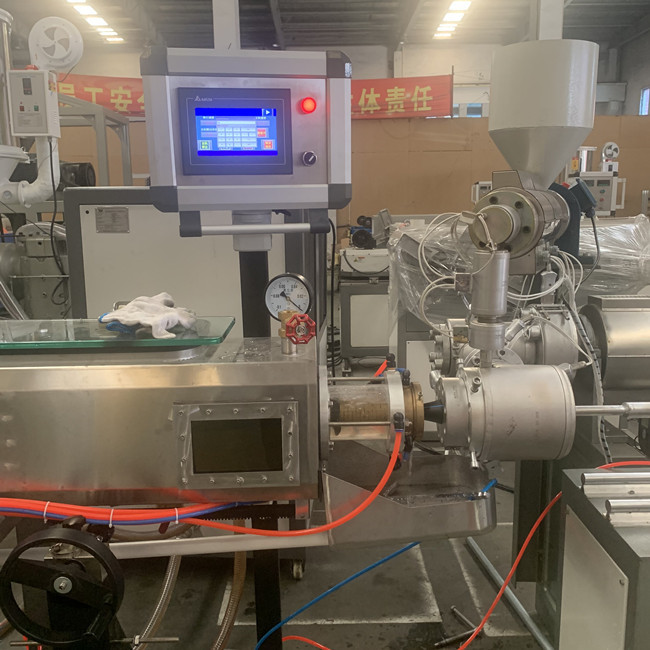

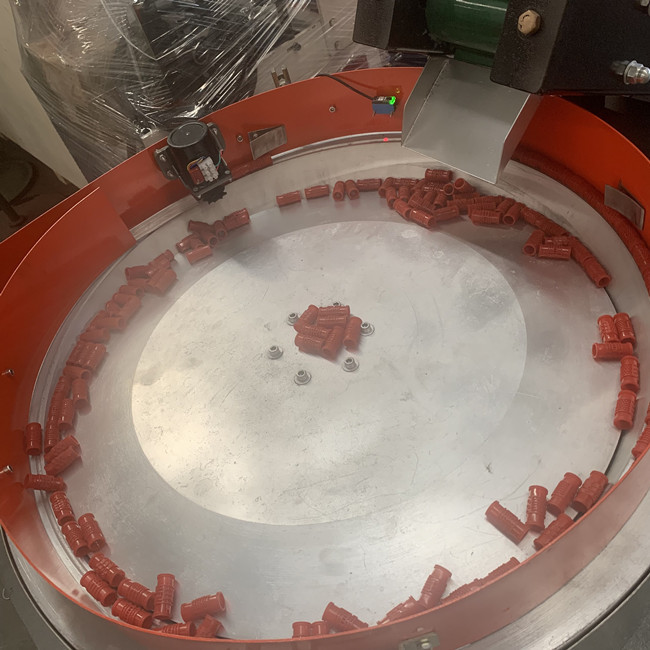

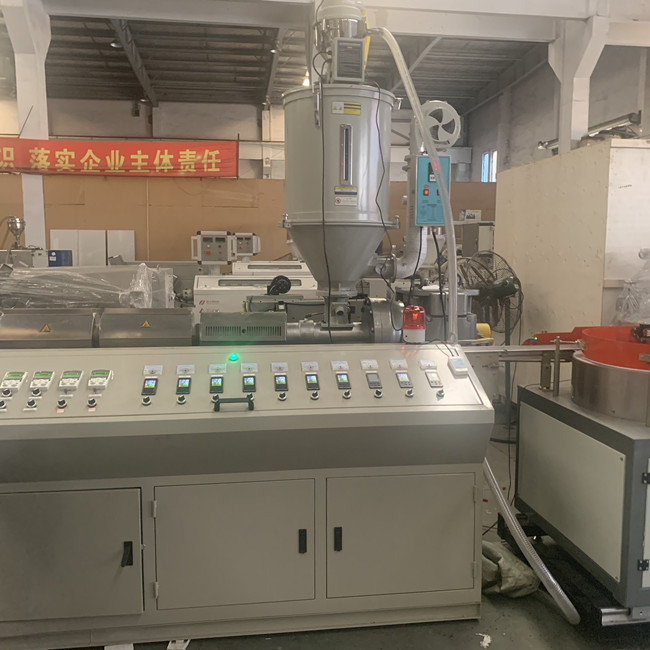

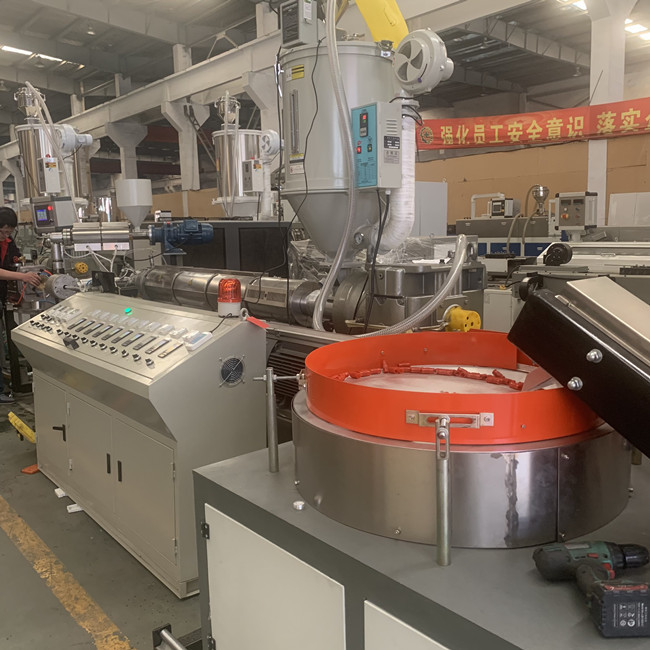

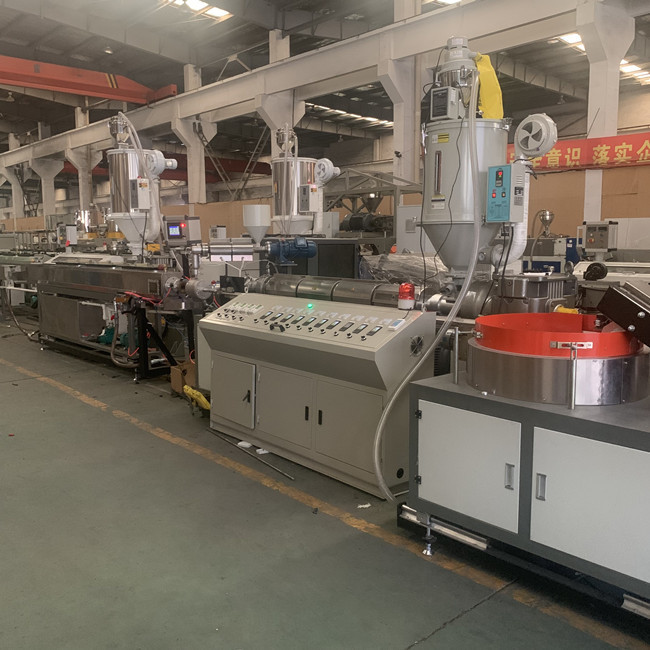

More Product Pictures
