250kg/H Voltage Customized Granules Pvc Pelletizing Line Conical Twin Screw

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film package Delivery Time : 25 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE,SGS,TUV Model Number: SJSZ65/132 twin screw extruder

Detail Information

Material: PVC Warranty: One Year
Application: Granules Power: 50kw
Capacity: 180-250kg/h Rotary Blade: 3 Pieces
Processing Type: Extruding After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

granules pvc pelletizing line


250kg/h pvc pelletizing line


conical pvc pelletizer

Product Description

180-250kg/h voltage customized granules used PVC pelletizing line


Product Details

SJSZ series PVC conical twin screw extrusion machine is a special equipment suitable for all kinds of PVC powder extrusion molding. Equipped with different molds and auxiliary machines, it can produce all kinds of PVC plastic pipes, profiles, decorative gussets, and bars. And granulation. The barrel is heated by aluminum casting heating ring and cooled by air cooling system. It has the characteristics of fast and uniform heat transfer and convenient operation and maintenance. The screw core adopts an automatic circulating cooling adjustment system to improve efficiency. The screw with the most reasonable structure can be prepared according to different formulas of users to achieve the best plasticizing effect. The reduction box and distribution box adopt bush bearings, imported oil seals, and gears are made of high-quality alloy steel with nitriding treatment. The temperature control system adopts an imported temperature control meter, and the temperature control accuracy can reach: 1℃. The speed control system adopts imported frequency conversion or DC speed control. The electrical system has various self-diagnostic fault alarm functions and is equipped with current protection devices.


Product Information

This pelletizing machine is composed by SJSZ series conical twin-screw extruder and correspondingly pelletizing auxiliary
equipment; It is suitable for pelletizing PVC, WPC material. The pellets produced by this line are even, solid, elegance.

The pelletizing auxiliary equipment includes die face cutter, air transferring unit, vibration separating and cooling unit,with
features of high automation and high production efficiency.



1. Advanced equipment, precise pelletizing and high producing capacity.
2. Conical double -screw extruder, very suitable to process PVC powder with high capacity.
3. Pelletizing type: hot-cutting on mould face, even cutting ensures good pellets shape.
4. Auxiliary machine: pellets cooling u& classifying.


According to customer’s materials formulation,we choose the screw with most reasonable structure,with the aim of reaching the best plastication status,as well as good material floating quality.


Main Technical Parameter

Extruder model SJSZ51 SJSZ55 SJSZ65 SJSZ80 SJSZ92
Screw Diameter(mm) 51/105 55/110 65/132 80/156 92/188
Main Motor(kw) 18.5 22 37 55 90
Cutting Power(kw) 1.1 1.1 1.5 1.5 2.2
Granules Size(mm) 3 3 3 3 3
Output(kg/h) 80-100 100-150 150-250 250-380 380-700

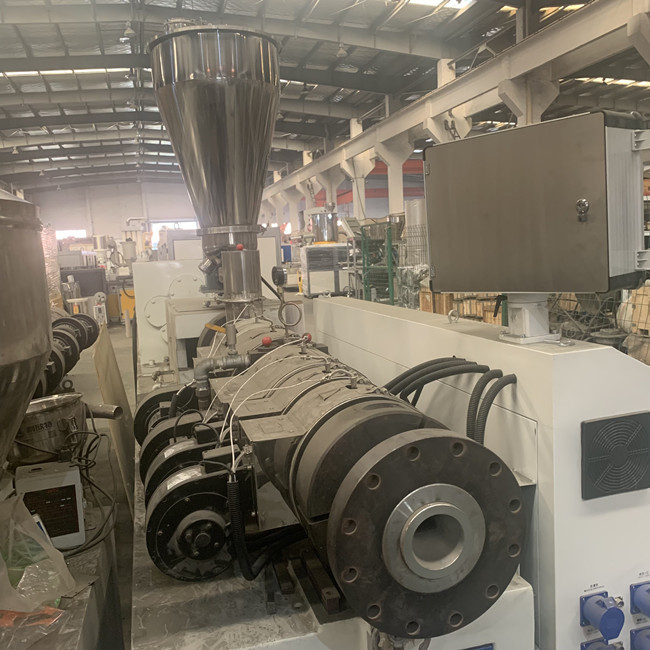

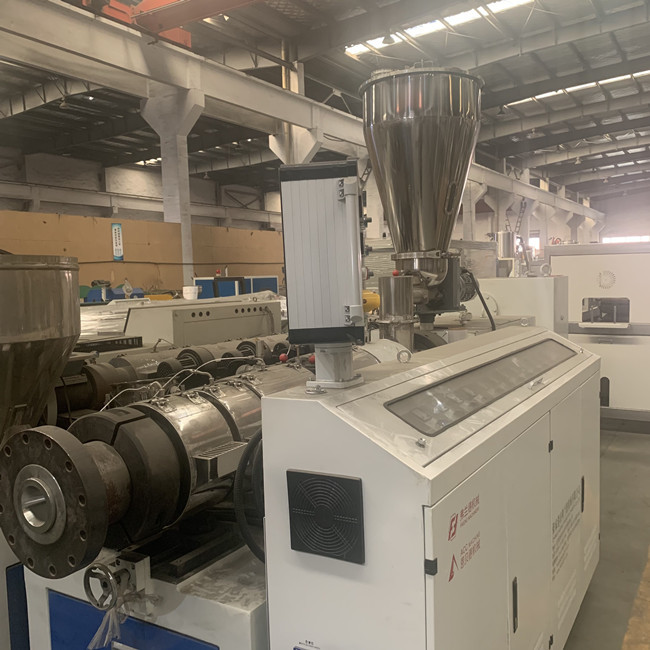

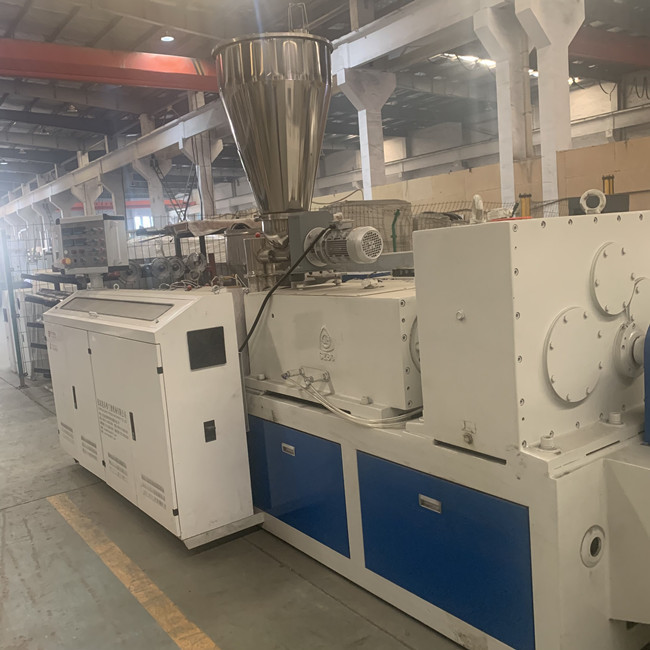

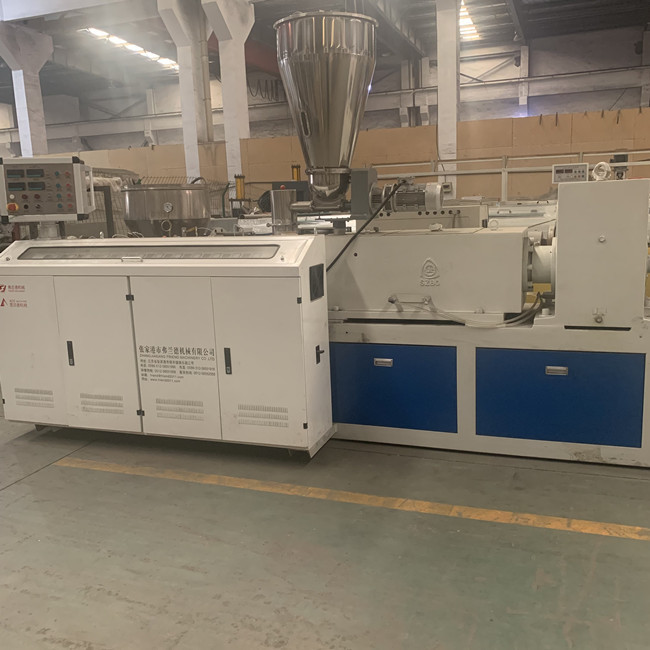

More Product Pictures

250kg/H Voltage Customized Granules Pvc Pelletizing Line Conical Twin Screw 0250kg/H Voltage Customized Granules Pvc Pelletizing Line Conical Twin Screw 1250kg/H Voltage Customized Granules Pvc Pelletizing Line Conical Twin Screw 2250kg/H Voltage Customized Granules Pvc Pelletizing Line Conical Twin Screw 3
