40kg/H Single Screw Plastic Extruder Machine For Plasticization

Minimum Order Quantity : 1set Price : negotiation
Packaging Details : film covered and packing box Delivery Time : 20-25days after down payment
Payment Terms : T/T Supply Ability : 70 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJ

Detail Information

Application: Plastic Extrusion Extruder Type: Single Screw
Feature: Lower Consumption And High Efficiency Place Of Origon: Jiangsu,China
Motor: SIEMENS Brand Control System: ABB Inverter ,SIEMENS Contacter , OMRON Temperature Meter
Heater: Cast Aluminum Heater Hopper: 304 Stainless Steel Hopper
Warranty: 1year Color: Optional
High Light:

40kg/h plastic extruder machine


Plasticization plastic extruder machine


40kg/h plastic screw extruder

Product Description

25-40kg/h color optional SJ series single screw plastic extruder machine



1. Model and type: sj45 / 30, sj65 / 33, sj75 / 33, sj90 / 33, sj20 / 33, SJ150 / 33;

2. Composed of separate screw and mixing parts

3. It can be used for plasticization and extrusion.

4. Various plastic products, such as film tube, plate, braid, belt, granulation, plate, thread, strip, cable insulation and hollow products.



Single screw extruder installed on machine tool made of section steel and steel plate. It is equipped with 45 mm, 60 mm, 75 mm or 90 mm diameter plasticized screws, made of normalized, Quenched and tempered steel, and can be equipped with temperature control system and nitrided steel cylinder with 4 independent temperature control zones. Extruders also have different length / diameter ratios.



1) The screw and barrel of the extruder are made of high-quality alloy steel 38crmovala. After nitriding treatment and special surface treatment, they have good quality and long service life.

2) Gear box: Chinese famous brand hard tooth helical gear reducer, with beautiful appearance, stable operation, low noise and long service life.

3) Heating system: cast aluminum heater with #304 stainless steel plate cover and fan independent cooling system are adopted to ensure good cooling and heating performance and accurate temperature control.

4) Drive system: famous motor brands in China and world-famous brands such as ABB frequency converter are adopted, with stable torque output and various speeds.


After-sale service

1. We not only provide machines, but also provide technical guidance and market evaluation.

2. We will provide all machines required for complete production according to customer requirements.

3. We will provide complete factory layout and other information services to help customers establish factories.

4. We will provide good machine installation and training services until customers can run the machine and stabilize production.

5. In addition to one-year quality assurance, we will provide after-sales service for life.

6. For long-term cooperation, we always provide customers with high-quality, low-cost and high-quality services.


Main Technical Parameter

Model SJ45/30 SJ65/33 SJ75/33 SJ90/33 SJ150/33
Screw diameter(mm) 45 65 75 90 150
L:D 30:1 33:1 33:1 33:1 33:1
Motor(kw) 18.5/22 37/45 75 110 260
Heating power(kw) 13.5 16.5 37 42 80
Output(kg/h) 30-60 50-100 80-160 150-250 500-800


More Product Pictures

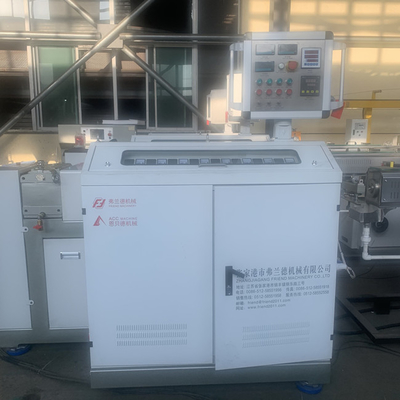

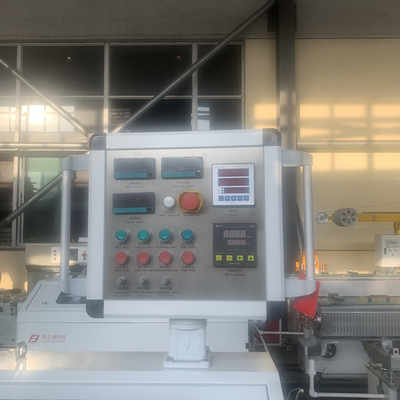

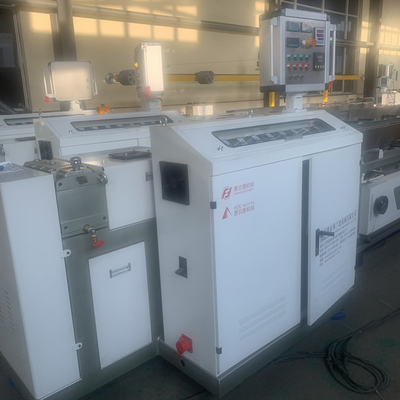

40kg/H Single Screw Plastic Extruder Machine  For Plasticization 040kg/H Single Screw Plastic Extruder Machine  For Plasticization 140kg/H Single Screw Plastic Extruder Machine  For Plasticization 2

40kg/H Single Screw Plastic Extruder Machine  For Plasticization 3
