Ldpe Single Wall Corrugated Pipe Machine 800mm Diameter

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film package,also can be wooden case if needed Delivery Time : 30 days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 30 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE,SGS,TUV Model Number: SJ single screw extruder

Detail Information

Material: PVC,PP,PE Application: Pipe
Certification: CE Motor Brand: Simens
Weight: Depend On Design Warranty: One Year
Screw Design: Single Screw After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

PVC Single Wall Corrugated Pipe Machine


800mm single wall corrugated pipe machine


Corrugated ldpe pipe extrusion equipment

Product Description

15-55kw PP PE PVC Single Wall Corrugated Pipe Machine Plastic Pipe Machine



1. The single wall corrugated pipe machine uses PVC, PP and PE as raw materials to produce single wall corrugated pipes for protective wires.

2. The inside and outside of the product are smooth and uniform through the corresponding mold and setting machine.

3. Product application: cable threading pipe, washing machine drainage pipe, vacuum pipe, ventilation drainage pipe, etc.



Plastic bellows are widely used in our daily life, such as threaded pipe, drainage pipe, pipe, stone sand pipe, shrinkage pipe, etc. Plastic bellows has many advantages:

1. Compared with flat pipe, bellows has the advantages of light weight, material saving, low energy consumption and low price;

2. Corrugated pipe with smooth inner wall can reduce the flow resistance of liquid in the pipe and improve the conveying capacity;

3. Good chemical corrosion resistance and can resist the influence of alkali in soil.



(1) Screw:

It is the key component to complete plastic transportation and plasticization. Due to rotation, it pushes the plastic forward, so as to achieve the purpose of compaction, melting, mixing and homogenization. The thread is composed of different functional sections to achieve better conveying, compaction, mixing, plasticizing effect and high yield. The screw material is made of high-quality nitriding steel (38CrMoAlA) through finishing, nitriding and grinding. Corrosion resistance, wear resistance and long service life. (PLA filament extruder)

(2) Barrel:

The barrel is made of nitrided steel. After nitriding treatment, the inner hole has higher hardness, better wear resistance and certain corrosion resistance. There are five groups of heaters on the outer surface of the cylinder. Heat is transferred from the barrel to the plastic to melt and plasticize the plastic. There are five temperature measuring points at each part of the cylinder, which can be automatically controlled within the plastic processing temperature range. The fifth heating area of the cylinder is provided with air circulation cooling, which can accelerate the cylinder cooling and improve the temperature control accuracy. (MBBR extruder)

(3) Head flange joint:

It is a part connecting the head and the cylinder, which is heated by the heating ring to prevent the molten plastic from cooling.

(MBBR extruder)

(4) Transmission system:

The transmission system is to make the screw rotate evenly with the necessary torque under the selected process conditions, so as to complete the plasticization and transportation of plastic by the screw. In order to meet the production requirements of various specifications of plastic products, the screw should have different speeds. The machine adopts variable frequency motor to drive the gearbox directly through the coupling, and adopts governor to realize speed regulation. The screw speed can be read directly through the tachometer or governor on the control panel. (PLA filament extruder)



1. Capacity: single screw extruder, suitable for high-capacity polyethylene powder, maximum 800kg / h

2. Diameter: our company has successfully designed and produced the world's largest conical single extruder. The maximum production diameter is 800mm.

3. The auxiliary machine fully meets the customer's requirements. Beautiful appearance, automatic control, stable operation performance.

This machine is mainly used for producing PE water pipes; High quality and reasonable design.


Main Technical Parameter

Model Pipe diameter(mm) Extruder Output(kg/h) Installation power(kw) Extruder power(kw)
SJ45 16-32 SJ45/30    SJ25/25 30-60 40 22
SJ65 20-75 SJ65/33    SJ25/25 80-120 65 37
SJ75 50-160 SJ75/33    SJ25/25 80-150 150 75
SJ90 75-250 SJ90/33    SJ25/25 280-350 200 110
SJ120 160-315 SJ120/33  SJ30/25 300-450 280 185
SJ150 315-630 SJ150/33  SJ30/25 550-800 420 285


More Pictures

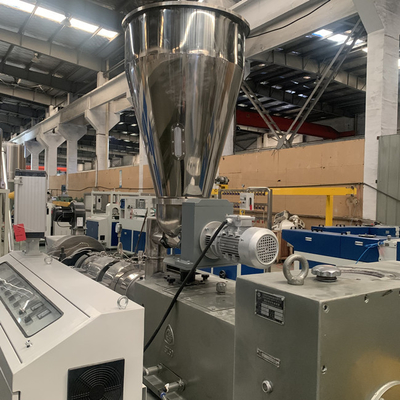

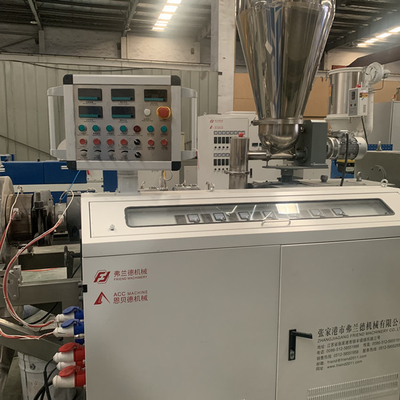

Ldpe Single Wall Corrugated Pipe Machine  800mm Diameter 0Ldpe Single Wall Corrugated Pipe Machine  800mm Diameter 1Ldpe Single Wall Corrugated Pipe Machine  800mm Diameter 2Ldpe Single Wall Corrugated Pipe Machine  800mm Diameter 3
