350mm PLC Control Pipe Forming Flaring Machine 14Mpa Oil Pressure

350mm PLC Control Pipe Forming Flaring Machine 14Mpa Oil Pressure

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE
Model Number: SG

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiated
Packaging Details: wooden case
Delivery Time: 15working days
Supply Ability: 20sets per month
Get Best Price Contact Now

Detail Information

Cooling: Water Warranty: 1year
Oil Pressure: 14Mpa Automatic Grade: Fully Automatic
Key Selling Points: Famous Brand PLC Color: Customized
Material: All Kinds Of Material Power: 5.5kw
High Light:

350mm pipe forming machine

,

14Mpa pipe forming machine

,

PLC control pipe flaring machine

Product Description

5.5kw 10-350mm PLC control pipe forming use flaring machine

Application
1. Used for pipe end expanding, reducing, flange and flaring.
2. Microcomputer control, convenient operation and flexible setting;
3. Hydraulic drive, stable processing;
4. It can be equipped with various forming molds for pipe end forming such as extension and contraction and other special forming;
5. Hydraulic cooling system to ensure long-term stable operation of the equipment under high temperature;
6. Equipped with emergency stop device. Manual and semi-automatic operation;

Features
Applicable to all metal pipes, such as steel, stainless steel, copper, aluminum and titanium..
For different pipe diameters and requirements, there are other different models, double head series and automatic feeding series.
Please contact the supplier for pipe size and machining size to confirm which model is required. There are also different types of pipe end forming machines, such as two station sg-40-2, three station sg-40-3..., double end forming machine and automatic loading pipe end forming machine.

Specification
1) PLC control unit: easy to operate and maintain
2) It is applicable to the shrinkage of various metal pipes of different materials and shapes
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) The contraction stroke is 100mm. The maximum workpiece length is 450mm, and there is no minimum workpiece length
5) The machine can manufacture pipe end reducer, expansion pipe, flange and flare according to different forming molds

Main Technical Parameter

ModelSG40SG60SG80SG100SG120
Max work capacity38*2.0t60*2.5t80*3t100*2.0t120*2.0t
Max processing length(mm)100120150150150
Motor power(kw)45.57.51414
Oil pressure(Mpa)4.512121414
Working speed(mm/s)100/3-4100/3-4130/5-6140/6-7140/8-9


More Product Pictures

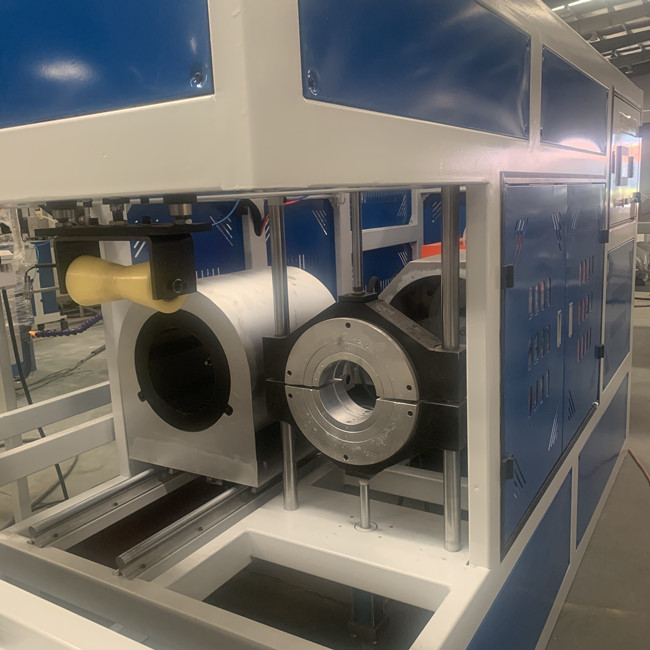

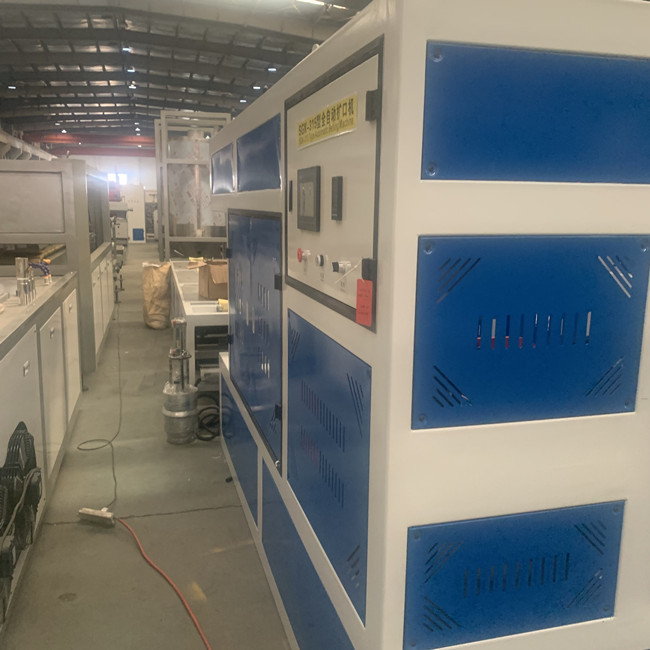

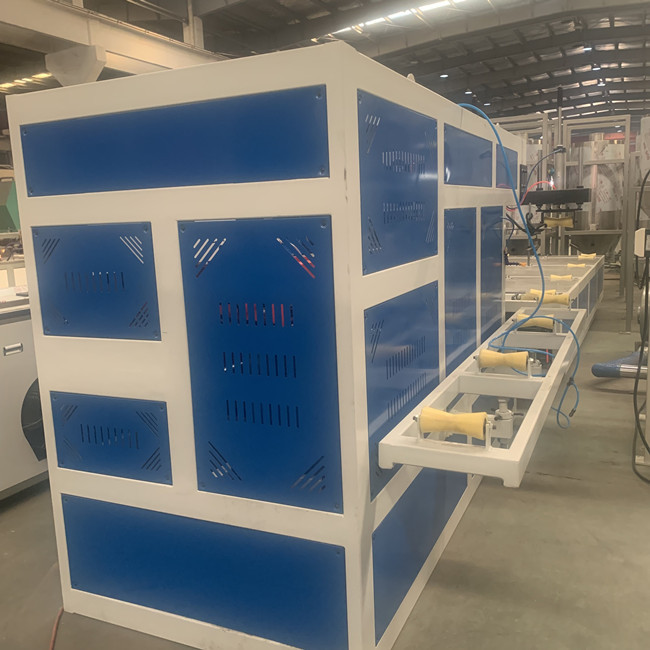

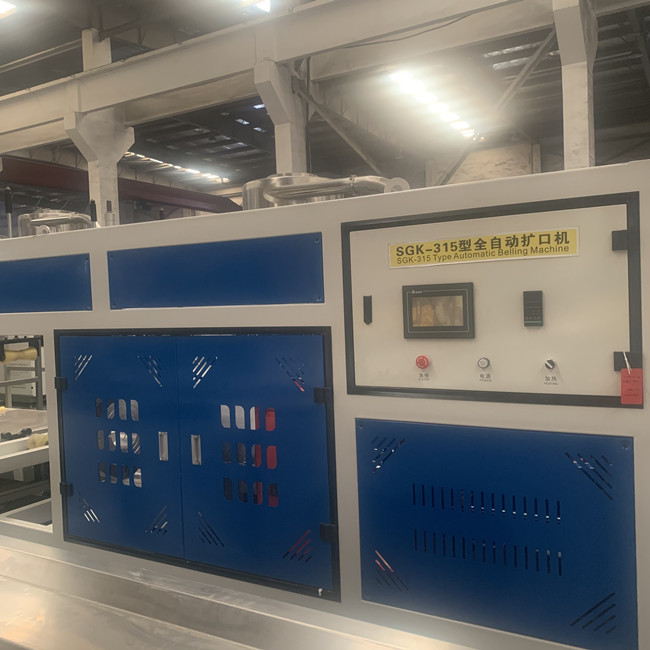

350mm PLC Control Pipe Forming Flaring Machine 14Mpa Oil Pressure 0350mm PLC Control Pipe Forming Flaring Machine 14Mpa Oil Pressure 1350mm PLC Control Pipe Forming Flaring Machine 14Mpa Oil Pressure 2350mm PLC Control Pipe Forming Flaring Machine 14Mpa Oil Pressure 3
