Product Description
PE PP PVC PLA HDPE water pipe irrigation supply plastic extruder machine
Details
The extrusion line can be used for the production of polyethylene pipes with different diameters, and has excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, creep deformation resistance, thermal connection and other properties.
Therefore, the pipeline production line is the first choice for gas, water pipe and agricultural irrigation pipeline system between urban and rural areas.
Information
Single screw extruder installed on machine tool made of section steel and steel plate. It is equipped with 45 mm, 60 mm, 75 mm or 90 mm diameter plasticized screws, made of normalized, Quenched and tempered steel, and can be equipped with temperature control system and nitrided steel cylinder with 4 independent temperature control zones. Extruders also have different length / diameter ratios.
Features
1, Kinds of Models: SJ45/30, SJ65/33, SJ75/33, SJ90/33, SJ20/33,SJ150/33;
2, Composing separate type screw and mixing parts
3, This can be used in plasticizing and extruding.
4, Kinds of plastic products such as film pipe, plate, braid, belt as well as pelletizing, plate, thread , ribbon, insulating layer of cable, hollow products.
Advantages
1. Large extrusion capacity;
2. Advanced design, good plasticization and low energy consumption;
3. Competitive price and high-quality service.
Main Technical Parameters
| Model |
SJ45/30 |
SJ65/33 |
SJ75/33 |
SJ90/33 |
SJ150/33 |
| Screw Dia.(mm) |
45 |
65 |
75 |
90 |
150 |
| L:D |
30:1 |
33:1 |
33:1 |
33:1 |
33:1 |
| Motor(kw) |
18.5/22 |
37/45 |
75 |
110 |
260 |
| Heating power(kw) |
13.5 |
16.5 |
37 |
42 |
80 |
| Capacity(kg/h) |
30-60 |
50-100 |
80-160 |
150-250 |
500-800 |

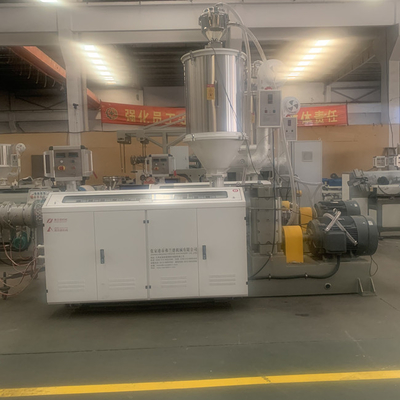

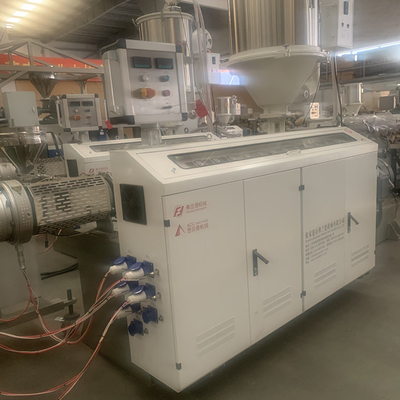

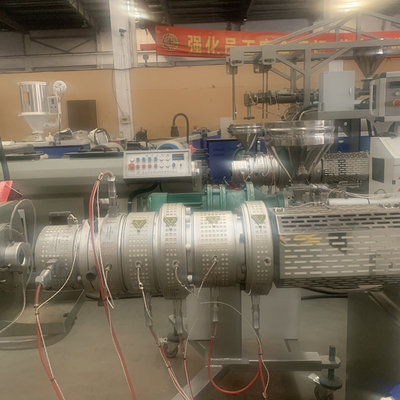

More Product Pictures
