300mm  Wood Plastic Composite WPC Profile Extrusion Line With twin screw

300mm Wood Plastic Composite WPC Profile Extrusion Line With twin screw

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: SJSZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: STANDARD WOODEN PACKAGE
Delivery Time: 35 WORKING DAYS
Supply Ability: 20 SETS PER MONTH
Get Best Price Contact Now

Detail Information

Raw Material: PVC Powder Brand Name: Friend
L/D: 25-33 Key Selling Points: Competitive Price
Ceiling Width: 300 Mm Machinery Test Report: Provided
Screw Material: 38CrMoALA Place Of Origon: Jiangsu,China
High Light:

300mm WPC Profile Extrusion Line

,

wpc ceiling panel extruder

,

300mm wpc board making equipment

Product Description

300mm WPC/PVC/UPVC Wood Plastic Composite Profile Extrusion Line



Description

Wood plastic composite is a new type of composite material rising in recent years. WPC uses polyethylene, polypropylene, PVC, etc. instead of common resin adhesives, and more than 35% - 70% of wood powder, rice husk, straw waste and plant fibers are mixed into wood materials, which are processed into plates and profiles by extrusion, molding and injection molding. It is mainly used in building materials, furniture, logistics and packaging industries.

Wood plastic composites contain plastics, so they have good elastic modulus. In addition, WPC contains fiber and classic materials, which can be fully mixed with plastics. Therefore, compared with hardwood, WPC has physical and mechanical properties such as compression resistance and bending resistance. Its durability is obviously better than that of general wood materials. The surface hardness is high, generally 2-5 times that of wood.



Application

1) It is mainly used to produce PVC window profiles, plastic decorative plates and PVC

Foam profiles

2) Variable frequency speed regulation is adopted

3) It has super taper twin-screw extruder and screw core with temperature controller

4) Power saving 30% - 40%

5) The rigid tooth surface of the reducer can work continuously for a long time

Carefree time

6) Stable operation and die change

7) Long service life

8) Steel plastic profiles can be produced by changing wood plastic foam profiles

Die, combined with a set of steel lining conveyor



Advantages

High quality: many patents, advanced design, all-round service, independent research team and rich PVC / WPC experience.

Official certification: ISO9001 / CE certification

Long service life: the screw and barrel are made of high-quality materials and specially processed. The working life can reach 15000 hours.

Advanced control system: the production process can rely on PLC control system and OMRON sensor.

International famous accessories: Siemens, Omron, abb, etc.

Low energy consumption: compared with our Chinese counterparts, our production line can save up to 50% of energy costs.

Raw materials are widely used: PP, PE, PVC and other wood flour and / or plant fiber.

Excellent mixing ratio: up to 70% wood flour can be added under the control of some special formulas



Main Technical Parameters

Model Max output(kg/h) Producton speed(m/min) Power(kw)
SJSZ51 60-120 0.5-2 65
SJSZ65 80-200 0.5-3 85
SJSZ80 150-300 0.5-4 120

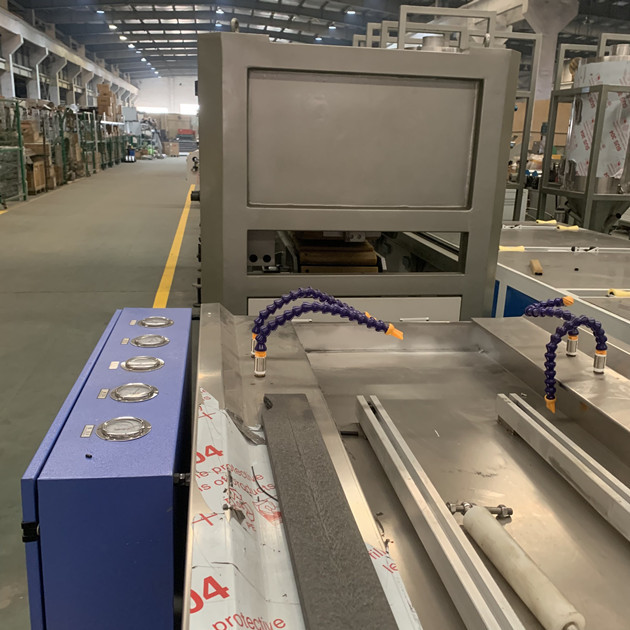

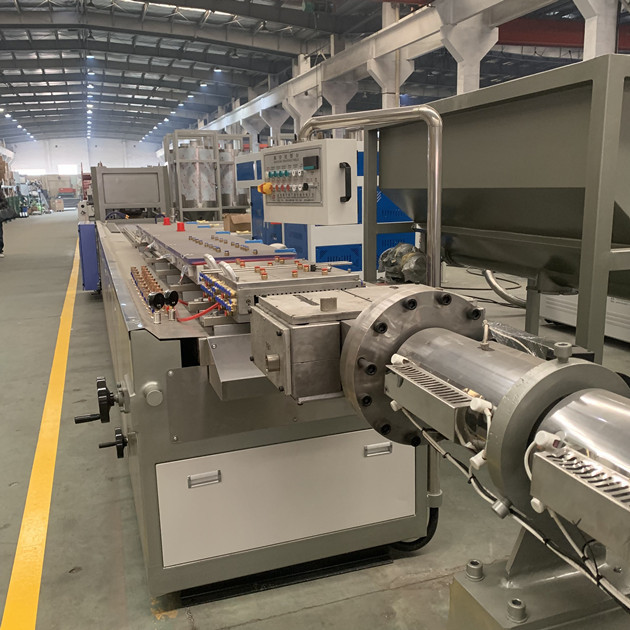

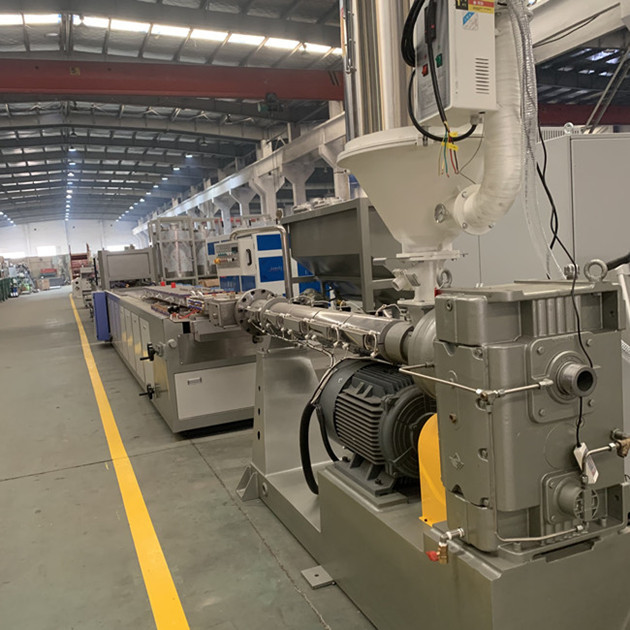

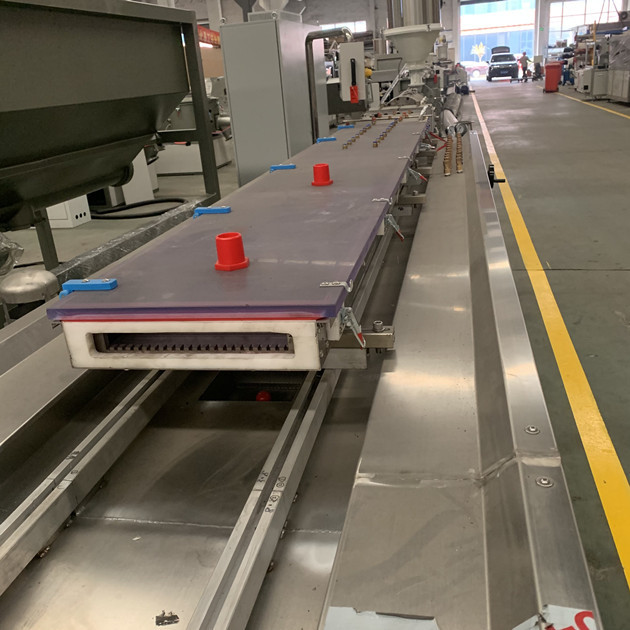

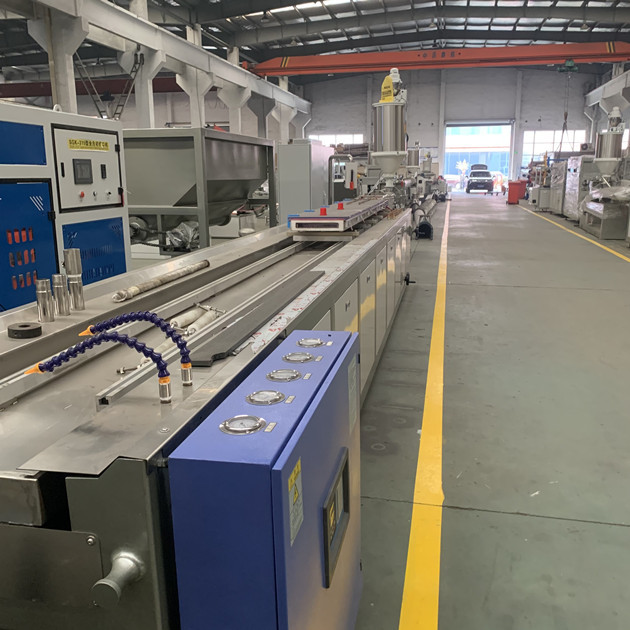

Product Pictures

300mm  Wood Plastic Composite WPC Profile Extrusion Line With twin screw 0300mm  Wood Plastic Composite WPC Profile Extrusion Line With twin screw 1300mm  Wood Plastic Composite WPC Profile Extrusion Line With twin screw 2300mm  Wood Plastic Composite WPC Profile Extrusion Line With twin screw 3300mm  Wood Plastic Composite WPC Profile Extrusion Line With twin screw 4
