110mm Agricultural PE Water Supply Pipe Machine  sanitary grade

110mm Agricultural PE Water Supply Pipe Machine sanitary grade

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJ single screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package,also can be wooden case if needed
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC,PP,PE Motor Power: 15-55kw
Dimension: It Depends Application: Pipe
Voltage: 220V,380V Or Customized Motor Brand: Simens
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: One Year
High Light:

110mm water supply pipe machine

,

110mm pe pipe extrusion line

,

siemens motor pe pipe Extruder

Product Description

20-110mm agricultural use water supply plastic pipe machine PVC,PP,PE pipe



Application

1. Urban tap water pipe network system

Large diameter PE pipe is sanitary, non-toxic and non scaling. It is more suitable for urban water supply mains and buried pipelines, with safety, sanitation and convenient construction.

2. Agricultural irrigation pipeline

PE pipe has smooth interior, large flow, cross road construction and good impact resistance. It is an ideal tool for agricultural irrigation.

3. Industrial material pipeline

Chemical industry, chemical fiber, food, forestry, pharmacy, light industry, papermaking, metallurgy and other industrial raw material transmission pipelines.

4. Greening water supply network

Landscaping requires a large number of water pipes. PE pipes have good toughness and low cost, making them the best choice.

5. Sewage discharge pipe

PE pipe has unique corrosion resistance and can be used in industrial wastewater and sewage discharge pipeline with low cost and maintenance cost.



Advantages

The screw adopts a comprehensive mixing part with stop and mixing melting head, and the new slotted cylinder has good performance

Methods of plasticization and mixed melting. It ensures fast extrusion speed and good performance. Equipped with special extruder and marking machine, PE large diameter thick wall pipe die adopts the latest screw or basket technology to ensure stable and reliable extrusion. Water film lubrication and water seal cooling system are adopted to meet the material requirements of PE. Ensure the stability of diameter and roundness when producing thick wall pipes at high speed. The specially designed multistage vacuum cooling device and special high-pressure cooling system ensure the extrusion of large-diameter and high-pressure polyethylene pipes. According to the pipe specification, the puller includes three jaw, four jaw and six jaw pullers. The ultra precision speed regulation system is adopted, and the operation is stable and reliable. The cutting tool adopts planetary cutting tool, which is controlled by computer with a high degree of automation and avoids a long maintenance cycle. High density polyethylene pipe machine



Features

1. It is controlled by computer system and operated by touch screen, with stable production process, convenient operation, high efficiency and energy saving.

2. The feeding, selection and ordering, conveying and insertion, pipe extrusion, drilling and rolling of the emitter can be completed synchronously with a high degree of automation.

3. The extruder screw and barrel are made of high-quality 38CrMoAlA Steel. After ion nitriding treatment, the surface hardness can reach hv850-1000. The screw adopts optimized design, the extruded material is plasticized evenly and the pipe surface is smooth.

4. The extrusion die and forming cooling device are made of special materials, with unique structure and stable sizing.

5. The tractor adopts frequency conversion control, which can meet the speed requirements of different process technologies. There is a rubber protective layer on the track surface to effectively prevent the drip irrigation pipe from being stuck and deformed by the tractor.

6. The drilling machine adopts mechanical method to drill holes. It has the characteristics of fast drilling speed and good stability

activity

7. The line adopts double station plate bending machine, and the plate bending length can be set according to the actual needs.



Main Technical Parameters

Model Pipe diameter(mm) Extruder Max output(kg/h) Haul-off speed(m/min) Motor power(kw)
PE63 16-63 SJ65/33 220 12 55
PE110 20-110 SJ65/33 220 12 55
PE160 50-160 SJ75/33 300 10 90
PE250 90-250 SJ75/33 400 8 110
PE450 160-450 SJ90/33 500 5 160
PE630 315-630 SJ120/33 850 3.3 280
PE800 500-800 SJ120/33 1000 1.8 315
PE1200 710-1200 SJ150/33 1300 0.8 355

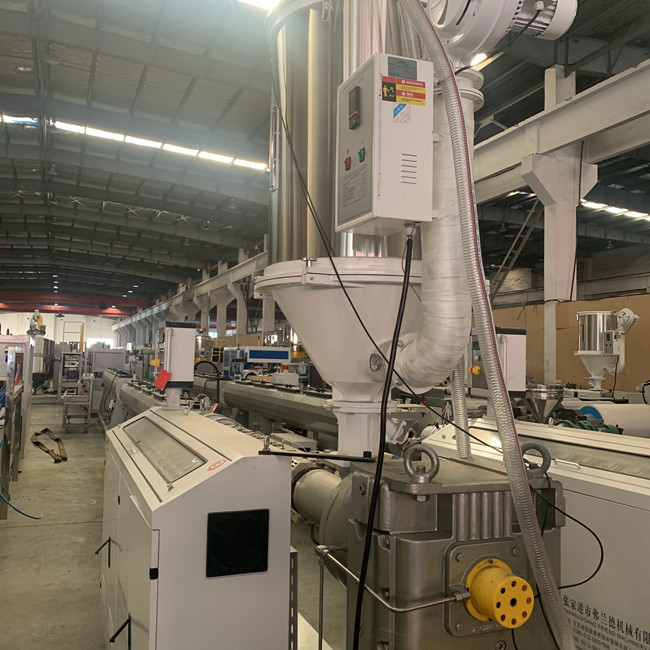

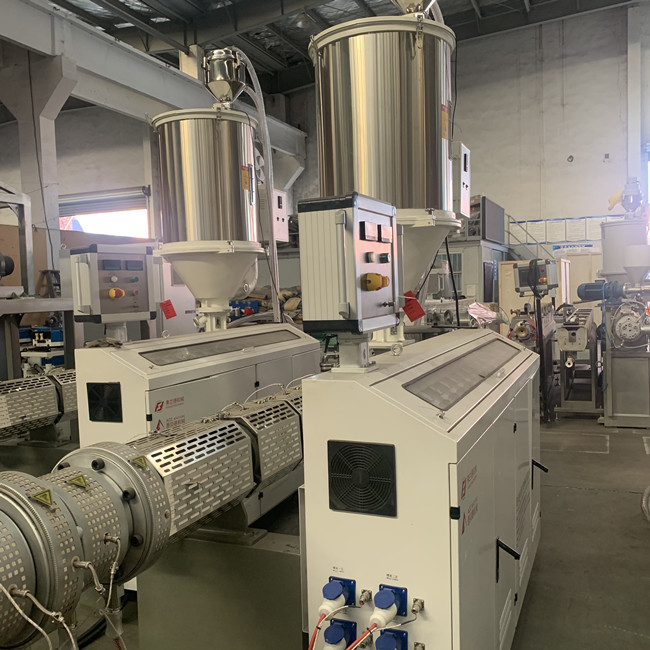

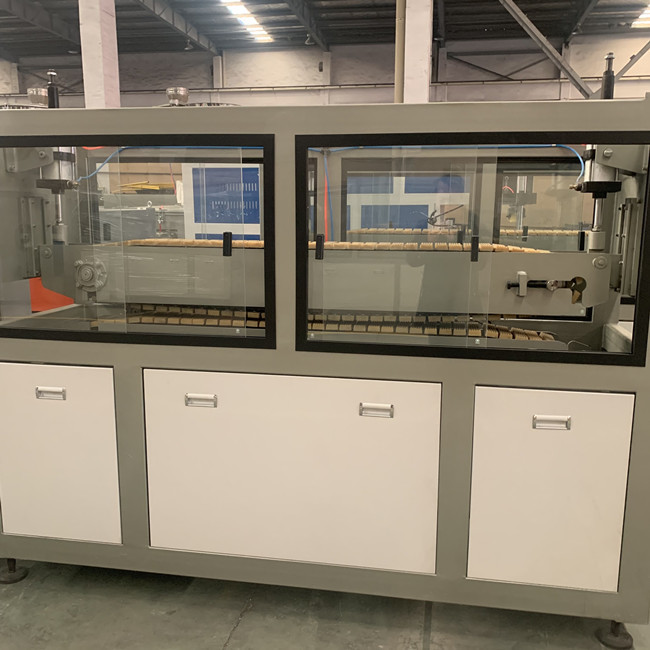

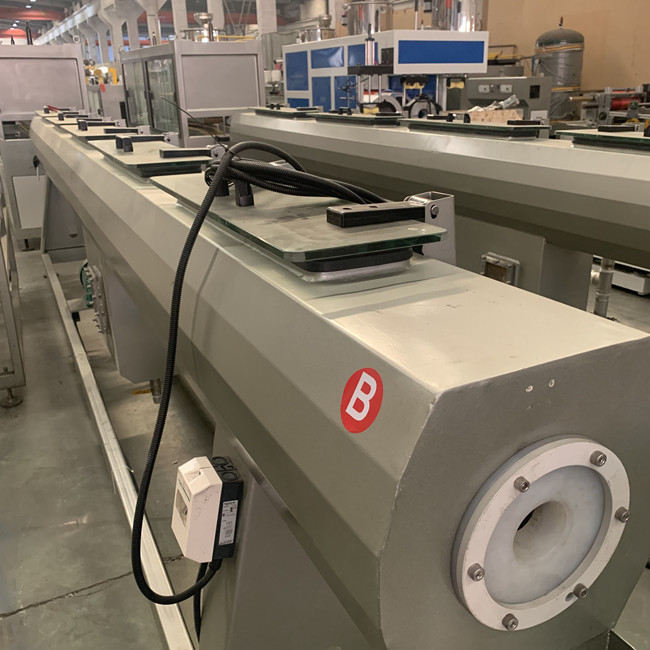

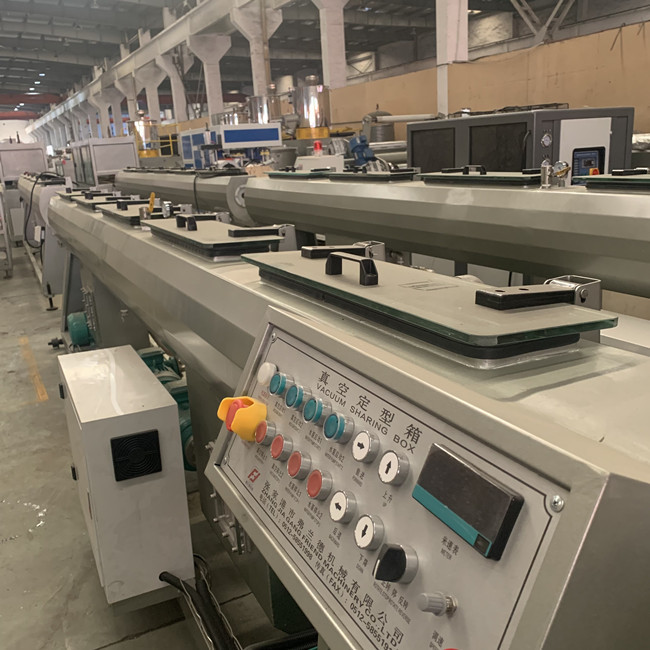

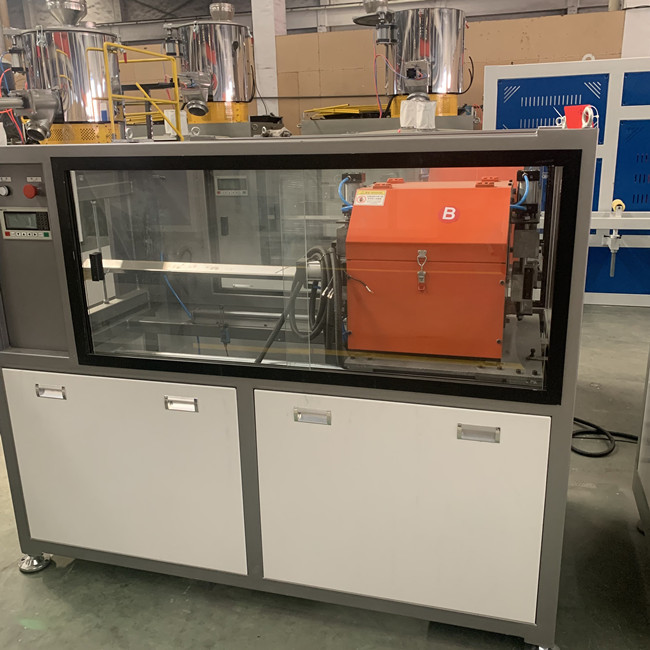

Product Pictures

110mm Agricultural PE Water Supply Pipe Machine  sanitary grade 0110mm Agricultural PE Water Supply Pipe Machine  sanitary grade 1110mm Agricultural PE Water Supply Pipe Machine  sanitary grade 2110mm Agricultural PE Water Supply Pipe Machine  sanitary grade 3110mm Agricultural PE Water Supply Pipe Machine  sanitary grade 4110mm Agricultural PE Water Supply Pipe Machine  sanitary grade 5
