PVC Window And Door Profile Making Machine / Plastic Extruding Machine
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
| Minimum Order Quantity : | one set | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | Film package or wooden package | Delivery Time : | 30 worker days |
| Payment Terms : | L/C, T/T | Supply Ability : | 30 sets per month |
| Place of Origin: | Jiangsu province,China | Brand Name: | Friend |
|---|---|---|---|
| Certification: | CE,SGS | Model Number: | SJSZ-55/110 |
|
Detail Information |
|||
| Material: | WPC Powder | Key Selling Points: | Energy Saving |
|---|---|---|---|
| Capacity: | 100-150 Kg/h | Motor Power: | 22 Kw |
| Motor Brand: | SIEMENS | Machinery Test Report: | Provided |
| Inverter: | REXROTH | Warranty: | One Year |
| High Light: | 150kg/h wpc board making machine,wood plastic wpc board production line,150kg/h wpc board production equipment |
||
Product Description
WPC Wood Plastic Double Twin Screw WPC Profile Extrusion Line Furniture Use
Details
SJSZ-65 / 132 twin screw extruder WPC wood plastic profile production line / WPC wood plastic manufacturing machine for PE and PP wood plastic profiles (CE, SGS, ISO9001:2008 - turnkey project)
Adopting a specially designed screw, cylinder, mold and production process, equipped with a series of downstream equipment, it can produce PE / PP / PVC and wood-plastic composite profiles. It is a new environmental protection green building material. WPC profiles are made of plastic, wood flour, foaming agent and other additives. After high temperature and high pressure treatment, they can be used for pallets, packaging plates, door and window frames, decorative plates, etc
Features
1. Reliable screw core circulation temperature control system to ensure the production quality of different products.
2. The traction pressure can be adjusted freely. Strong traction to meet the production needs of high-quality profiles. Traction and traction
The speed adopts remote control, and the operation is simple.
3. Unique horizontal blade feeding ensures high-quality cutting, and special alloy blade can ensure cutting quality
surface
4. Cutting and extrusion synchronizer, smooth cutting, power dust collection and environmental protection.
Advantages
1. High quality 38CrMoAlA screws are used for nitriding treatment.
2. The nitriding depth of the screw is 0.5 ~ 0.6mm, the hardness (HV) is 800 ~ 900, and the surface roughness Ra ≤ 0.8 μ M.
3. The nitriding depth of the feed hopper is 0.5 ~ 0.7mm, the hardness (HV) is more than 950, and the roughness of the inner wall RA ≤ 1.6 mm.
4. It adopts high-quality reduction box body, helical gear transmission, nitriding and polishing. The gear material of the distribution box is treated with 38CrMoAlA nitriding, and the shaft is made of 40Cr material. The thrust bearing in Harbin operates stably.
5. Main motor power: 18.5kw, production capacity: 120kg / h.
6. Roller cooling mode: air cooling. Cast aluminum heating ring is adopted.
Technical Parameters
| Model | YF108 | YF180 | YF240 | YF300 | YF400 |
| Max width(mm) | 108 | 180 | 240 | 300 | 400 |
| Extruder | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 |
| Main motor power(kw) | 18.5 | 22 | 37 | 37 | 55 |
| Production capacity(kg/h) | 150 | 200 | 250 | 250 | 350 |

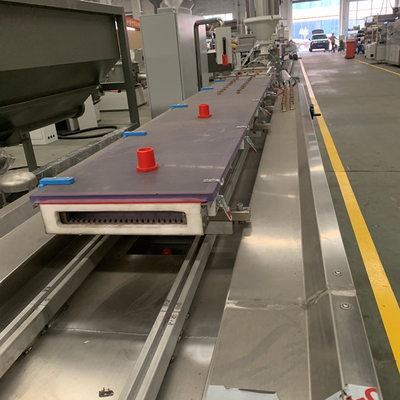

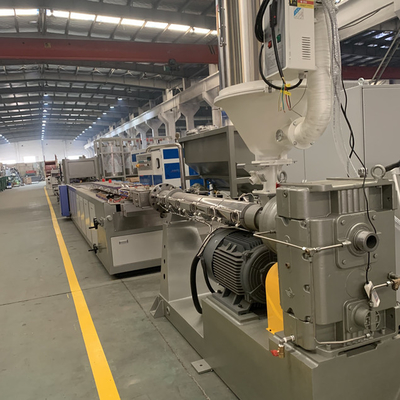

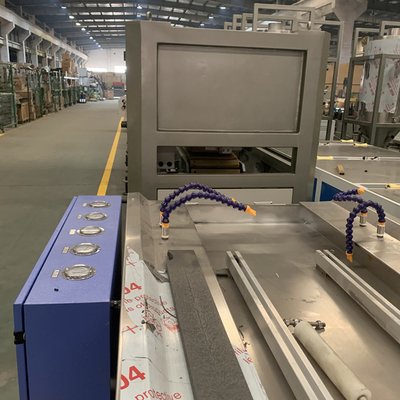

Product Pictures
