2000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film packing and wooden case Delivery Time : 30 making days
Supply Ability : 20 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJSZ51/105

Detail Information

Application: Pipe L/D: 33:1
Screw Diameter: 65mm Capacity: 150kg/h
Dimension: Customized Material: PE,HDPE
Motor: Siemens Brand Screw Design: Single-screw
Inverter: ABB Brand Warranty: 12 Months
High Light:

3 Layer HDPE Plastic Pipe Machine

,

2000mm HDPE Plastic Pipe Machine

,

2000mm Drip Irrigation Pipe Machine

Product Description

16mm-2000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine With Single Screw Extruder



Application

Drip irrigation pipe is an important irrigator in drip irrigation system,According to the requirements if crop water demand,through the low-pressure pipeline system and the irrigator installed on the capillary,water and crop nutrients need to drip into the soil of crop root area evenly and slowly,At pressent,it is the most effective water saving irrigation method in arid and water scarce areas,it can be applied to the irrigation of fruit trees,vegetables,cash crops and greenhouses.



Details

1- 30m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
2- The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3- Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
4- Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
5- High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
6- PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;
7- Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;
8- Chip-free cutter ensuing flat and smooth cutting surface of pipe.



Advantages

1.The production is stable and reliable. The emitter transmits even. The punching position is accurate. The chip can be removed easily.
2.It adopts PLC control, which is operated conveniently.
3.According to the production requirement, it can produce products with different specifications after changing the mold, conveying and punching parts.
4.Electrical components adopt domestic famous brand. The servo system adopts imported components.
5.Matched with meters alarming device.
6.It also can be used to produce common dripping pipes.



Main Technical Parameters

Components Qty(set)
Dripper transferring system 1
Automatic material feeding and drying system 1
SJ65-33 single screw extruder 1
Mold-die head 1
Vacuum water tank 1
Cooling water tank 1
Tractor(with meter counter) 1
Punching system 1
Winding machine 1
Electric cabinet 1
Spare parts 1



Extruder model Pipe meter(mm) Production capacity(kg/h) Total power(kw)
SJ50 16-63 100-150 75
SJ65 75-160 300-350 160
SJ75 200-400 600-700 280
SJ90 450-630 800-850 350
SJ120 710-1200 1200-1300 700
SJ150 1200-2000 1400-1500 1000



Product Pictures

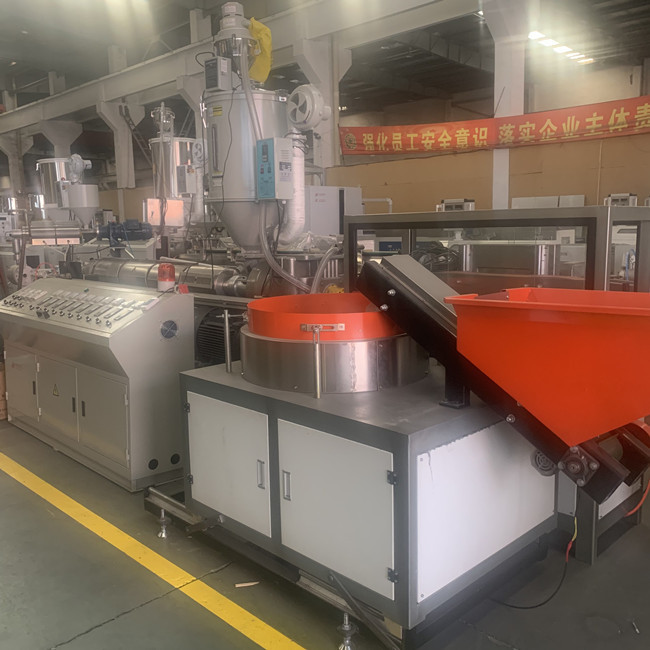

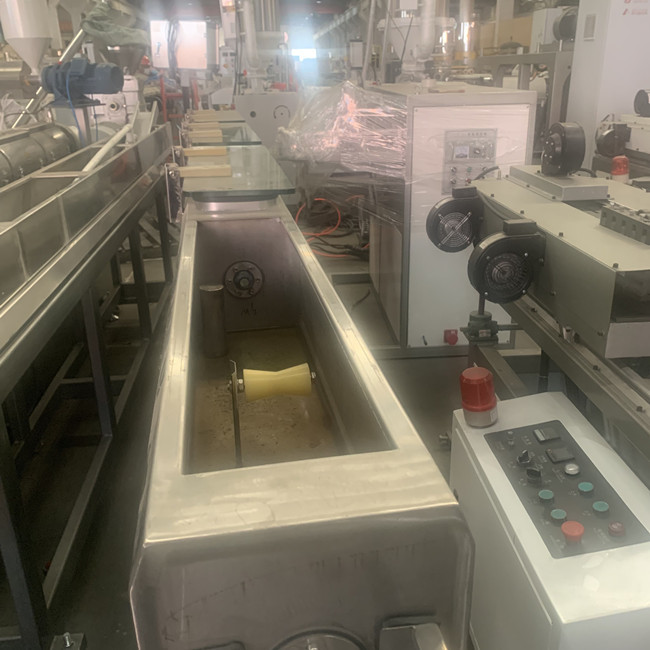

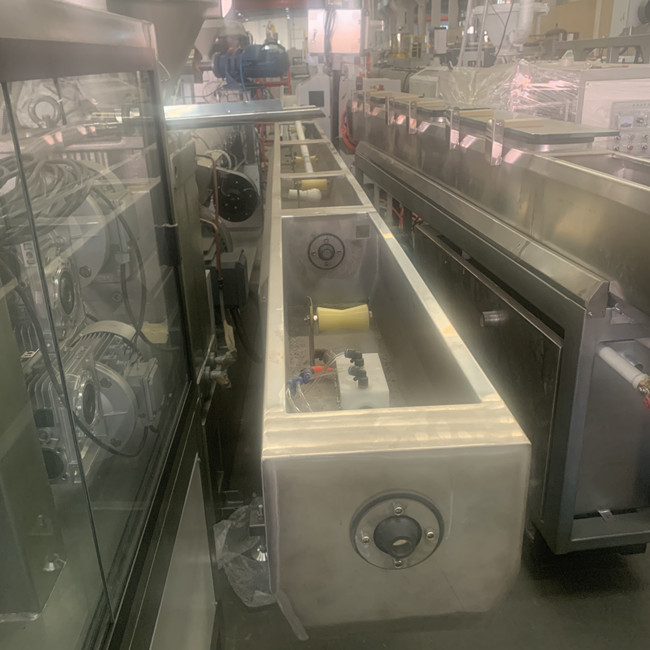

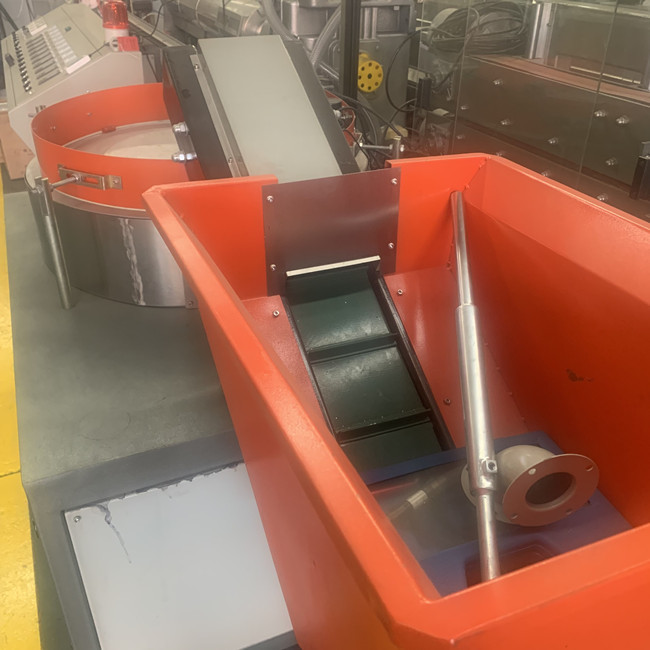

2000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine 02000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine 12000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine 22000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine 32000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine 4
