• Customized PVC Powder Plastic Pipe Machine 63mm High Output Simple Operation
Customized PVC Powder Plastic Pipe Machine 63mm High Output Simple Operation

Customized PVC Powder Plastic Pipe Machine 63mm High Output Simple Operation

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE
Model Number: SJSZ51/105,SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC Powder Warranty: One Year
Pipe Diameter: 13-63mm Capacity: 180-250kg/h
Motor Power: 18.5kw,37kw After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 380V Or Customized Color: Customized
High Light:

customized PVC Powder Plastic Pipe Machine

,

18.5kw Plastic Pipe Machine

,

63mm Plastic pipes Machine

Product Description

Plastic Environmental protection electric tube PVC double hard pipe machine



Application



This line is mainly used in produce U-PVC/C-PVC pipes which used for water supply and water drainage. This line consists of conical twin screw extruder, vacuum sizing trough, haul off machine, pipe cutting machine and collect bench.

PVC threading pipe Full name "building electrical insulation sleeve". Informally is a kind of white rigid PVC hose, corrosion resistance, prevent leakage, wear wire with pipe .

This production line is suitable for 16-63mm diameter pvc threading pipe making , making speed is 1-20m/min ( speed will be different according to different pipe size )



Features:



1. long service life

2. simple operation

3. good results

4. east maintence

5. convenient of worn-out parts



Main technical parameters:



Prjectmodel GF-50 GF- 110 GF- 160 GF- 250 GF- 400 GF- 630
Extruder SJSZ-51 SJSZ- 65 SJSZ- 65 SJSZ- 65 SJSZ- 80 SJSZ- 92
Pipe diameter range(mm) 16-40 50-110 63-160 110-250 200-400 315-630
Haul-off speed(r/min) 3-12 2-8 2-8 0.4-3 0.4-3 0.4-3
Total power(kw) 62 66 89 95 135 255
Total length(mm) 17000 18000 20000 20500 28000 30000






Production line list



This PVC double pipe production line is composed of conical twin-screw extruder,mould,vacuum forming tank, haul-off machine, automatic cutter and stacker.

No. Machine Name Quantity
1 Screw feeder 1 set
2 SJZ65/132 Conical twin screw extruder 1 set
3 Dual-pipe mould 1 set
4 Vacuum forming tank 1 set
5 Hauling-off machine 1 set
6 Automatic cutting machine 1 set
7 Stacker 1 set
Optional Auxiliary machines
1 High speed mixing machine 1 set
2 Crushing machine 1 set
3 Milling machine 1 set

































Main technical parameters:



No item date
1 pipe range 16-63mm
2 production speed 12-15m/min * 2
3 MAX output 250KG/H
4 installation size 22 * 2*2.8M
5 instalaltion power 89.5KW






Picture:

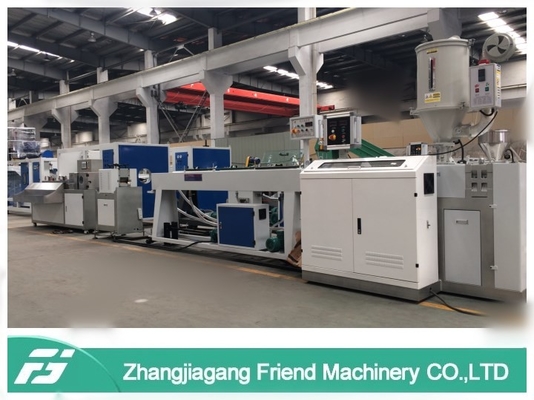

Customized PVC Powder Plastic Pipe Machine 63mm High Output Simple Operation 0
