• PE Powder WPC Profile Extrusion Production Line Conical Twin Screw
PE Powder WPC Profile Extrusion Production Line Conical Twin Screw

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw

Product Details:

Place of Origin: China, Jiangsu
Brand Name: Friend Machinery
Certification: CE ISO SGS
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 46000-54000 per set
Packaging Details: film package or wood case
Delivery Time: 35 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Screw Design: Double-screw Voltage: Customized
Condition: New Application: Profile
Plastic Processed: WPC Name: Wpc Decking Extrusion Machine/ Wpc Decking Making Machine
High Light:

PE Powder WPC Profile Extrusion Line

,

Conical Twin Screw WPC Profile Extrusion Line

,

WPC Profile Extrusion Production Line

Product Description

Basic Information

Raw material

PE powder

Extruder Capacity

80-120 kg/h

Max PE profile size

150×30 mm

Extrusion speed

0.5-4 meters/min

Usage

PE Floor profile



Product introduction

The wood-plastic floor extrusion line adopts the SJZ65/132 conical twin-screw extruder, which is specially used for the extrusion, plasticization and molding of PVC powder + wood powder raw materials. It has the characteristics of high output, good plasticizing effect and low energy consumption. The conical twin-screw is used to rotate outwards in opposite directions, and combined with the quantitative feeding screw to control the feeding speed, it can achieve the effect of uniform extrusion of raw materials.


At the same time, the entire production line can be equipped with Siemens, Delta and other brands of PLC automatic control systems according to customer requirements to realize the automated operation of the production line.

The shaping and cooling of the profile adopts the vacuum shaping and circulating water cooling system.

The vacuum pipe and the cooling water pipe are connected by copper live joints. While ensuring the degree of vacuum, the cooling effect can be guaranteed. The profile traction adopts the upper and lower flat block traction crawler mechanism, and can increase the heterogeneous traction rubber block to meet the traction of the profile, and will not squeeze the plate profile, thereby deforming the product.

Crawler lifting is controlled by air cylinder, which has the function of adjustable pressure, thus controlling the contact area and pressure of the crawler to the plate and profile.

The cutting machine adopts a knife-lifting cutting machine, which is controlled synchronously with the extrusion of the main machine, and has accurate cutting.


Machine List



No. Equipment name Qty
1. Screw feeder 1set
2. SJ-65/33 Single Screw Extruder 1set
3. SJ-45/30 Single Screw Extruder 1 set
4. Co-extrusion Mold 1set
5. Vacuum calibration table 1set
6. Haul-off machine 1set
7 Cutter machine 1set
8 Stacker 1set


Processing

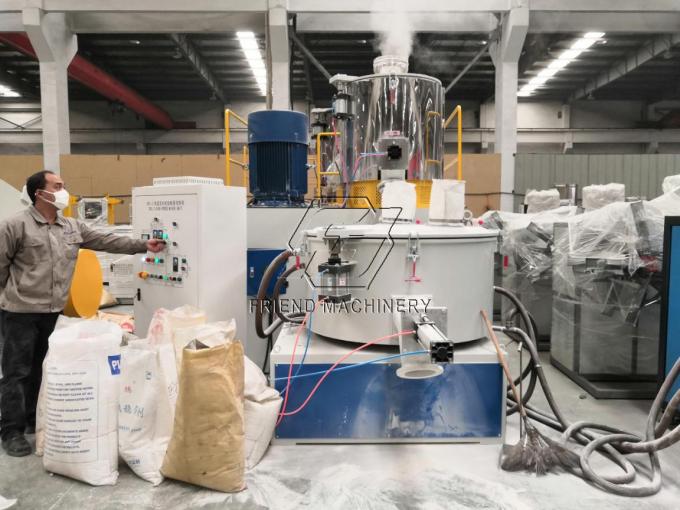

1. Put the materials into the mixing unit

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw 0

2. Put the mixing materials into the parallel twin screw extruder to composite(If the WPC floor is PVC-WPC, this step can be ignored)

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw 1

3. Materials after treatment

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw 2

4. Put the treated materials into the WPC floor profile extrusion line

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw 3

5. WPC floor decking

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw 4

6. Sanding,embossing,brushing (custom)

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw 5

7. Final prodcts

PE Powder WPC Profile Extrusion Production Line Conical Twin Screw 6
