Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: SJSZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: STANDARD WOODEN PACKAGE
Delivery Time: 35 WORKING DAYS
Supply Ability: 20 SETS PER MONTH
Get Best Price Contact Now

Detail Information

Raw Material: PVC Powder Ceiling Width: 300 Mm
Extruder: SJSZ-65/132 Connical Twin Screw Extruder
High Light:

wpc profile extrusion machine

,

wood plastic composite extrusion machine

Product Description

300-700mm PVC ceiling plastic profile production line PVC/PE/PP profile making machine



Application

PVC ceiling machine is used to produce PVC ceiling panel, PVC wall panel with width normally from 150mm to 600mm with different section shape and height. the surface of PVC ceiling panel can be treated by double color roller printing & coated with UV lacquer, or by hot stamping printing, or by lamination, which can make marble, wooden design on surface of product.



Our Advantages in PVC ceiling machine

1.Well designed well made high quality extruder with special use helical gear reducer and high efficiency converter motors, make high speed extrusion, conical double screw for PVC material;

2.Special screw structure, high shear stress and low temperature, ensure high quality plasticization;

3.High precise T-type die head, indepedent oil temperature control chromed 3-roller calender, uniform speed and high traction force NBR roller haul-off machine help making uniform thickness PVC;

4.Whole line with high degree of automation, easy to operate;

5.High quality steel materials, strict producing process make high quality line;

6.New advanced energy saving technology, lowered energy consumption;

7. It can make different design with on line PUR coating and lamination system, it is our advantage.



Machine process

Mixer → extrusion → surface treatment (including three types: two color printing, hot stamping, and lamination)

According to our formula(main raw material is PVC resin and caco3), raw materials are mixed in the mixer and tranported to the extruder. Through the PVC ceiling extrusion line, panel forming. It you adopt hot stamping and lamination, after extrusion line, your product is finished, But if you adopt two color printing, you can print it offline in the printing machine.



PVC ceiling description

Description Parameters
Product size customized
Material PVC powder+ additives
Production line speed 0.5-1.5m/min
Max. output 150-240kg/h
Overall dimensions 25m×2.5m×3m (L×W×H)
Weight(Approx) 13T
Total installed power 120kw
Actual energy consumption power 80kw
Gas consumption 0.4m3/min
Air pressure 0.6mpa
Water circulating device 0.5m3/min
Electric condition 380V/3P/50Hz
Water supply Water used for industry, no impurities, by filtrating, water pressure: 0.4mpa water temperature14~25°C
Work environment temperature 0-40°C

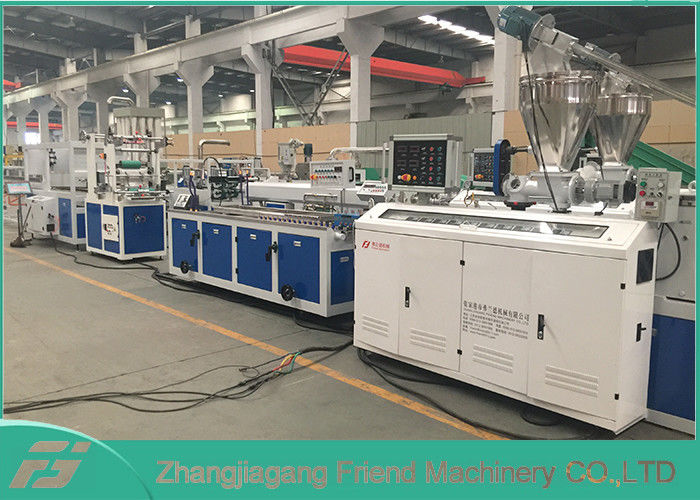

Machine pictures

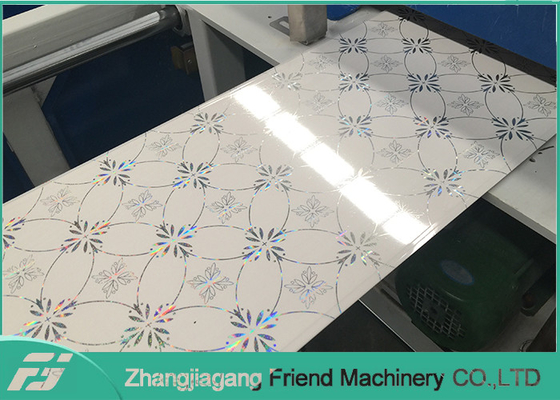

300-700mm Pvc Ceiling Panel Making Machine , PVC / PE / PP Wpc Production Line 0

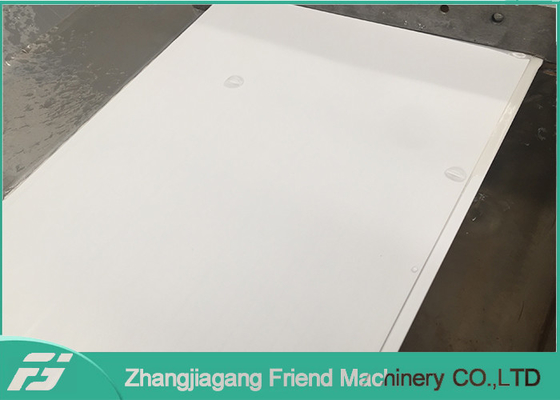

300-700mm Pvc Ceiling Panel Making Machine , PVC / PE / PP Wpc Production Line 1

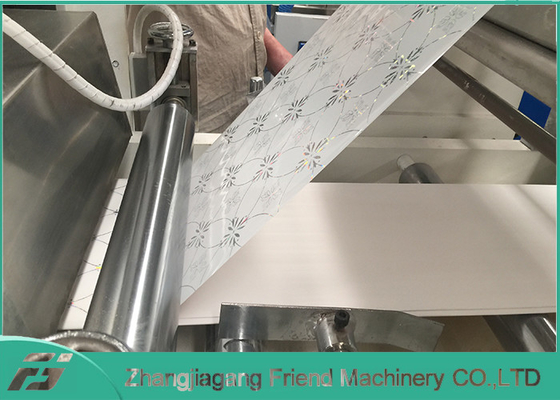

300-700mm Pvc Ceiling Panel Making Machine , PVC / PE / PP Wpc Production Line 2
