Single Wall Corrugated Plastic Pipe Machine For 13-63mm Tube Easy Operation

Single Wall Corrugated Plastic Pipe Machine For 13-63mm Tube Easy Operation

Product Details:

Place of Origin: China
Brand Name: FRIEND
Certification: CE
Model Number: SJ45 Single screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: negotiation
Packaging Details: Film Package, also can be wooden package if needed
Delivery Time: 25 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC PP PE Granule Main Motor Power: 15kw
Capacity: 25-40kg/h Control: Manual Or PLC
Person: 1-2 People Warranty: One Year
Delivery Time: 25 Working Days After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

pvc hose making machine

,

tube extruder machine

Product Description

Plastic PVC single wall corrugated pipe extrusion machine for 13-63mm



1. PVC single wall corrugated pipe extrusion machine can be used to produce small diameter(13-63mm) single wall corrugated pipes.
2. Corrugated pipes with smooth inside and outside surfaces, and even ripple are extruded once at a time.
3. End produces can be used as wires and cable passing pipes, washing machine drain pipes, dust collector pipes and ventiducts.



APPLICATION:They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.



Technical Parameters:

Pipe Diameter 9-32 mm 16-63 mm
Main Extruder SJ-45 SJ-65
L/D 28:1 30:1
Output kg/h (kg/h) 40 80
Main Motor (KW) 15 18.5
Corrugator Power (KW) 1.5 2.2
Mould Block Pairs 44 44
Line Speed (m/min) 6-12 6-12





Feature of single wall corrugated pipe machine

This series single wall corrugated pipe machine can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.



Use of single wall corrugated pipe

The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

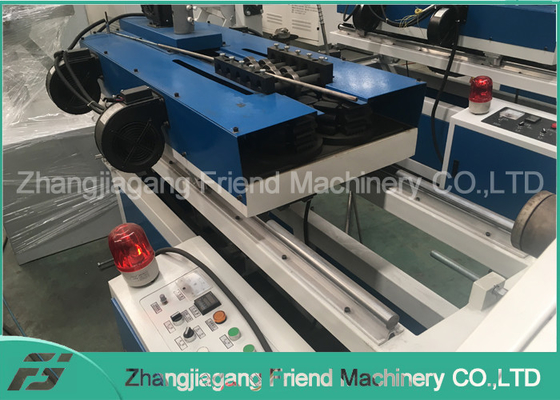

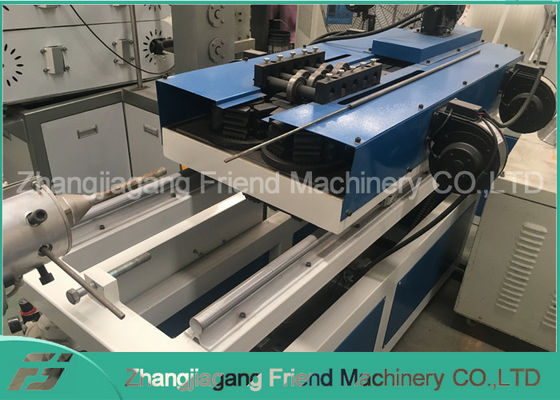

Single-wall corrugated pipe machine developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.

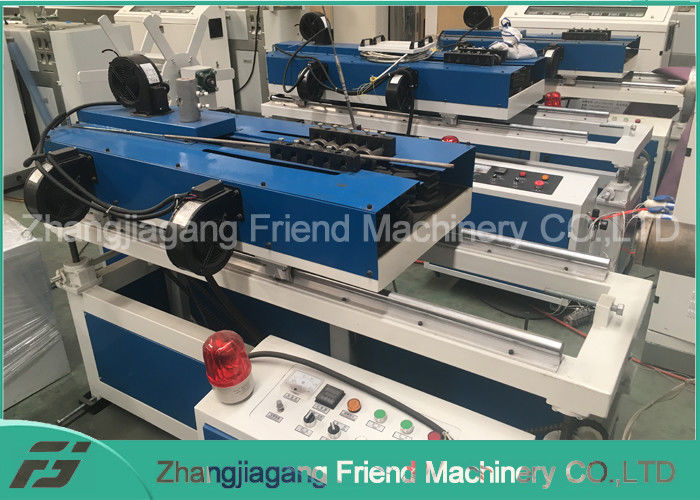

Single Wall Corrugated Plastic Pipe Machine For 13-63mm Tube Easy Operation 0
