Single Shaft Plastic Grinding Machine / Durable Wood Shredding Equipment

Single Shaft Plastic Grinding Machine / Durable Wood Shredding Equipment

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: ZSSS-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden package
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Motor Power: 37 Kw Motor Brand: Siemens Beide
Control: PID Blade Material: SKD-11
High Light:

plastic shredder machine

,

plastic grinding machine

Product Description

ZSSS-600 single shaft shredder Plastic crusher machine Plastic/wood shredding equipment



Application

Single shaft shredder is strong and durable. It is mainly used to shredder and recycle all kinds of solid material and refractory material, plastic containers , barrels and so on. Shredder particles can be as small as 20mm according to different needs.

The machine with big feeding mouth, it can put the big plastic or rubber product freely. We can also supply feeding hopper with different specification. This machine will be low noisy and energy saving.

Knife material: Cr12MoV( Japanese brand SKD-Ⅱ, American brand D2), the moving knife adopts ‘ V ‘ installation method, making it cut more uniformly, reducing consumption and noise. There are 4 cutting blades on each moving knife. It can be rotated 90° for further use after wear and tear; There are 2 cutting blades on each fixed knife. It can be rotated 180°for further use after wear and tear. The knifes on rotor can be disassembled, it is more easy to clean and maintain.

The main shalf is driven by gear reducer so that it is has stable operation, low noise and large torque.The reducer is a very important part of the shredder machine. Although the shredder is a machine with low rotating speed and large torque, the reducer is still important because of its high kinetic energy so that the rotating speed can be controlled effectively.

PLC progamm conrol system, automatic forward and reverse running and stop, it can run full automaticlly and make it more safely and reliablely running.

We can supply different rollers according to different material. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller.

We have designed three different knives holders according to the material, such as welded knife holders, assembled knife holders and CNC cutting knife holders.

Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet, control panel, screen, roller, knives holder, ect.

After shreddering, the dimension of most large plastic or other material will reduce 30%, some material dimenison after shreddering can up to 50%.
(We have arranged many videos. Please contact us freely if you need.)



Technical parameters



Model Unit ZSSS600 ZSSS800 ZSSS1000 ZSSS1200
Cutting chamber C/D mm 1410×800 1410×1000 1410×1200 1410×1500
Cylinder Stroke mm 900 900 900 900
Rotor Diameter mm φ390.3 φ390.3 φ390.3 φ390.3
Main Shaft Speed r/min 74 74 74 74
Screen Mesh mm φ40 φ40 φ40 φ40
Rotor-knives pcs 42+4 54+4 66+4 90+4
Stator-knives pcs 2 2 2 3
Main Motor Power kw 37 45 55 75
Hydraulic Motor Power kw 2.2 2.2 5.5 5.5
Weight kg 3500 4000 5000 6200

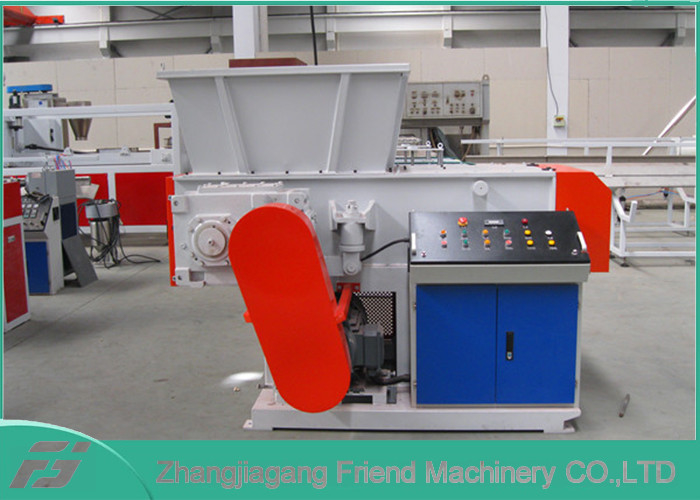

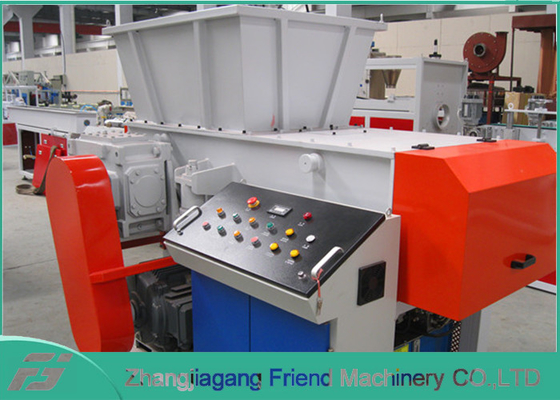

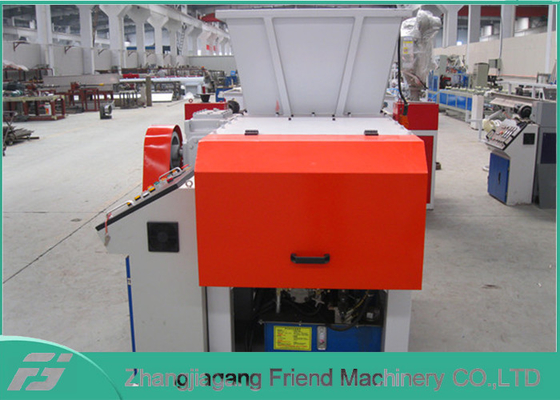

Machine pictures

Single Shaft Plastic Grinding Machine / Durable Wood Shredding Equipment 0
