PLC Program Control Plastic Crusher Machine 45kw Low Energy Consumption

PLC Program Control Plastic Crusher Machine 45kw Low Energy Consumption

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: ZSSS-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: STANDARD WOODEN PACKAGE
Supply Ability: 20 SETS PER MONTH
Get Best Price Contact Now

Detail Information

Motor Power: 45kw Motor Brand: SIEMENS BEIDE
Control: PID Blade Material: SKD-11
High Light:

plastic shredder machine

,

plastic grinding machine

Product Description

Big plastic block/tyre/metal shredder plastic crusher machine ZSSS-800 shredder machine shredding equipment



Application

  • It is a widely used type of machine. It consists of a single, solid shaft with square blades bolted into it. This shaft rotates at about 74-83 RPM, depending on the model, and these blades pass through a bed knife on the base of the cutting chamber. A hydraulic ram continually pushes the material against the shaft of the shredder for continuous cutting. It is an ideal machine for plastics, paper, wood, fiber, rubber, organic waste a wide variety of non metallic materials.
  • The size of the machine required for each project depends on the initial size of the material, capacity and the final particle size desired.
  • Plastic shredder is almost always used with a screen, which retains the material in the cutting chamber to reduce the material even further. The standard cut on a single shaft shredder is 25-40mm.
  • Its Application
  • It is our conventional range of small to medium size single shaft shredders. Controlled by microcomputer (PC), featuring start, stop, reverse functions. It is fitted with an automatic overload return mechanism to prevent damage to rotor and other parts. Suitable for processing a wide range of materials including: Plastic lump/purging, Plastic boards, Circuit boards, Plastic barrels, Wood, Fibre, Rubber, Films.



Features

  • Shaft, moving blades, fixed blades, reducer, motors, feeding hopper, discharge port, electric control cabinet, control panel, screen, roller, knives holder, ect.
  • After shreddering, the dimension of most large plastic or other material will reduce 30%, some material dimenison after shreddering can up to 50%.
  • Characteristics of single shaft shredder machine/shredding machine:
  • Low noise, low energy consumption
  • Unique power design, detachable, and convenient for cleaning, maintenance and service
  • PLC program control, safe and reliable utilization
  • Double shaft shredder machine/ two shaft shredding machine:
  • Various massive materials (machine head material, thick-wall and big-caliber plastic pipes), plastic film (LDPE agriculture film, PP woven bags etc), wood, aluminum cans, book/paper/carton box, etc.

Technical parameters



Model ZSSS600 ZSSS700 ZSSS800 ZSSS1000 ZSSS1200 ZSSS1500S
Main motor power 20-30kw 30-37kw 45-55kw 55kw 75kw

90-132kw

or 55kw+55kw

Moving-blades(pcs) 26+4 34+4 43+4 49+4 64+2 90+4
Fixed-blades(pcs) 4 4 4 4 4 6
Material of blades

Cr12MoV/

SKDII/DS2

Cr12MoV/

SKDII/DS2

Cr12MoV/

SKDII/DS2

Cr12MoV/

SKDII/DS2

Cr12MoV/

SKDII/DS2

Cr12MoV/

SKDII/DS2

Roller diameter(mm) 240 260 400 400 500 500
Main shaft speed(r/min) 45-90 45-90 45-90 55-80 55-75 55-75
Cutting Chamber 600*600 700*600 810*800 1000*1000 1200*1100 1500*1200
Hydraulic motor power(kw) 2.2 2.2 3 4 5.5 7.5
Cylinder strock(mm) 600 600 800 1000 1100 1200
Dimension(mm)

1780*1400

*1800

1780*1540

*1850

2400*1600

*2000

3000*2000

*2200

3500*2300

*2200

3600*3000

*2400

Height of

discharge port(mm)

600 600 700 800 800 800
Weight(kg) About 2000 About 2300 About 3500 About 4500 About 6500 About 7500

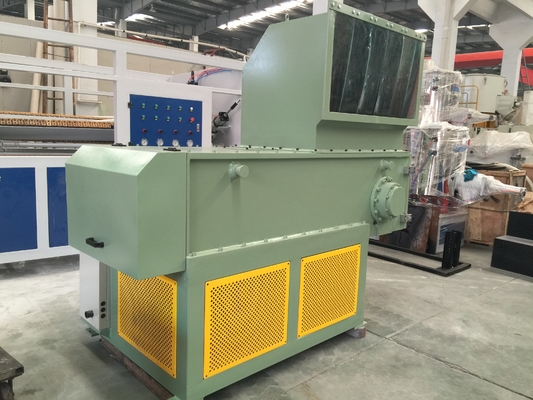

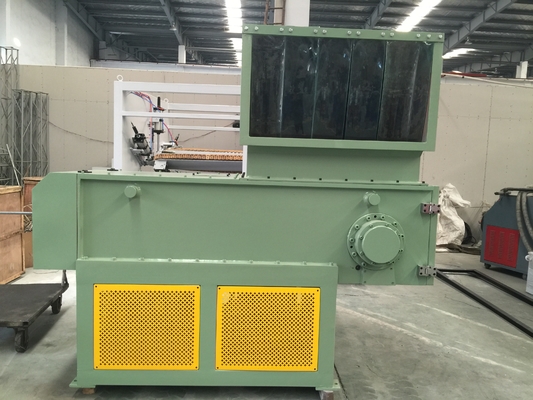

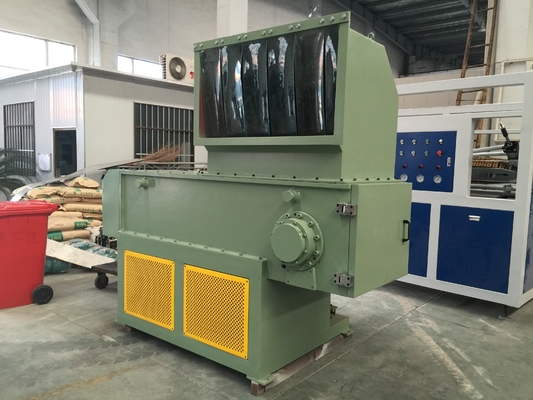

Machine pictures

PLC Program Control Plastic Crusher Machine 45kw Low Energy Consumption 0



PLC Program Control Plastic Crusher Machine 45kw Low Energy Consumption 1
