TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking

China TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking supplier
TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking supplier TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking supplier TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking supplier TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking supplier

Large Image :  TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: SJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Standard wooden package
Delivery Time: 3 working days
Supply Ability: 20 SET PER MONTH
Contact Now
Detailed Product Description
SIZE: 25~50 Mm Shape: Can Be Customized
Motor Power: 15 Kw Product Name: Pvc Production Line

Soft PVC/TPU/TPR/TPE strip extruder plastic profile production line SJ-45 extruder machine



Application


PVC Profile Making Machine is widely used in refrigerator, ice chest, drinking machine, beverage box, sanitizing cabinet, kitchen appliances and other kinds of cold and seal industry.
By adopting the foreign and domestic advanced technology, we successfully developed the small profile extrusion line. This line consists of Single Screw Extruder, Vacuum Calibration Table, Haul-off Unit, Cutter and Stacker, the producing line features of good plasticization, high output capacity, low power consumption and etc. The main extruder speed controlled by imported AC inverter, and temperature control by Japanese RKC or FUJI temperature meter, vacuum pump and traction gear reducer of the down stream equipment are all good quality products, and also easy maintenance.

Technical parameters

Mode Screw Dia.

Length to

diameter

Rotational

Speed of screw

Height of center point Capacity

Power

Drive motor

SJ-3-/25CY 30mm 25:1 10-160r/min 1000mm 19.5kg/h 2.2kw,3kw
SJ-45D 45mm 20:1 10-90r/min 1000mm 22.5kg/h 5.5kw
SJ-45/25CY 45mm 25:1 16-160r/min 1000mm 35kg/h 7.5kw,11kw
SJ-45/28CY 45mm 28:1 16-160r/min 1000mm 40kg/h 7.5kw,11kw
SJ-45/25HY 45mm 25:1 16-160r/min 1000mm 35kg/h 11kw
SJ-50/25HY 50mm 25:1 16-160r/min 1000mm 40kg/h 11kw,15kw
SJ-65/25HY 65mm 25:1 8-80r/min 1000mm 100kg/h 18.5kw
SJ-65/28CY 65mm 25:1 15-120r/min 1000mm 100kg/h 18.5kw,22kw
SJ-65/28HY 65mm 28:1 16-160r/min 1000mm 120kg/h 22kw,30kw
SJ-65/30CY 65mm 30:1 15-120r/min 1000mm 120kg/h 22kw,30kw,37kw
SJ-65/34CY 65mm 34:1 15-120r/min 1000mm 120kg/h 22kw,30kw,37kw
SJ-70/25HY 70mm 25:1 8-80r/min 1000mm 120kg/h 22kw
SJ-90/25HY 90mm 25:1 10-100r/min 1000mm 155kg/h 30kw,45kw,55kw
SJ-120HY 120mm 25:1 30-90r/min 1000mm 250kg/h 75kw


Machine configuration

Item Machine name quantity
1. Single screw extruder 1set
2. Mould 1set
3. Vacuum forming table 1set
4. Haul-off machine 1set
5. Cutting machine 1set
6. Stacker 1set
7. Water chiller Optional


Pre-sale service
1. Our principle is to give customers peace of mind,such as making investment budget, manufacturing planning, training operation staff,etc. so that customers make a reasonable plan with less cost.
2. Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting
3. Plant Planning: We provide the mounting dimension of the equipment base, design of equipment layout, workshop ventilation, water transmission etc.


In-sale service
1. Detailed design of lay-out that is the position of the procession
2. Technological information of provided products
3. Schedule about design,manufacturing and installation
4. Working & Producing progression


After-sales service
1. The supplier provide service manual and maintenance instruction of main electric appliance,limb,usage manual of equipment.We also supply water,electricity,gas of equipment and installation drawing.
2. The supplier is responsible for installation,debugging and training, but the air tickets,insurance,eating,housing and every day 50 USD for each engineer will be payed by the buyers.
3. Fittings of the machine will be supplied at preferential price after one year.

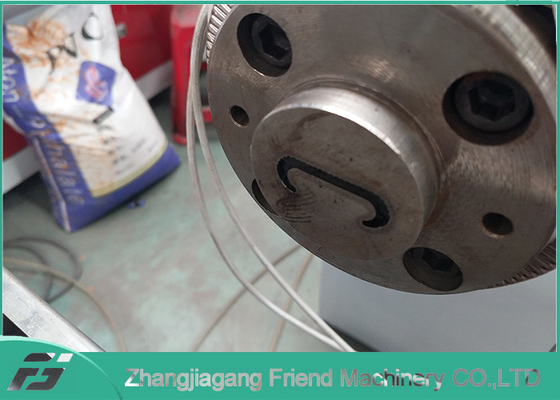

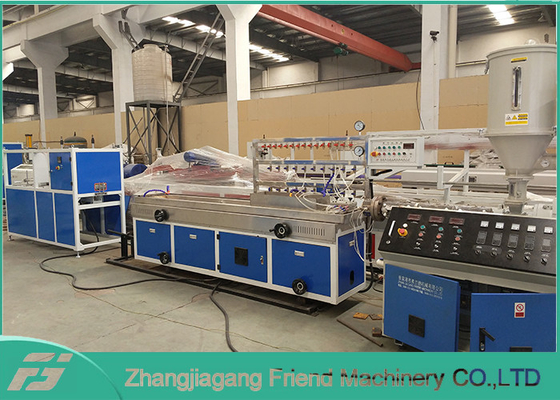

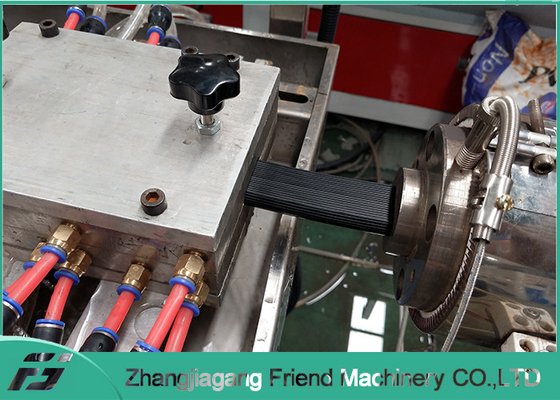

Machine pictures
TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking

TPU / TPR / TPE PVC Plastic Profile Making Machine For Ceiling and Decking
