250mm Width Pvc Ceiling Production Line , Pvc Ceiling Panel Making Machine

Minimum Order Quantity : 1set Price : negotiation
Packaging Details : film covered packing Delivery Time : 20-40making days
Supply Ability : 10-15 sets per year
Place of Origin: Jiangsu province,China Brand Name: Friend
Certification: CE,SGS,TUV Model Number: SJSZ

Detail Information

Application: PVC Buckle Plate Extrusion Raw Material: PVC Powder
Motor: Siemens Brand Inverter: ABB Brand Or HOLIP Brand
Contactor: SIEMENS Brand Warranty Time: 365 Days
Color: Optional Motor Power: 18.5-45kw
High Light:

pvc ceiling panel making machine


pvc ceiling panel extrusion machine

Product Description

250mm Width Plastic PVC Buckle Plate Extrusion Production Line



Applications :

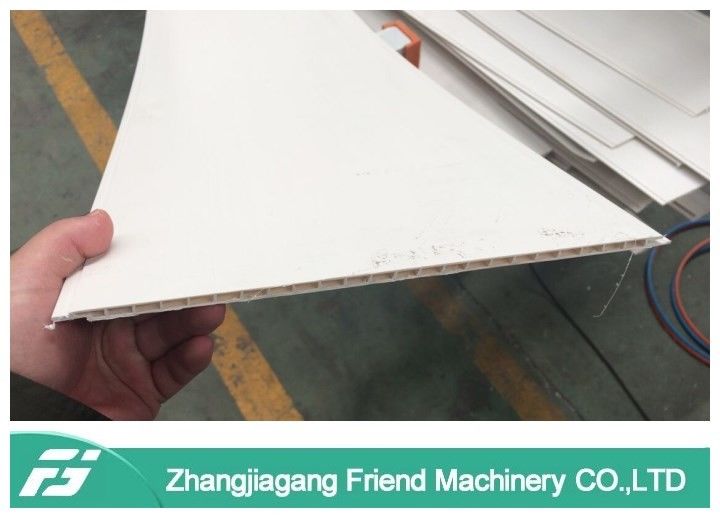

PVC gusset plate is the top material of PVC gusset. It is made of polyvinyl chloride resin as base material, adding a certain amount of anti-aging agent, modifying agent and other auxiliaries, and has been made by mixing, rolling and vacuum absorbing etc.
The PVC gusset plate condole supports especially suitable for kitchen, toilet condole top adornment, light quality, moisture proof, heat insulation, nonflammable, no dust, easy to clean, can finish, easy to install, and low price.
Machine Feature:
This customized pvc Buckle Plate ceiling panel extruding machine can mainly be used to manufacture window profile, door profile, ceiling and wall panels, and other irregular shape pvc material profile widely used in home internal decoration.
This upvc window and door machine can be designed according to the requests of clients.

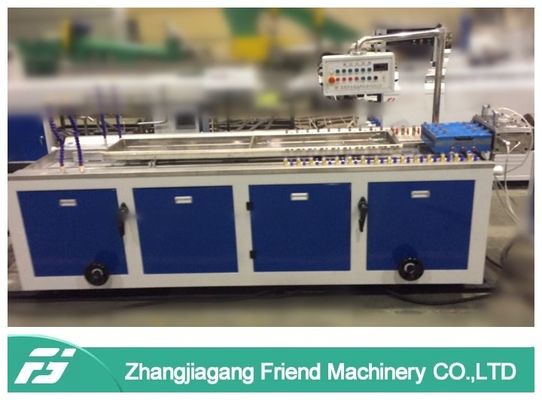

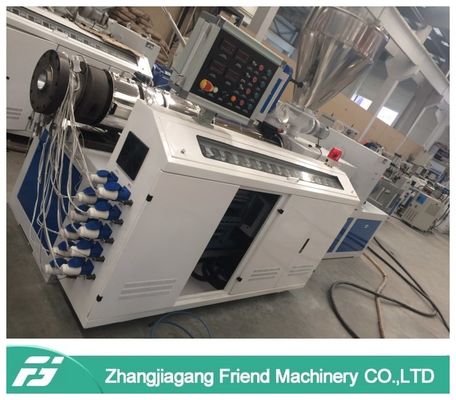

This pvc window and door , clapboard profile extrusion machine consists of SJSZ65132 conical twin screw extruder, 3m length vacuum forming platform, 1.5m caterpillar track drawing machine, automatic cutting machine, mold, stacking rack. ( pvc panel crusher , pvc milling machine , pvc hot and cold mixing unit ,screw loader and other auxilliary machines  also could be provided )

Machine technoical parameters:
tem SJSZ-45 SJSZ-51 SJSZ-55 SJSZ-65 SJSZ-80 SJSZ-92
Diameter of screw (mm) 45/90 51/105 55/110 65/132 80/156 92/188
Number of screw 2 2 2 2 2 2
Direction of screws Screw rotation direction
Screw rotation speed (rpm) 1-45 1-45 40 1-35 1-37 1-33
Effective length of screw (mm) 985 1070 1200 1440 1800 2500
Power of main engine (kw) 15 18.5 30 37 55 90
Barrel heating power (kw) 12 18 18 24 36 55
Production capacity (kg/h) 120 150 180-200 250-300 320-400 600-800
Center height (mm) 1000 1000 1000 1000 1000 1200
Net weight (kg) 2800 3200 3500 4000 5000 8000
250mm Width Pvc Ceiling Production Line , Pvc Ceiling Panel Making Machine 0

250mm Width Pvc Ceiling Production Line , Pvc Ceiling Panel Making Machine 1250mm Width Pvc Ceiling Production Line , Pvc Ceiling Panel Making Machine 2



1. Q: If I need the machine urgently, what will you do?
A: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.
2. Q: If my machine can not work when I receive it, what will your factory do?
A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.
3. Q: If my machine is broken within one year, what your factory will do?
A: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.
4. Q: How can I believe your factory and machines.
A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
5. Q: How many days needed to finish the machine and what is about the payment?
A: Normally we use T/T payment. And normal machine need 30 working days. If we have the same machine in storage, it can be finished with 7 working days.
