55kw WPC Board Production Line Wpc Sheet Machine Anti Chemical Corrosion

Minimum Order Quantity : 1 SET Price : negotiation
Packaging Details : Standard wooden package Delivery Time : 50 working days
Supply Ability : 10 set per month
Place of Origin: JIANGSU, CHINA Brand Name: FRIEND
Certification: CE Model Number: SJSZ-80/156

Detail Information

Board Width: 1240 Mm Extruder: SJSZ-80/156
Motor Power: 55 Kw Material: PVC+ Wood
Motor Brand: Siemens Inverter: ABB
High Light:

wpc extruder machine


wood plastic composite production line

Product Description

SJSZ-80/156 PVC wood composite board machine WPC board production line 1240 width WPC board machinery



  • The WPC door board/plastic wood door board is usually assembled by WPC door board, WPC door frame/profiles. During production, the ingredient is mainly include PVC powder, wood powder, and other additives. For suiting versatile needs, the WPC door board can be designed into many styles.
  • With special designed screw ,barrel, mould and production process ,equipped with series downstream equipment ,this can produce PE /PP/ PVC and wood-plastic composite profiles.This is a new kind of environmental freindly building material. WPC profiles is produced by mixing the plastic ,wood powder ,foam agent and other additives, after high temperature and high pressure ,the products can be used for pallets ,packing plates ,windows and door frames ,decoration panels etc.

Machine features

  • Screw with special mixing and plastic function;
  • Coat hanger type die with two throttle design enable to regulate the sheet thickness vertical or 45°incline type three rollers may be lifted freely;
  • Sheet thickness shall be regulated by screw and pressing roller;
  • Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness;
  • Exact slicing machine, board length and quantity;
  • Winder with big torque motor, and its speed and tension force adjustable;
  • Automatic metering to set the length of product.The main technique parameter
  • Width of sheet : 400-2000mm Thickness of sheet: 0.2-50 mm
  • Production Capacity: 30-600kg/HProduction line speed: 25M/Min
  • Light weight,good tenacity, high rigidity
  • Fireproof and flame retardant
  • Good insulation
  • No sopping, no deformation
  • Easily to processed
  • Good plasticity, being an excellent thermoform material
  • Sub-light surface and elegant vision
  • Anti-chemical corrosion
  • Suitable to silk screen printing
  • With imported dyes, unfading and anti-aging

Technical parameters


Model YF600 YF800 YF1000
Max.width of product(mm) 600 800 1000
Extruder mode SJZ80/156 SJZ80/156 SJZ92/188
Extrusion capacity(kg/h) 280 280 600
Motor power(kw) 55 55 132
Cooling water(cubic meter per hour) 10 12 15
Compressed Air (cubic meter per minite) 0.6 0.8 1.0

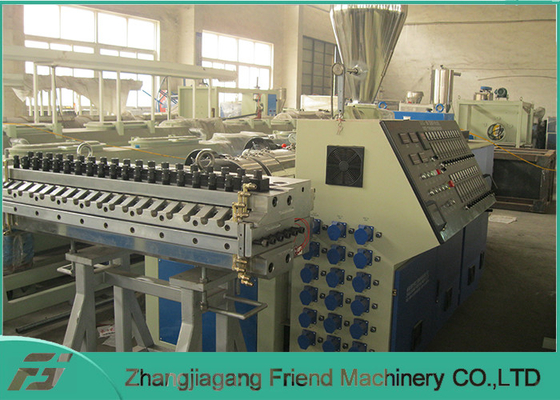

Machine pictures

55kw WPC Board Production Line Wpc Sheet Machine Anti Chemical Corrosion 0
