Stable Running Wood Plastic Composite Production Line 8~20mm Thickness

Stable Running Wood Plastic Composite Production Line 8~20mm Thickness

Product Details:

Place of Origin: JIANGSU, CHINA
Brand Name: FRIEND
Certification: CE
Model Number: SJSZ-80/156

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Standard wooden package
Delivery Time: 50 working days
Supply Ability: 10 set per month
Get Best Price Contact Now

Detail Information

Board Width: 1240 Mm Extruder: SJSZ-80/156
Motor Power: 55 Kw Material: PVC+ Wood
Motor Brand: Siemens Inverter: ABB
High Light:

wpc extruder machine

,

wood plastic composite production line

Product Description

1240mm width SJSZ-80/156 WPC door board extruder WPC board production line Thickness 8~20mm



Application

It is designed for producing various sizes of plastic composite products,such as WPC profiles,WPC board,WPC decorate panel. Our WPC machine has features of low consumption,low noise,stable running..

This WPC machine include:extruder,mould,vacuum calibration table,haul-off machine,cutter and stacker.

The extruder of WPC machine adopt special wpc screw and barrel for extrusion.With different mould,WPC machine can produce wpc products with different shapes.



Features

PVC/WPC door board extrusion line is mainly used in PVC door & window profile material,wide door plate,window plate,extrusion of multi-holes pipe for passing through lines(four holes,six holes,seven holes nine holes,etc). For different sectional surface and molds,twin parallel(conical) screws extruder of different specifications can be chose together with corresponding vacuum calibrating table,haul-off unit,cutting unit,titer,etc.
PVC/WPC door board extrusion line's Capacity of main frame can ba optionally chosen from 60-700kgs/hour. PVC/WPC door board extrusion line's haul-off unit has applied unique lift technique of our company.PVC/WPC door board extrusion line work is stable,PVC/WPC door board extrusion line reliability is good,PVC/WPC door board extrusion line pulling force is large.
PVC/WPC door board extrusion line's Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.
Movement speed and drawing speed of cutting machine keep synchronous. All movements are controlled by import PLC,the design is reasonable, the operation is stable,it can conduct automatic cutting with fixed length. Powder & dust suction device can be provided. With different molds,the tilter platform can choose such specification as 4-meter,6-meter,8-meter,11-meter,etc.With twin parallel screws extruder,PVC/WPC door board extrusion line is particularly suitable for high speed extruding of profiled material.



Technical parameters

Model Unit SJSZ80/156 SJSZ92/188 SJSZ80/156, SJ65/132
Product width mm 1220 1600 1600-2050
Product thickness mm 3-20 5-30 3-20
Max. extrusion capacity Kg/h 350 500 600
Power of extruder KW 75 110 120



Our service

1. We not only provide machines but also offer technical guide and market evaluate.
2. We will provide all the machines for the complete production according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer.

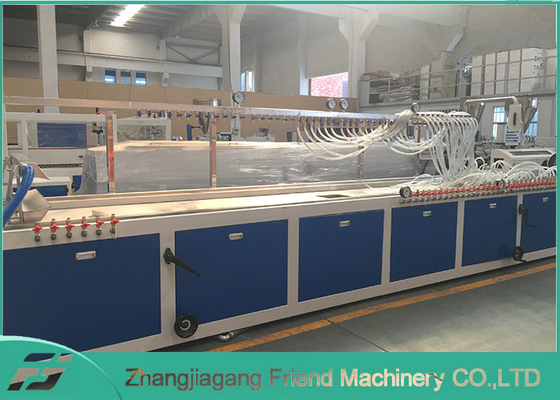

Machine pictures

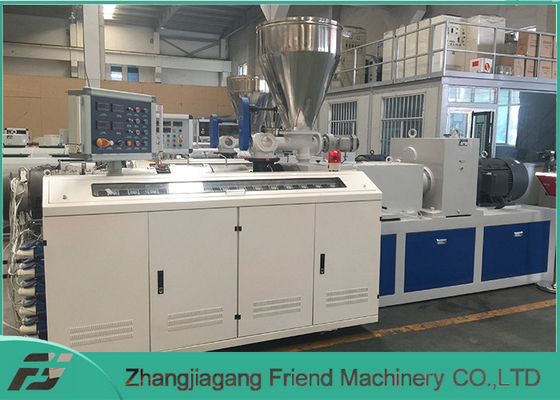

Stable Running Wood Plastic Composite Production Line 8~20mm Thickness 0

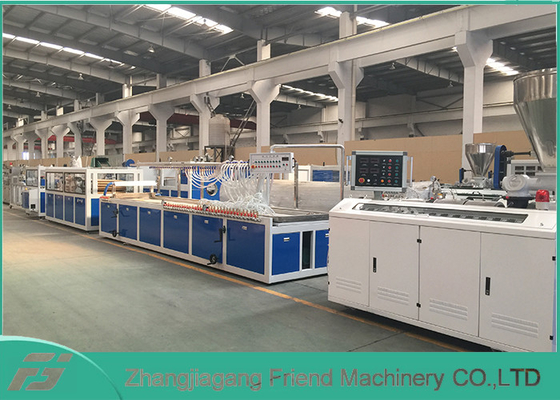

Stable Running Wood Plastic Composite Production Line 8~20mm Thickness 1
