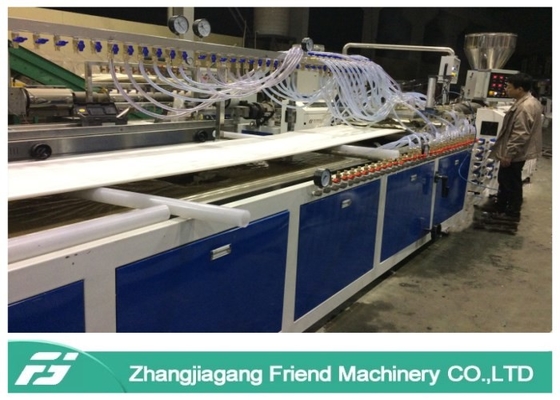

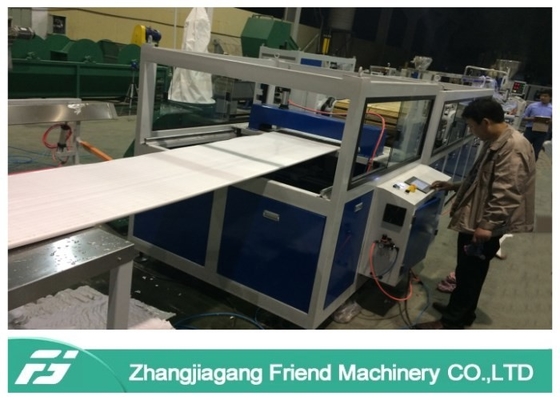

Double Screw Wpc Extruder Machine , Wpc Door Production Line High Output

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : film packing and wooden case Delivery Time : 30 making days
Supply Ability : 20 sets per year
Place of Origin: Jiangsu,China Brand Name: Friend
Certification: CE,SGS,UV Model Number: SJSZ65/132

Detail Information

Condition: New Screw Design: Double-screw
Raw Material:: Wpc Powder Motor:: SIMENS
Warranty:: 15 Months Inverter:: ABB Brand
High Light:

wpc board making machine

,

wpc extruder machine

Product Description

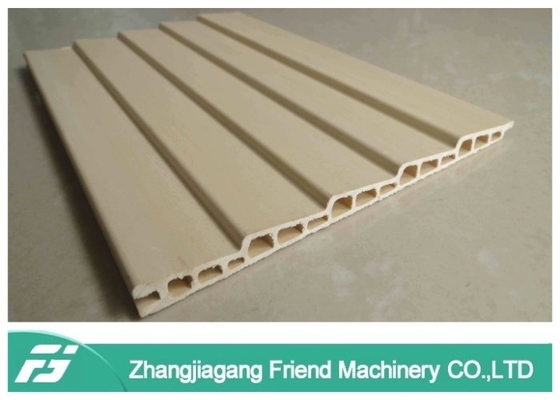

WPC foamed plate production line/wood plastic door/board extrusion line



Description:



Wood plastic: the use of polyethylene, polypropylene and PVC, etc., instead of the usual resin adhesive, with more than 35% to more than 70% of the wood powder, rice husk, straw waste plant fiber blend into a new wooden material, then through extrusion, plastic mold, injection molding processing, production of the sheet or shaped.Mainly used in building materials, furniture, logistics packaging and other industries.The plastic and wood powder is mixed with a certain proportion of the plate, which is formed by hot extrusion, which is called extruded wood plastic laminated sheet.



Wood - plastic composite material contains plastic, and thus has a good elastic modulus.In addition, because it contains fiber and is mixed with plastic, it has the properties of anti-pressure, anti-bending and other physical mechanical properties of hardwood, and its durability is obviously better than that of ordinary wood materials.The surface hardness is high, usually 2 to 5 times of wood.

Performance of wood plastic:



1. The product is the same as the log processing performance, can be nails, drilling, cutting, bonding, with a nail or bolt connection, surface smooth, no need for sanding and painting, the paint adhesion is good, can also according to individual be fond of painting.

Isonitrile



2. The products have better physical properties than log, is better than wood dimensional stability, noise can produce crack, warp, no wood knots, twill, add colorant, coated or composite surface can be made into various products, colorful so need regular maintenance.



3. We can provide a variety of specifications, sizes, shapes, thickness and other requirements. This also includes providing a variety of designs, colors and wood grain products to give customers more choices.



4. The products are fireproof, waterproof, corrosion-resistant, moisture resistant, not worm-eaten, not long fungi, acid and alkali, non-toxic, pollution-free and other excellent performance, maintenance costs are low.



5. Product use has a similar wooden appearance, which is higher than plastic hardness and long life. It can be hot and plastic, with high strength and energy saving.



6. Product quality, light weight, heat preservation, smooth surface, free of formaldehyde and other harmful substances, free of toxic and pollution-free.



Main composition of machine

Item Quantity
1.twin screw extruder one set
2.Nosae and Die mould one set
3.Vacuum forming unit one set
4.Haul-off unit one set

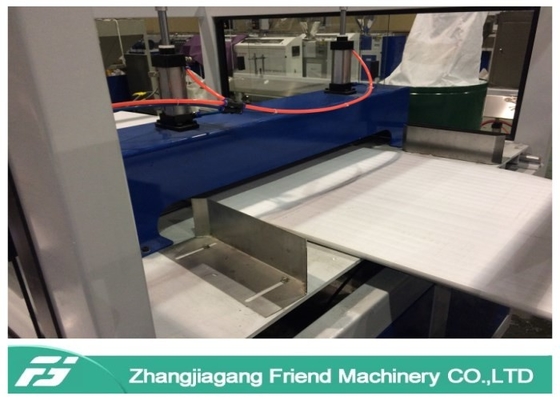

5.Cutting unit one set
6.Stacker one set
7.Electric control system one set
8.Spare parts list one set





technical paramete of PVC profile making machine

Specifications SJZ65 SJZ80 SJZ92
Diameters of screws(mm) 65/132 80/156 92/188
Speed of screws(r/min) 1-38 1-36.9 1-34.7
Effective length of screws(mm) 1440 1800 2500
Main motor power(Kw) 37 55 110
Barrel heating power(Kw) 24 36 88
Production capacity(kg/h) 250 360 1000
Center height of machine(mm) 1000 1000 1000
Net weight(kg) 4000 5000 5500



Double Screw Wpc Extruder Machine , Wpc Door Production Line High Output 0

Double Screw Wpc Extruder Machine , Wpc Door Production Line High Output 1

Wood plastic: the use of polyethylene, polypropylene and PVC, etc., instead of the usual resin adhesive, with more than 35% to more than 70% of the wood powder, rice husk, straw waste plant fiber blend into a new wooden material, then through extrusion, plastic mold, injection molding processing, production of the sheet or shaped.Mainly used in building materials, furniture, logistics packaging and other industries.The plastic and wood powder is mixed with a certain proportion of the plate, which is formed by hot extrusion, which is called extruded wood plastic laminated sheet.

Wood - plastic composite material contains plastic, and thus has a good elastic modulus.In addition, because it contains fiber and is mixed with plastic, it has the properties of anti-pressure, anti-bending and other physical mechanical properties of hardwood, and its durability is obviously better than that of ordinary wood materials.The surface hardness is high, usually 2 to 5 times of wood.



Performance of wood plastic:

1. The product is the same as the log processing performance, can be nails, drilling, cutting, bonding, with a nail or bolt connection, surface smooth, no need for sanding and painting, the paint adhesion is good, can also according to individual be fond of painting.

Isonitrile 2. The products have better physical properties than log, is better than wood dimensional stability, noise can produce crack, warp, no wood knots, twill, add colorant, coated or composite surface can be made into various products, colorful so need regular maintenance.

3. We can provide a variety of specifications, sizes, shapes, thickness and other requirements. This also includes providing a variety of designs, colors and wood grain products to give customers more choices.

4. The products are fireproof, waterproof, corrosion-resistant, moisture resistant, not worm-eaten, not long fungi, acid and alkali, non-toxic, pollution-free and other excellent performance, maintenance costs are low.

5. Product use has a similar wooden appearance, which is higher than plastic hardness and long life. It can be hot and plastic, with high strength and energy saving.

6. Product quality, light weight, heat preservation, smooth surface, free of formaldehyde and other harmful substances, free of toxic and pollution-free.
