High Accuracy Control System Pvc Ceiling Panel Production Line Quick Maintenance

High Accuracy Control System Pvc Ceiling Panel Production Line Quick Maintenance

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJSZ51/105 twin screw extruder

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: negotiation
Packaging Details: Film package or wooden case package if needed
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Material: PVC Powder Production Name: Pvc Wall Panel Production Line
Feature: PLC Control System Application: Profile
High Light:

pvc ceiling panel making machine

,

pvc ceiling panel extrusion machine

Product Description

PVC Ceiling Panel Extrusion Line / PVC Ceiling Panel Extruder Machine



Application:



The PVC ceiling panel making machine equip with the SJSZ51/105 conical twin screw extruder , converter control system , OMRON temperature control unit , it has wide control range , accuracy temperature control and easy to operate , the auxiliary equipments consist of vacuum calibration mould & platform, hauling off machine, hot stamping machine or laminating machine , cutting machine, stack machine ,etc.

PVC ceiling panel production process : the screw feeder feed the raw materials to the mixer unit , after mix enough and the temperature reach the set temperature , the hot mixed raw materials will discharge into the cooling mixer automatically , then the spring feeder feed the mixed raw materials into the twin screw extruder , after plasticizing , extrusion and calibration , the ceiling panel will come out from the mould and follow into the cooling equipment , via the synchronous hauling off machine , the ceiling panel enter the cutter , the cutter equip with the meter counter , it can cut different size according to the set length automatically .

The PVC ceiling panel making machine equip with the PLC control system , easy operate and accuracy control system , for the new investor customers , would supply the complete turn-key service , such as the capital budgets , workshop design , raw material supply and technology training . also after the production line run smoothly , we also supply the long-term technology support .

PVC ceiling panel is wide used in the house decoration , office decoration , kitchen room , washing room decoration , it’s environment-friendly raw materials and can be recycled use , it’s has wide market prospect .



Technical Parameter:

Model

Product dimension

(w×h)mm

Extruder model output(kg/h)

Max speed

(m/min)

Install power

(kw)

Main motor power(KW) Length of line(m)
SJYF-180 180×60 SJSZ51/105 80-120 6 55 22 23
SJYF-240 240×120 SJSZ65/132 140-180 4 76 37 27
SJYF-600 600×120 SJSZ80/156 300-400 6 100 55

30







Feature:

1. Self-fire extinguishing, non-flammable.
3. It is impenetrable by insects or termites, and won′ t rot or rust.
4. Resistance to weather/ special chemicals; Waterproof / Washable.
5. The excellent rigid and superior impacted surface is without any peeling.
6. Natural wood grain: Showing authentic wood structure and artistic sense.
7. Easy to be cut, drilled, nailed, sawed, and riveted. DIY is all right.
8. Quick maintenance and no need of painting.
9. The simple and fast installation can save a lot of time and manpower cost.





Picture:

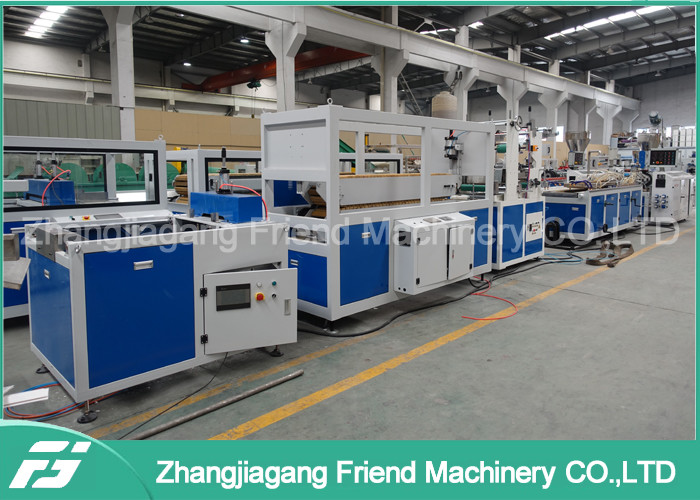

High Accuracy Control System Pvc Ceiling Panel Production Line Quick Maintenance 0
