Easy Operation Pet Strap Making Machine , Pet Strap Production Line

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : Standard wooden package Delivery Time : 50 days
Supply Ability : 10 sets per month
Place of Origin: JIANGSU, CHINA Brand Name: FRIEND
Certification: CE Model Number: SJ-75

Detail Information

Application: PET Packing Strap Raw Material: PET
Extruder: SJ-75 Motor Power: 45 Kw
Motor Brand: Siemens
High Light:

pet strap making machine

,

blown film extrusion line

Product Description

PET packing strap machine plastic profile production line 20mm width PP/PET packing starp extruder

Application

  • The features of line are as follows: screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; gearbox with hardened gears; die can be precisely adjusted to ensure stable production and smooth surface of straps; stainless steel cooling trough with four thermo treatment processes displaces the traditional one; haul off rollers with bigger size ensure the quality of products; new rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; laser embossing roller makes clear and even patterns.
  • PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

Features

  • Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.
  • Process 100% recycled PET bottle flakes.
  • Even plasticization and stable extrusion with PLC automatic control for the full line.
  • As per different requirements, changing a coating materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
  • Melt filter with two pistons with air venting design and back flushing.
  • Number of strap:1,2,4,6,Width: 9mm-20mm,Thickness: 0.6mm-1.5mm
  • Workers: 2 -3 workers per shift, 12 hours/shift.

Machine configuration

NO.Equipment nameQty
1SJ-75/30 single screw extruder1set
2Automatic feeding machine with hopper drier1set
3Mould for pp twin straps1set
4Cooling water tank1set
5First haul off1set
6Hot air stretching oven1set
 Resistance reverse rack1 group
7Second haul off1set
8Embossing device1set
9calibrating water tank1set
 Dehydrator1 set
10Four position winder1set
11Electrical control system1 set
12Spare parts, as per spare parts list1set
13Technical files designed by our technical team1set


Packing strap introduction

TypeWidth (mm)Thickness (mm)Drawing power of rift (N)Strength power of rith %
095559.50.551920<12
1056010.50.602310<12
12060120.602640<12
12062120.622730<12
12560120.602750<12
14060140.603080<12
16060160.603520<12<
16080160.804690<12
16090160.905280<12
19090190.905860<12

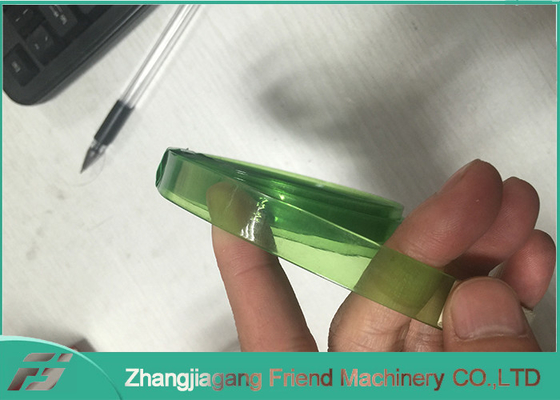

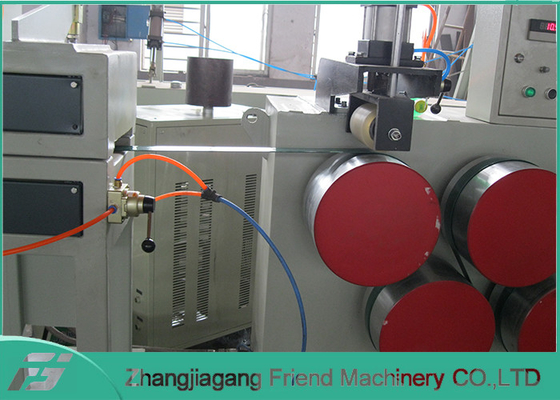

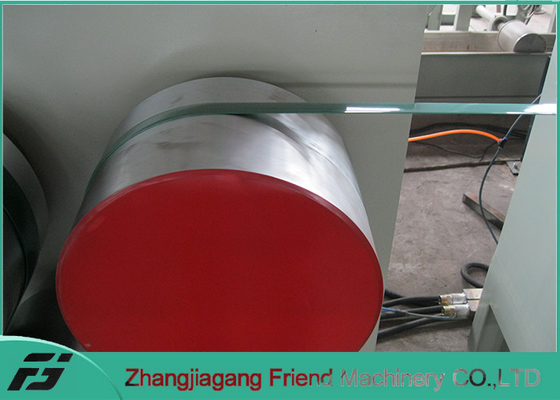

Machine pictures
Easy Operation Pet Strap Making Machine , Pet Strap Production Line 0
