45kw Plastic Profile Production Line / Pet Strap Extrusion Line 12mm Width

45kw Plastic Profile Production Line / Pet Strap Extrusion Line 12mm Width

Product Details:

Place of Origin: JIANGSU, CHINA
Brand Name: FRIEND
Certification: CE
Model Number: SJ-75

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden package
Delivery Time: 50 days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Application: PET Packing Strap Raw Material: PET
Extruder: SJ-75 Motor Power: 45 Kw
Motor Brand: Siemens
High Light:

pet strap making machine

,

blown film extrusion line

Product Description

PP/PET packing strap production line plastic profile production line 12mm width PP/PET packing starp extruder

Application
PET/PP strap is known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; is replaced by a new high-strength steel strapping, is the worlds most widely used for steel products.

Features

  • The raw material treatment is by our CSG serious dehumidify and dryness system, it ensures the humidity in raw material less than 80PPM.
  • Closed circulation feeding system prevent the material from exposure on air to keep the dryness of raw material.
  • The screw is specially designed for PET application, it consists of separate and mixing part to keep the even plastication, also by fixed material feeding system, the extrusion is stable, which ensures the good dimension of PET strap.
  • The machine can produce 1/2/4 strap at the same time.
  • The mould is specially designed, equipped with two-stage filter.
  • Constant temperature heating device provide even cooling environment for PET strap to raise the tensile strength performance.
  • Anneal treatment for finished PET strap to remove the part remaining stress to keep good shape
  • The winder is double disk type with easy operation and coil changing.


Machine configuration

1Vacuum loader1set
2CSG2000 dehumidify dryer1set
3S90/33 single screw extruder1set
4Hydraulic screen exchanger1set
5Melt pump1set
6Mould1set
7Water tank cooling system1set
8Haul-off machine1set
9Heating oven1set
10Preheating machine1set
11Drawing machine1set
12Embossing machine1set
13Hot forming machine1set
14Haul-off1set
15Winder (double position)2sets
16Chiller1set
17Mould temperature controller2sets


Packing strap introduction

TypeWidth (mm)Thickness (mm)Drawing power of rift (N)Strength power of rith %
095559.50.551920<12
1056010.50.602310<12
12060120.602640<12
12062120.622730<12
12560120.602750<12
14060140.603080<12
16060160.603520<12<
16080160.804690<12
16090160.905280<12
19090190.905860<12

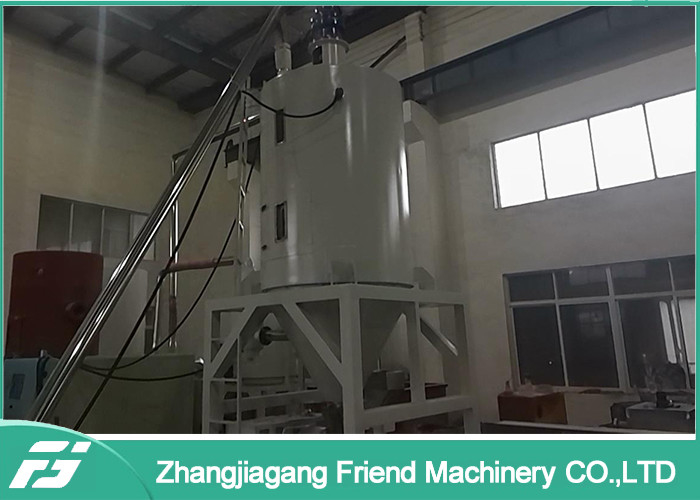

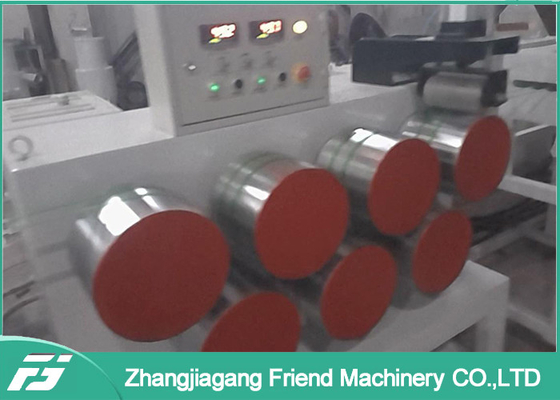

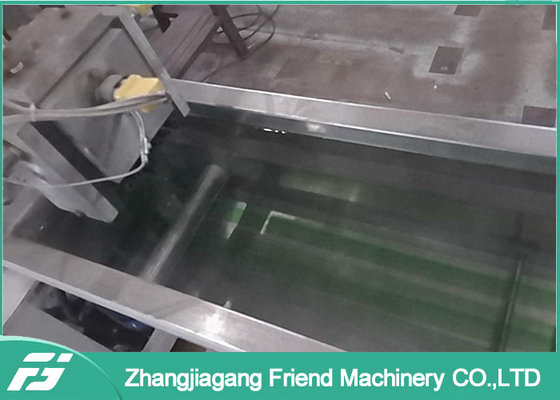

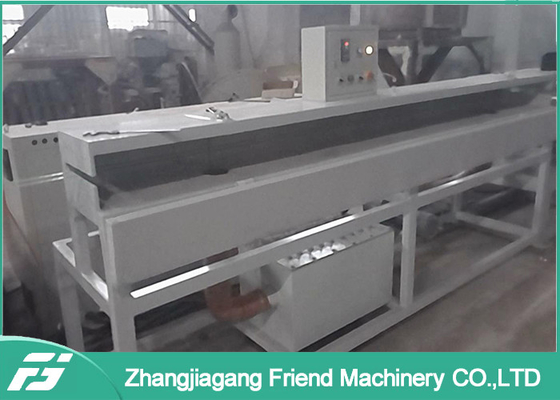

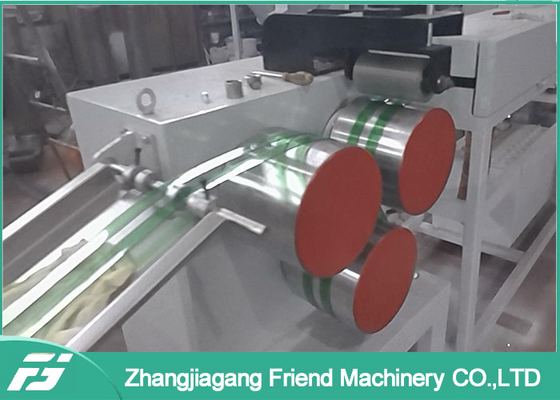

Machine pictures
45kw Plastic Profile Production Line / Pet Strap Extrusion Line 12mm Width 0
