Multi Function PVC Ceiling Panel Extrusion Line With CE / SGS / TUV Certificate

Multi Function PVC Ceiling Panel Extrusion Line With CE / SGS / TUV Certificate

Brand Name: Friend
Model Number: SJSZ51/105 double screw extruder
MOQ: one set
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Detail Information
Place of Origin:
China
Certification:
CE,SGS,TUV
Capcaity:
80-120kg/h
Warranty:
One Year
Motor Power:
18.5kw
Motor Brand:
Simens Brand
Model:
SJSZ51/105 Twin Screw Extruder
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Packaging Details:
Film package or wooden case package
Supply Ability:
20 sets per month
Highlight:

pvc ceiling panel production line

,

pvc ceiling panel extrusion machine

Product Description

UPVC Profiel Extrusion Machine for PVC Ceiling Board Production Line



Description of PVC ceiling panel extrusion machine:

PVC ceiling panel extrusion machine is mainly used to produce PVC ceiling, PVC wall panel with width of 200mm,250mm,300mm with different section shape and height. The surface of PVC ceiling can be treated by double color printing and coated with glossy oil, or by heat transfer printing, or by lamination, which can make marble, wooden design on the surface of products.



Main Advantages of this extrusion machine:

1. Speed controlled by inverter, saving power and easy to adjust speed.

2. Extruder temperature controlled by Omron intelligent controller, temperature fluctuation is self adjusting.

3. Low power consumption: power consumption of total production line can low to only 25kw/hour.



Parameter:



1. Conical twin-screw extruder, suitable for processing PVC powder and WPC raw materials.
2. Changing the moulds to produce many kinds of different PVC profiles.
3. Auxiliary machine: Mixing unit, Mould, Vacuum calibration table, Thermal transfer,Haul-off machine, Cutter and Stacker.

4.This production line is mainly used to produce PVC profile, such as Ceiling, Deck, Floor, Cornice, Plank, Windows, Door frame and board and etc.



Model 250



300



400

600
Applicable product width 160-300 160-300mm 160-300mm 400-600mm
Extruder SJSZ51/105 SJSZ55/110 SJSZ65/132 SJSZ80/156
Capacity 80-120kg/h 100-150kg/h 150-250kg/h

250-300kg/h





PVC Ceiling Panel Production Line mainly used in PVC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel(conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

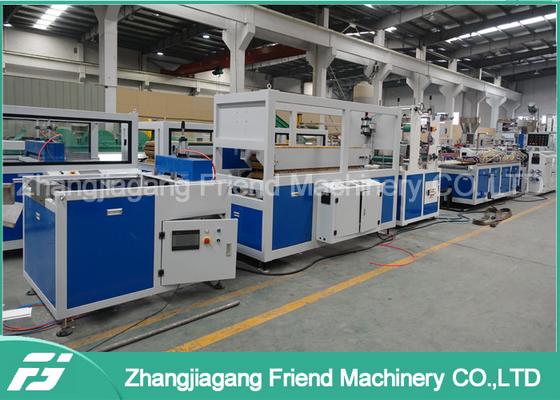

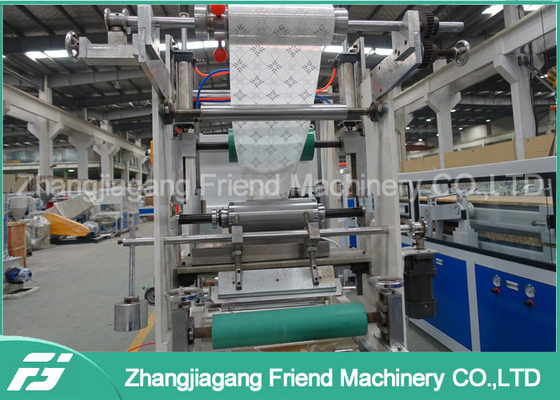

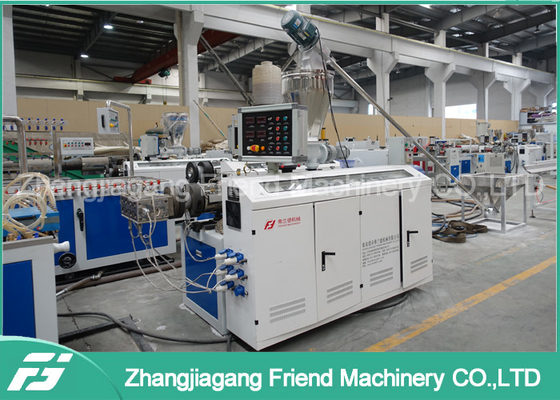

Picture:



Multi Function PVC Ceiling Panel Extrusion Line With CE / SGS / TUV Certificate 0
