ABB Inverter PVC Ceiling Panel Extrusion Line Easily Assembly OEM / ODM Available

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film package, wooden case package is extra charge Delivery Time : 30 days after receiving deposit
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 20 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE Model Number: SJSZ

Detail Information

Raw Material: PVC Powder Warranty: One Year
Product Size: 180*180mm-600*600mm Inverter: ABB
Tempurature Control: Omron After-sales Service: Engineers Available To Service Machinery Overseas
High Light:

pvc ceiling panel making machine

,

pvc ceiling panel production line

Product Description

PVC Ceiling Panel Machine/ PVC plastic pinch plate extrusion line



Machine Discription

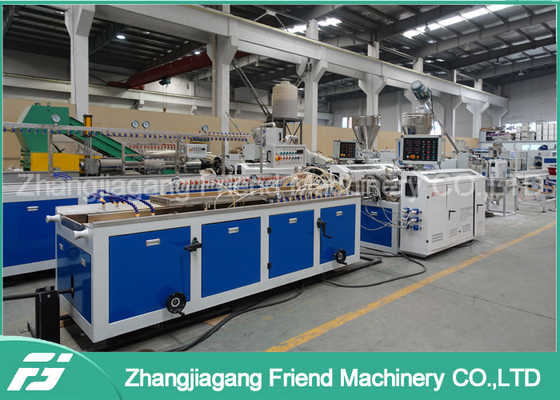

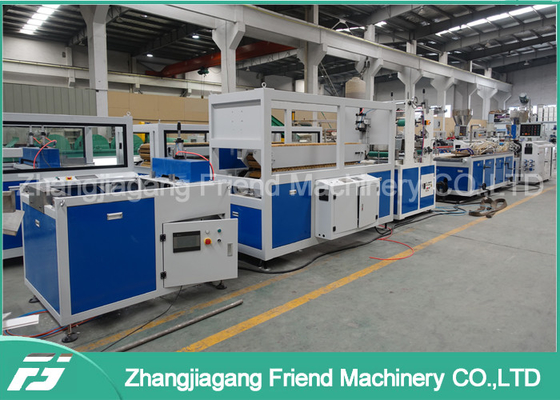

This production line adopts international technology, uses PE, PP, PVC, PS or other plastics compounding with nature fiber powder as the raw material, employs high efficiency conical twin screw extruder ,mould .vacuum calibration table ,tractor and cutter.

The profile products are popularly used as the building board, partition wall aboard, plank on storage rack and furniture board, etc.





Technical data:



1) Easily assembly and clean

2) Without gap when concatenated

3) High intensity, corrode-resisting, aging-resisting

4) Due to PVC's high chemical stability,our panels can be used more than 10 years

5) Prevent fire,water,antibiotic.

6) Harmless to human being and eco-friendly

7)For Ceiling and Wall decoration

8) Serial num of different specifications

9) Pvc content:45% 50% 55% 60%

10)Materials: PVC resin,Calcium Carbonate etc.

11)Packing:PE film packing,PVC shrink packing,carton 10pcs/bale or 20pcs/carton; Usually have logo on two sides,also can put on every side.





Technical Parameter

Model YF180 YF240 YF300 YF400 YF500 YF600
Max. width of product(mm) 180 240 300 400 500 600
Extruder model SJSZ55/110 SJSZ65/132 SJSZ65/132 SJSZ65/132 SJSZ80/156 SJZ80/156
Max. extrusion capacity(kg/h) 150 250 250 250 360 360
Extruder power(kw) 22 30/37 30/37 30/37 55 55
Cooling water(M3/h) 5 7 7 8 10 12
Compressed air(M3/min) 0.2 0.3 0.3 0.3 0.4 0.5





Advantage



1)resistance to humidity;

2) resistance to extreme temperatures;

3) it doesn't require any special maintenance being sufficient to wash it with water spray and a sponge;

4) doesn't get mouldy, doesn't rust or rot, doesn't require sanding and doesn't require painting or varnishing;

5) economy of money and time due to easy and quick mounting way;

6)they can be easily replaced in comparison with tiles or wallpapers;

7) minimum 10 years of life.

8) export goods to these areas:Middle-east,East Europe,Africa,Russia,Asia and son on .

9)width:300mm-thickness 7.5/8/9/10/12mm; width:200mm-thickness 8/9/10/12mm; Width:600mm-thickness7mm;
