Professional Pet Monofilament Machine / Pet Monofilament Extrusion Line

Professional Pet Monofilament Machine / Pet Monofilament Extrusion Line

Product Details:

Place of Origin: JIANGSU, CHINA
Brand Name: FRIEND
Certification: CE
Model Number: PET-65

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden package
Delivery Time: 35 working days
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Application: PET Monofilament Machine Raw Material: PET Granule
PET Filament Diameter: 1~3 Mm Motor Power: 37 Kw
Motor Brand: Siemens
High Light:

plastic profile extrusion machine

,

blown film extrusion line

Product Description

PET-65 monofilament extruder machine plastic profile production line 1-3mm PET filament making machine



Application

  • PET monofilament yarn for rope and twine
  • HDPE monofilament for 3 strands twisted rope and fishing net, sports net. chemical filter and anti-bird &insect net
  • PA6 and 66 nylon monofilament for fishing line and trimmer line
  • PP yarn for brush/ broom/ paint brush etc



Features

  • New designed advanced screw-extruder,imported from abroad Frequency inverter and electronic componenons to keep longer durability.
  • Automatic material loading hopper and dryer
  • Gear drive for hot roller groups, more stable
  • Easy operateion with mono-layer draw take -up machine , olive and steel type, nylob bobbin type to meet different request
  • High precision frequency inverter and temperature presure control instrument , pls touch screen to set data, especially easy for new users
  • Many years in production with mature technology and strong experience
  • Easy to operate ,help with set up and worker training .



Machine configuration

Part Name Qty. Introduction of Main Parts
Extruder 1set

1. Raw material: PET virgin or bottle flakes

2. Frequency conversion control speed.

3. Hard tooth surface gear motor: Jiangsu changzhou.

4. Screw and cylinder: Made in Zhejiang Zhoushan.

5. Material of screw heating: Al Casting.

Spinning die 1pc

1. Heating method of die head: oil heating.

2. Material of spinneret: SUS316.

3. Frequency conversion control speed, cycloidal pinwheel reducer.



Cooling water tank 1set

1. Yarn separate pole is movable.

2. Material of box: stainless steel.

Seven roller Stretching A 1set

1. Frequency conversion control speed.

Frequency conversion motor.

2. Steel structure of box, gear transmission, running balance.

3. In front, one rubber roller and stainless steel separate pole.



Hot water tank 1set

1. Material is stainless steel with heat preservation, and cover is opened by gas

2. Heating method :electrical heating

3.Equip water recycling pump

Seven roller Stretching B 1set

1. Frequency conversion control speed

Frequency conversion motor

2. Steel structure of box, gear transmission, running balance.

3. In front, one rubber roller and stainless steel separate pole



Hot blast stretching recycled oven 1set

1. Single layer recycled hot blast oven

2. Equip wind power control

3. Hot blast path especial design make them equality

4. Frequency control of motor speed

Seven roller Stretching C 1set

1. Frequency conversion control speed

Frequency conversion motor

2. Steel structure of box, gear transmission, running balance.

3. In front and back, each with one rubber roller and stainless steel separate pole.



Oiling unit 1set

1. Frequency conversion control speed

Frequency conversion motor

Yarn guider system 1set
Winder 2sets Frame style winder
Cabinet 1set Shown in another list

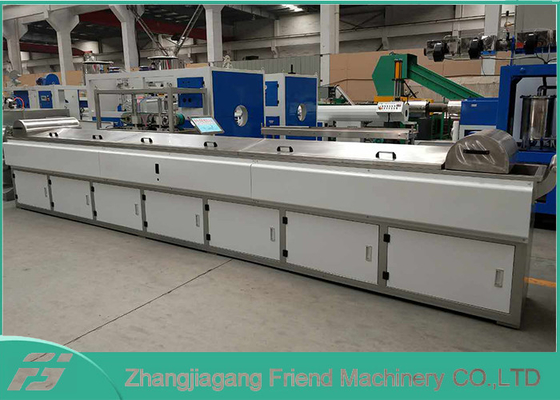

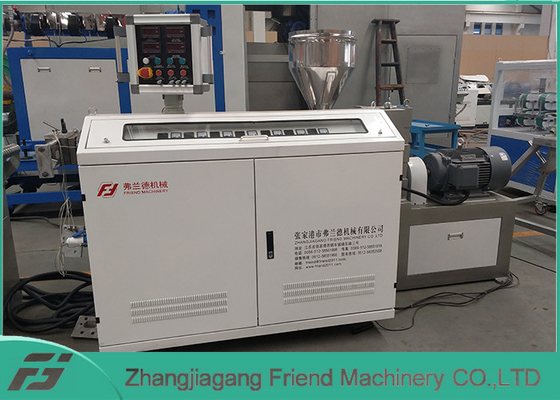

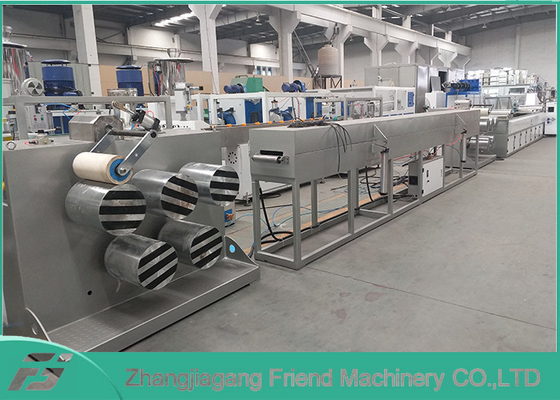

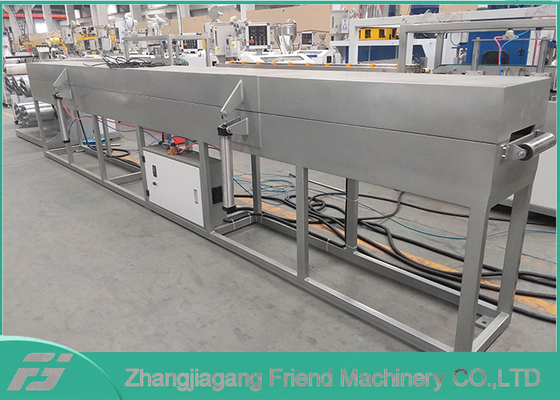

Machine pictures
