Stainless Steel Coated Plastic Pipe Machine For Gas Pipe Anti Corrosion

Brand Name:	Friend
Model Number:	SJ65
MOQ:	one set
Price:	negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Raw Material:

Soft PVC Crusher

Machine Width:

3.6 Meters

Speed:

14m/min

Motor:

Simens Brand

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Application:

Gas Pipe

Packaging Details:

Film package,wooden package needs extra charge

Supply Ability:

30 sets per month

Highlight:

tube extruder machine

plastic tube making machine

Product Description

Plastic stainless steel coated gas pipe extrusion line / extruder machine

Product Application

Extruder Type-SJ 65/25
1) Hard Teeth Surface, type 173 Gearbox
2) 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor
3) The screw & barrel are 38CrMoAl, Nitriding treatment, depth: 0.2-0.4MM, compression ratio:3.2, Length : diameter:25:1 with water cooling system;
4) Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs with two sections of moulds
5) Size range: DN8-32mm

description	PVC/PE coating line (extrusion line) for steel gas hose
size range	DN8 up to DN32
Wall thickness	0.18-0.3mm
Material:	sus304, 321 and 316L
hose type	annular and spiral

Description:

The plastic wrap extruder mainly covers the outer layer of various iron wire, iron pipe, steel pipe, aluminum pipe, metal hose, etc

Mainly PVC, PE, ABS, PA and other plastic, inner core can be ordinary iron pipe, stainless steel tube, aluminum tube and other different materials. The products are suitable for different occasions such as outdoor and indoor, and are widely used in decoration, heat preservation and anti-corrosion.

Composition of plastic coated extrusion line:

1. Release (feeding) device: the matching device for matching shall be designed according to the inner core

2. Host: depending on the size of the package and the outer layer, you can choose a single screw main or double screw host of different sizes

3. Covering mould

4. Cooling water tank

5. Tractor

6. Cut or uncoil equipment to cover the extruder

Picture:

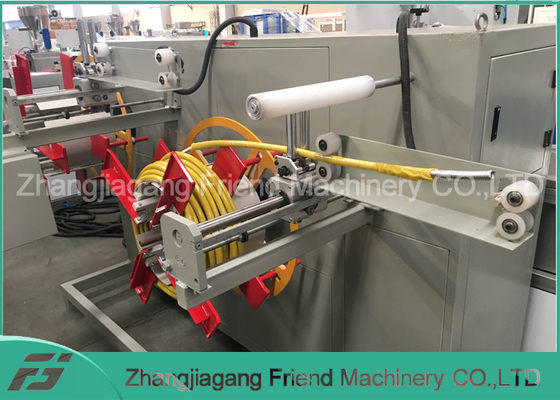

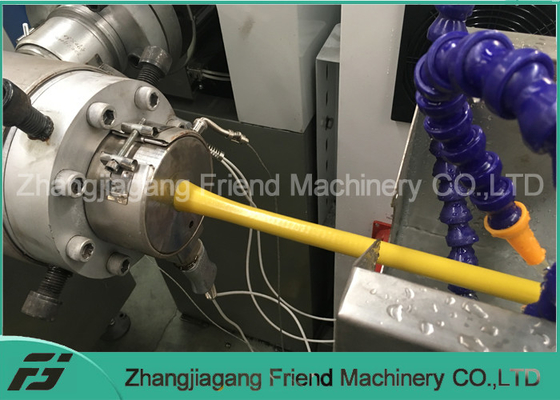

Stainless Steel Coated Plastic Pipe Machine For Gas Pipe Anti Corrosion 0
