PEEK Rod Rar Plastic Profile Production Line For Industrial Ceramic Heater Type

China PEEK Rod Rar Plastic Profile Production Line For Industrial Ceramic Heater Type supplier
PEEK Rod Rar Plastic Profile Production Line For Industrial Ceramic Heater Type supplier PEEK Rod Rar Plastic Profile Production Line For Industrial Ceramic Heater Type supplier PEEK Rod Rar Plastic Profile Production Line For Industrial Ceramic Heater Type supplier

Large Image :  PEEK Rod Rar Plastic Profile Production Line For Industrial Ceramic Heater Type

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE,SGS,UV
Model Number: SJZ65/28

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film packing and wooden case
Delivery Time: 30 making days
Supply Ability: 20 sets per year
Contact Now
Detailed Product Description
Material: Peek Material Processing Temperature: 250-390
Heating Type: Ceramic Heater Motor: Siemens Brand
Warranty: 1 Year Color: Optional

Industrial Application PEEK Rod Rar Production Making Machine Line

Description:

The PEEK bar is made out of PEEK material.The PEEK bar is not only excellent in heat resistance, but also has high strength, high modulus, high fracture toughness and good dimensional stability.The toughness of PEEK bar is good, and the excellent fatigue resistance to alternating stress is the most outstanding of all plastics, which can be compared with alloy materials.


PPR Pipe Standard:

1. Final PEEK Pipe usage:
2. Raw Material: PEEK raw material
3. Pipe Color:
4. Color Line:
5. Final  Size


No. Diameter ( mm )

1 Φ65




Equipment list:

I. Condition

1, Place Indoor
2, Power No danger
3, Humidity 85% non-condensing
4, Temperature 0-35℃

II. Working Condition

1, Power 3P 380V(—10%,+5%) 50Hz
2, Installation Power: kW
3, Cold Water: ≤20℃ ≥0.3Mpa
4, Air Supply: 0.3m3/min >0.5MPa
5, Installation Length: m

III.

  1. Material :PEEK


2, Output:

Extruder Model Material Output Mark
SJ65 PEEK 20-25kg/h



Output will be different according to different raw material and operations condition.

Part I Machine charts:


NO Machine name PCS
1. SJ65/28 Single screw extruder 1
2. Mold 1
3. Haul-off machine 1
4. Rar cutting machine 1
5. stacker 1
6. Hopper Dryer 1
7. Automatic Loader 1


Part II Machine specifications:

  • Size:50
  • Extruder Center Height:1000mm
  • Operation Directly:From Right to Left
  • Color:Friend Machinery Standard or customized
S/N Item name QTY Specifications
1

SJ65/28
Single screw extruder


1 set

Screw :
Diameter of screw: Ф65mm
L/D:28:1
Material of screw: 38CrMoAl
Surface treatment: Nitride processing, thickness: 0.5 ~ 0.7mm, Polishing
Barrel:
Material of Barrel: 38CrMoAlA
Inner processing: Nitride with thickness: 0.5 ~ 0.7mm
Heating zones: 5
Heating mode: Cast aluminum + stainless steel covering
Heating power: 15KW
Cooling power: 0.25KW×5
Method of cooling: air blow
Driving motor:
Motor power: 37KW
Rotating speed: 7-89rpm
Main electric part :
HOLIP inverter ( Famous Chinese Brand )
OMRON temperature controller
Siemens contactor
Jiangyin brand gearbox
Zhoushan brand screw and barrel

Self protective system:
Over current protective of motor
Over pressure protective of screw
Weight:2500kg
dimension(L×W×H): 3000mm*950mm*1300mm


2

Mold


1set

Material:
Made by 40Cr.
Inner surface polished
Calibration:
50mm diameter
Connection head material : 45# carton steel
Match with mica heater


3

Haul-off machine


1 set

Tracking type : belt type
Workable length:(mm)1200
Hauling speed:(m/min)0-20 or required
Center height:(mm)1000
Motor brand: China motor
Motor power:(kw)3kw
Speed control by inverter
Inverter brand: ABB
Outline dimension(L×W×H): 1790*2150*1400

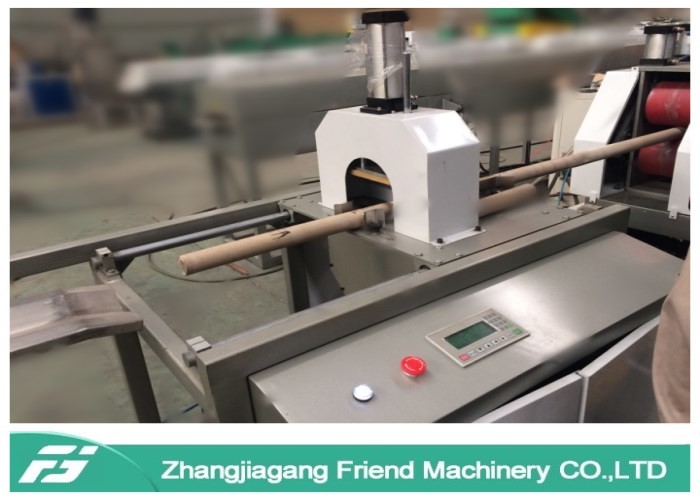

4 Rar cutting machine 1 set

Cutting Type Knife Cutting
Cutting Blade Saw blade
Blade Diameter 500mm
Cutting Speed 2800r/min
Clamping Type air cylinder type+ rubber
Cutting Range Diameter 0-160mm pipe
Cutting Motor China Brand with CE
Cutting motor 3kw
Speed control system PLC control system
Knife Lift Type air cylinder type
Table displacement mode air cylinder type
Stainless steel guide plate :yes


5 stacker 1 set

Length 5m
Material High quality stainless steel
Discharge Type air cylinder type


6 Hopper Dryer 1 set

Material : Stainless Steel

Heating Power : 6KW
Fan Power : 0.37KW
Hopper Volume : 150KG/H

7 Automatic Loader 1 set

 Material: Stainless Steel
 Maximum Transmission Capacity: 300kg/h
 Vacuum Pump Power: 1.1kw
 Weight :150kg




PEEK Rod Rar Plastic Profile Production Line For Industrial Ceramic Heater Type
