Multi Color 3D Printer Filament Machine For PEI Granules 3mm Diameter

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : wooden case package Delivery Time : 20-30 working days after deposit receive
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 sets per month
Place of Origin: Jiangsu Province, CHINA Brand Name: Friend
Certification: CE CERTIFICATE Model Number: SJ45

Detail Information

Raw Material: PEI Granules Production Capacity: 15-20kg/h
Motor Brand: Siemens Cooling Type: Air And Water Together
Filament Quality: First Class Filament Tolerance: ±0.03mm
Exported Countries: More Than 71 Countries In The World, Such As USA, Germany OEM: Approved
High Light:

3d printer filament maker

,

3d printer filament making machine

Product Description

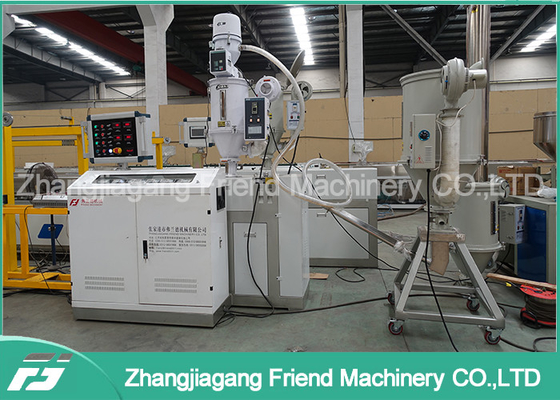

3mm Diameter SJ45 Multi-color PEI 3D Printer Filament Machine / PEI Filament Extruder

3mm Diameter SJ45 Multi-color PEI 3D Printer Filament Machine / PEI Filament Extruder is used to produce PEEK filament making machinefor all kinds of brands 3D printer. This machine has high performance and high output. It can process PEEK material with a diameter of 1.75mm or 3mm or customized diameter according to customer's requirement, which is most common in 3D printers. This machine has ray measuring diameter instrument ater the water tank which can make sure the diameter within 0.04mm. FLD45 Type filament extruder has a high output, it can produce 3-10kgs filament per hour.


Advantages of 3mm Diameter SJ45 Multi-color PEI 3D Printer Filament Machine / PEI Filament Extruder:
1, can make the 3D wires diameter: Φ1.75-Φ3.0mm; tolerance :±0.03mm,
2, Capacity: 1-20KG / hr;
3, the production line speed: 10-100 m / min (depending on customer’s wire diameters and materials);
4, the production line center height: 1000mm;
5, line direction: left and right to close the discharge →
6, the installation area: length×width*height = 10m * 1.5m * 2m;
7. Power: 380V or Customized;
8. Body color: light blue (customers can specify) .
To make standard plastic filament, you not only need extruder, but also need other down stream machines.
We have exported this machine to many countries such as USA, Canada, Russia, Ukraine, Turkey, South Corea, Uk,Poland, Australia, PK, India, Columbia, Saudi Arabia, Bulgaria etc.


Matrials name
Tolerance
Roundness
Bed Temp
Print Temp

Color

Net weight

Diameter (MM)
PLA filament
±0.02
60℃-80℃
190℃-230℃
over 29
1KG, etc.
1.75/2.85/3.00
ABS filament
±0.02
90℃-110℃
190℃-230℃
over 23
1KG, etc.
1.75/2.85/3.00
PETG filament
±0.02
75℃-85℃
200℃-240℃
14
1KG, etc.
1.75/2.85/3.00
PC+ filament
±0.02
90℃-100℃
235℃-260℃
10
1KG, etc.
1.75/2.85/3.00
Conductive ABS
±0.02
90℃-110℃
230℃-250℃
1
1KG, etc.
1.75/2.85/3.00
Wood filament
±0.02
90℃-100℃
200℃-250℃
1
1KG, etc.
1.75/2.85/3.00
ABS Color change by UV
±0.02
90℃-110℃
190℃-230℃
1
1KG, etc.
1.75/2.85/3.00
PLA Color change by UV
±0.02
60℃-80℃
190℃-230℃
1
1KG, etc.
1.75/2.85/3.00
ABS Color change by Temp
±0.02
90℃-110℃
190℃-230℃
4
1KG, etc.
1.75/2.85/3.00
PLA Color change by Temp
±0.02
60℃-80℃
190℃-230℃
4
1KG, etc.
1.75/2.85/3.00
Glow in dark ABS
±0.02
90℃-110℃
190℃-230℃
2
1KG, etc.
1.75/2.85/3.00
Glow in dark PLA
±0.02
60℃-80℃
190℃-230℃
2
1KG, etc.
1.75/2.85/3.00
Nylon/PA filament
±0.02
90℃-110℃
240℃-270℃
7
1KG, etc.
1.75/2.85/3.00
Nylon 12/PA12 filament
±0.02
95℃-110℃
235℃-260℃
1
1KG, etc.
1.75/2.85/3.00
Flexi/Soft TPE filament
±0.02
80℃-90℃
220℃-240℃
7
0.5KG, etc.
1.75/2.85/3.00
Flexi/Soft TPU filament
±0.02
75℃-85℃
220℃-240℃
7
1KG, etc.
1.75/2.85/3.00
Flexi/Soft PLA filament
±0.02
60℃-80℃
190℃-230℃
3
1KG, etc.
1.75/2.85/3.00
ASA filament
±0.02
80℃-100℃
200℃-250℃
3
1KG, etc.
1.75/2.85/3.00
Fireproof ABS filament
±0.02
80℃-100℃
200℃-230℃
3
1KG, etc.
1.75/2.85/3.00
HIPS filament
±0.02
60℃-80℃
190℃-240℃
7
1KG, etc.
1.75/2.85/3.00
PVA filament
±0.02
Unheated
160℃-200℃
1
0.5KG, etc.
1.75/2.85/3.00
Metal filled PLA filament
±0.02
60℃-80℃
190℃-230℃
3
1KG, etc.
1.75/2.85/3.00
ABSCarbon Fiber filament
±0.02
80℃-110℃
200℃-230℃
1
1KG, etc.
1.75/2.85/3.00
PLA Carbon Fiber filament
±0.02
60℃-80℃
190℃-230℃
1
1KG, etc.
1.75/2.85/3.00



Our Service
A. Before-sale
1. Introduct products and application detain 2. Recommend suitable solution
3. Provide with reference in formation 4. Offer lab for test

B. During manufacturing
1. Provide with layour and engineering conditions
2. Inform the projext processing status
3. Offer other document

C. After -sales
1. Provide with installation,commissioning and training
2. Register and record customer information
3. Offer spare parts
4. Provide with necessary technical support for new application
5. Visit customer regularly and correct information
