Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE,SGS,UV
Model Number: SJ90/33

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film packing and wooden case
Delivery Time: 30 making days
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Pipe Application: Water Supply Pipe Size: 415-630mm
Motor: SIEMENS BRAND Screw And Barrel: JINHAILUO Brand
Warranty: 1 Year Color: Red
High Light:

pvc pipe manufacturing machine

,

plastic pipe extrusion machine

Product Description

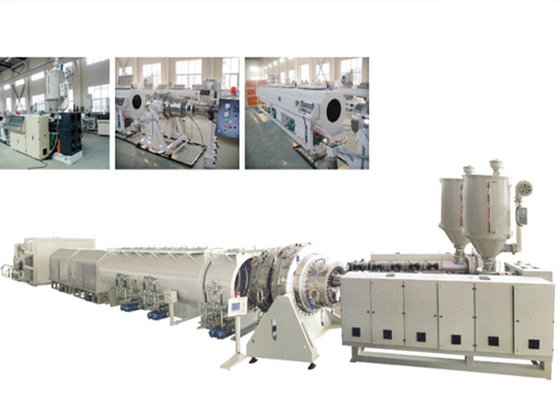

415-630MM Diameter HDPE Water Supply Pipe Hose Extrusion Production Line



Description:

In the water supply and drainage pipe system, the plastic pipe has gradually replaced the traditional pipe material such as cast iron pipe and galvanized steel pipe.

Plastic pipe compared with the traditional pipe, with light weight, corrosion resistance, small flow resistance, energy saving, convenient installation fast, low cost advantage, get the favour of the pipeline engineering.At the same time, with the rapid development of petrochemical industry and the continuous improvement of plastic manufacturing technology, the production of plastic tubes is increasing rapidly and the products are more diversified.



The HDPE pipeline is the second most consumed plastic pipe in the world after PVC-U drainage.A medium or high density polyethylene pipe with PE80 and PE100 grades should be used for conveying gas.PE80 and PE100 or high density polyethylene pipes are usually used for water pipes, and PE63 is gradually becoming obsolete.In terms of water delivery, the fastest growth is the PE100 pipeline, which is expected to grow by more than 10 percent over the next five years.



In Europe, the HDPE pipeline has been developed and applied more rapidly, and the HDPE pipeline has gradually replaced the status of PVC-U pipeline as the main consumption pipeline.At the same time, the HDPE tube is gradually being used outside Europe.



Machine parameters:

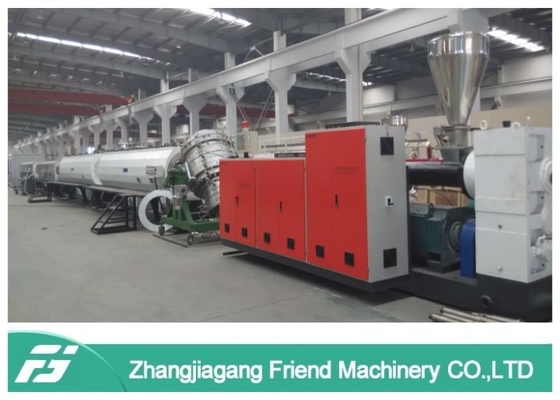

4. SJ90/33 Single Screw Co-extruder
SJ90/33
Model  SJ-90/33
Screw  Screw diameter: 90mm
Screw and barrel materials  :38CrMoAlA
Treatment: Surface nitrogen Treatment
L/D 33:1
Screw speed: 9-94r/min
Screw has water cooling jacket
Barrel  Material: 38CrMoAlA
Inner Surface treatment: Nitrided, ground
Heating ring: cast aluminium+304 stainless steel cover
Heating control zones:7 zones
Heating power: 35KW
Cooling system: By blower fan
Cooling power: 0.25KW×5
Gear type: Helical gears
Reduction rate: 12.5:1
Material of the gear: 20CrMnTi
Heat treatment of the gear surface
Main Motor Power 160KW DC  Main motor Transducer: ABB
Temperature control instrument: Omron
Contactor: Siemens
Low Voltage Siemens
Voltage: 380V, 50HZ(customized)
The extruder is used the PPR PE pipe extrusion. Material is
feed by vacuum feeder, via hopper dryer come into barrel.
Material through the screw’s conveying, compression, two
zones BM plasticizing, measuring, then come into forming
mould. The gear box allocates with cooling system and have
long using life.
ZHANGJIAGANG FRIEND MACHINERY CO., LTD
Main Motor: WN
Voltage: 380V, 50HZ(customized)
The extruder is used the PPR PE pipe extrusion. Material is feed by vacuum feeder, via
hopper dryer come into barrel. Material through the screw’s conveying, compression, two
zones BM plasticizing, measuring, then come into forming mould. The gear box allocates
with cooling system and have long using life.
Adopt SIEMENS PLC touch screen and Friend Machinery design control system , has
advantages of automatic adjustments and easy-operations ,long uselife .
5. SJ25/25 Single Screw Co-extruder
SJ25/25
Model  SJ-25/25
Screw  Screw diameter: 25mm
Screw and barrel materials  :38CrMoAlA
Treatment: Surface nitrogen Treatment
L/D 33:1 :25:1
Screw speed: 1-120r/min 1-120r/min
Screw has water cooling jacket
Barrel Material: 38CrMoAlA
Inner Surface treatment: Nitrided, ground
Heating ring: cast aluminium+304 stainless steel cover
Heating control zones:3 zones
Heating power: 3.6KW
Cooling system: By blower fan
Cooling power: 0.065KW×3 :0.065KW×3
Gear type: worm gear box
Main Motor Power 1.5KW AC
 Main motor Transducer:
Temperature control instrument: Omron
Contactor: Siemens
Low Voltage Siemens
Voltage: 380V, 50HZ(customized)
.
The extruder is used in extrusion marking line for PP-R PE, PP
ZHANGJIAGANG FRIEND MACHINERY CO., LTD
pipe. The color pellets comes into forming mould, the color on
the pipe will never fadeless, extruder allocates with 3 wheels,
will be easy to move and have more beautiful appearance.
6. Mould
Structure Screw type
Material  45#STEEL
Sizes 710,800mm
Mould sizes  40Cr Forging, hard chrome plated
Heating type
Heating power Above 260kw
Equipped with moving shelf
Calibration die
Copper material after polishing treatment
Copper sizing set
Pressure level : SDR 11, 17, 26
internal layer - 10%, middle layer - 80%, external layer - 10%

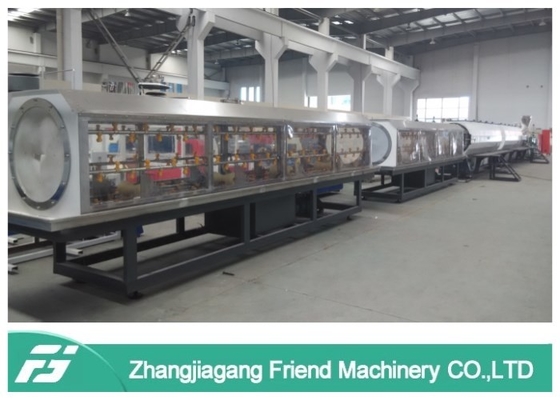

7.1 Vacuum Calibration tank
Pipe range 710-1000mm
Effective length  5800mm
Vacuum pump  5.5KW X 4
Water pump  7.5KW X 4
The material of the tank  Parts touched with water are made of stainless steel
Stainless steel thickness 3mm
Vacuum Pump Brand Haimen ( water ring type)
Water Pump Brand Haimen
Stroke (move with screw mandrel) 600mm by hydraulic shifter unit
Height of the centerline  1450mm±50mm
Water control  Automatic
Pipe support type  Nylon idler
Filter type  Stainless net

ZHANGJIAGANG FRIEND MACHINERY CO., LTD
 ABS.
The filter unit has double loop channel, can Non-stop clear up the dust and protect the
vacuum pump and water pump. The flange in back-end of vacuum tank is made by
stainless steel, and is controlled by solenoid valve and ball float valve. The spray tube are
also made of stainless steel. The drainage system allocates with silencer and water pump
has filter device. The spray nozzle material is ABS.

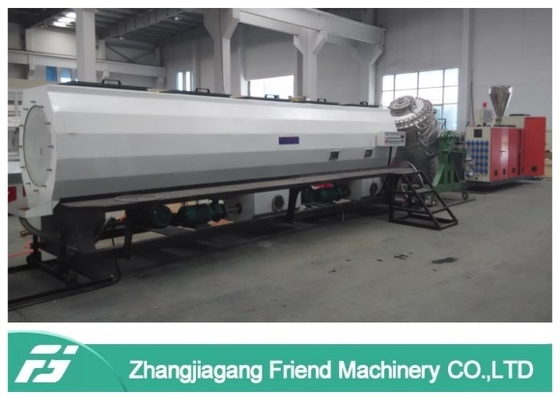

7.2 Vacuum Calibration tank
Pipe range  710-1000mm
Effective length  5800mm
Vacuum pump  5.5KW X 2
Water pump 7.5KW X 2
The material of the tank  Parts touched with water are made of
stainless steel
Stainless steel thickness 3mm
Vacuum Pump Brand Haimen ( water ring type)
Water Pump Brand Haimen
Stroke (move with screw mandrel) 600mm by hydraulic shifter unit
Height of the centerline  1450mm±50mm
Water control  Automatic
Pipe support type  Nylon idler
Filter type  Stainless net
The filter unit has double loop channel, can Non-stop clear up the dust and protect the
vacuum pump and water pump. The flange in back-end of vacuum tank is made by
stainless steel, and is controlled by solenoid valve and ball float valve. The spray tube are
also made of stainless steel. The drainage system allocates with silencer and water pump
has filter device. The spray nozzle material is ABS.
8. Spray cooling tank
Type  rain curtain type spray box
Material of the tank Stainless steel +pvc sheet
Wall thickness  2mm
The length
Water pump  7.5KW*2
ZHANGJIAGANG FRIEND MACHINERY CO., LTD
Height of the centerline
1450mm±50mm
Filter type  Stainless net
9. Eight Caterpillar Haul Off Machine
The elliptical correction device Correction way by manual
Correction direction Four direction as need
Correction compression roller material Nylon material
Haul-off method  Eight r Caterpiller
Traction range  710-1000mm
Speed  0.02-0.4m/min
Haul off length  2500mm
Motor Method  AC Motor
Speed adjustment
AC variable frequency
Inverter
ABB brand
Haul off Power 7.5 KW
Clamping type Cylinder Compression+Mechanical
Compression
10. QG-1000 Planetary Cutting machine QG1000
Cutting type  Planetary Cutter
Compression  Cylinder
Working Table Moving  Cylinder
Application 710-1000mm
Cutting Power  7.5 KW
Cutting blade diameter 300mm
Rotating motor 2.2kw
Cutting noise  <75
Reducer
Feeding motor 1.5KW
Weitht 1300kg



Red Color PE Pipe Making Machine , PE Pipe Extrusion Line 415-630MM Diameter 0





Why choose us?

We are a professional manufacturer of Plastic Extruders ,we produce plastic extrusion machine.

1. Cost performance is high

All the machine ,we make it ourself to reduce the cost of our customer.

2.Genuine product with excellent quality

We choose our material andequipment strictly.

All the material come to our factory must pass the quality test.

3.Engerneers available to serve oversea

4.Quick delivery

The company provide just in time delivery with its streamlined supply chain.

5.Cost saving

We take strong attention to every detail in the manufacturing process.

The quality control in our factory is very strict.

All defective semi-manufactures must be treated again or reject.

All the machine must be checked out ,then delivered to our customer.

All about that pushing up the price,but get good quality machine.

What we want to do is give our customer a good quality product with stable working and long lived.
