PE PVC Wood Plastic Composite Extrusion Machine With CE / SGS / TUV Certificate

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Film package Delivery Time : 30 working days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 30 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE,SGS,TUV Model Number: SJSZ conical twin screw extruder

Detail Information

Material: Woode Plastic+additive+pe Or Pvc Powder Warranty: One Year
Automatic Grade: Automatic Voltage: 380V Or Customized
Wpc Application: Ceiling, Floor, Wall Panel,etc. Motor Power: 18.5kw,37kw
Motor Brand: Simens Brand After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

wpc extruder machine

,

wood plastic composite production line

Product Description

WPC PE PVC Profile Wall Panel Floor Extrusion Production Machine Line



Application:



The main extruder adopts special designed screw, barrel,mould.Equipped with the auxiliary

machineries, it could produce the PP PE PVC Wood-Plastic products.

It's a new environment protecting product, which combines the wood powder and plastic powder

at a certain percent.

After the high temperature and mould extruding, the wood and plastic composites and becomes

the final products.



WPC products: lowest pollution, anti-acid and alkali-roof, water proof, anti-rot, non-posion and non-smell,high-strength, recycling, etc.

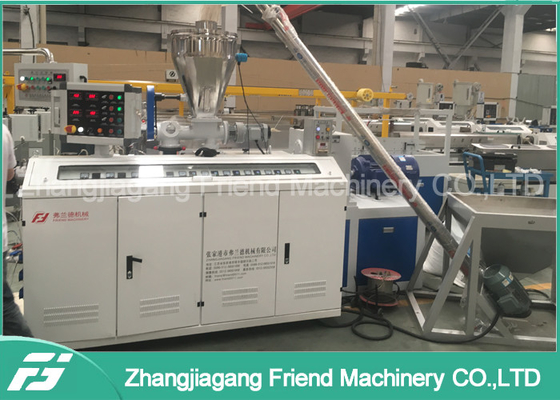

WPC Profile board extruder machine consist of the twin screw extruder, mould, calibration table, haul off and cutting machine and the loading table. WPC profile extruder machine also can used for the PVC window and door profile making after changing mould.

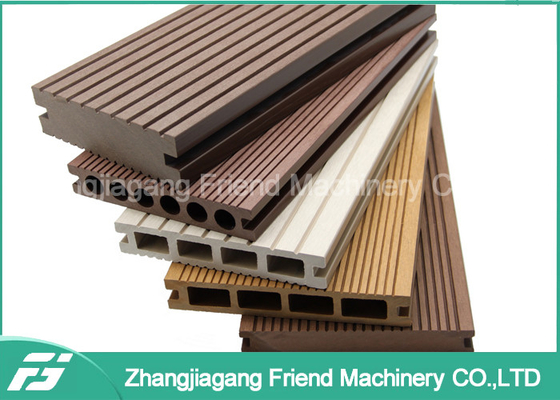

1. WPC is used to make construction panel, decoration panel,balustrade, pavement, steps, outdoor tables, wall panel and chairs, pergola,tree bed ,etc.
2. Material: 30-60% straw, wood flour, rice chaff mixed with recycled PVC, PP, PE powder.
3. WPC advantage: undecomposable, deformation free, fade resistant, insect damage resistant, good firepoof performance, crack resistant, and maintenance free etc.



Main technical parameter



Model
YF-180
YF-240
YF-300
YF-400
YF-500
YF-600
YF-800
YF-1000
YF-1250
Max. width of products (mm)
180
240
300
400
500
600
800
1000
1250
Main extruder
SJZ51/105
SJZ65/132
SJZ65/132
SJZ65/132
SJZ80/156
SJZ80/156
SJZ80/156
SJZ92/188
SJZ92/188
Extrusion capacity
(kg/h)
150
250
250
250
360
360
360
600
600
Main motor power (kw)
22
30/37
30/37
30/37
55
55
55
110
132



WPC Introduction:

As a new material to replace wood, wood plastic composite is widely used in fields of building decoration and outdoor building materials, such as edge and corner lines, fence of flowers nursery, skirting board, ceiling line, blind window, stair railing, decorative wall board, outdoor pavilion and so on. Most interior and exterior decorative building materials can be made by using wood plastic composite.

Particularly, wood plastic composite can be used in kitchen and washing room for its waterproof and fireproof functions which the raw wood does not have.

At present, wood plastic composite has already drawn extensive attention in the world and is praised as new material which will have board developing prospect.

Materials: PVC/PP/PE + Wood Powder or PVC, PE, PP.



Picture:
