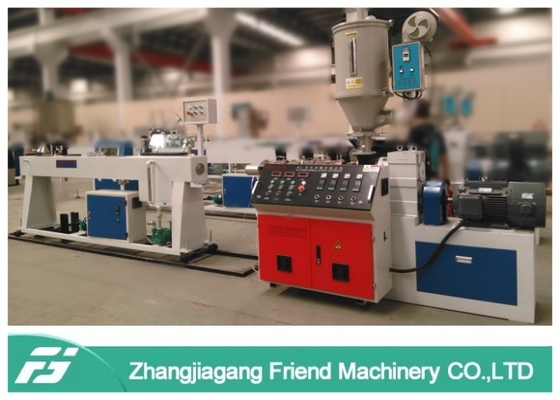

POM Wear Resistant Hdpe Pipe Manufacturing Machines 15-20kg/H Capacity

POM Wear Resistant Hdpe Pipe Manufacturing Machines 15-20kg/H Capacity

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE,SGS,UV
Model Number: SJ45

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film packing and wooden case
Delivery Time: 30 making days
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Material: POM Resin Capacity: 15-20kg/h
Motor: Siemens Brand In China Inverter: Holip
Warranty: 1 Year Color: Black
High Light:

plastic pipe extrusion machine

,

pvc pipe production line

Product Description

POM Wear-Resistant Plastic Pipe Hose Tube Production Extrusion Line

Descroption:



Polyformaldehyde (pom) is a kind of engineering plastics with excellent performance, which is known as "steal steel" and "super steel" in foreign countries.Pom with similar hardness, strength and rigidity of metal, in a very wide range of temperature and humidity have good self-lubrication, good fatigue resistance, and full of elasticity, in addition it also has good resistance to chemical character.Pom at a cost lower than many other engineering plastics are replacing some traditionally occupied by the metal in the market, such as alternative zinc, brass, aluminum and steel to make many parts, since the advent of pom has been widely used in electrical, mechanical, instrument, daily light industrial, automotive, building materials, agriculture and other fields.In many new fields, such as medical technology and sports equipment, pom also showed good growth.



POM has very low friction coefficient and very good geometrical stability, especially suitable for making gears and bearings.Because of its high temperature resistance, it is also used in pipeline components (pipeline valves, pump housing), lawn equipment and so on .



Polymethyl methacrylate as a transparent material with excellent performance is widely used in the following aspects:



1. Lamps and lanterns, lighting equipment, such as various household lamps, fluorescent lampshades, car tail lights, signal lights, road signs.



2. Optical glass, such as making lenses, mirrors, prisms, TV screens, Fresnel lenses, and cameras.



3. Prepare various instrument meter dial, cover shell and dial.



4. Prepare optical fiber.



5. Merchandise advertisement window, billboard.



6. Bullet-proof glass for aircraft cockpit glass, aircraft and car (with intermediate interlayer material).



7. Various medical, military and architectural glass.



Machine Parameter:

No Model Details
1 Hopper Dryer
  • Material : Stainless Steel

Heating Power : 6KW

  • Fan Power : 0.37KW
  • Hopper Volume : 150KG/H



2

SJ30

Single Screw Plastic Extruder

l Screw Diameter :¢30mm

l Ratio of L/D : 28:1

l Screw Maximum Rotating Speed : 15-150Rpm

l Motor Power : 7.5KW

l Screw and Barrel Material : 38CrMoAlA Nitrogen Treatment

l Depth of Nitrogen Treatment: 0.4-0.7

l Screw Straightness : <0.015 mm

l Hardness of Screw : HV800-1000

l Heating Method : Casting Aluminum Heater

l Heating Zones : 4Periods(Screw Barrel 3periods,Head Piece 1 Periods)

l Heating Power:12KW

l Cooling Method :Forced Air Cool

l Cooling Zones :3 periods

l Fan Motor Power : 180W*3= 0.54KW

l Electrical System : ABB Frequency Converter

l Temperature Control Meter : RKC

l Gear Box : Hard Tooth Face

l Central Height : 1000mm

l Size : 1500*1090*2127mm

l Weight : 400kg



3 Mold and Head
  • Mold Material : Steel 40Cr
  • Mold Size for OD10mm, ID 8.5mm tube Connection head material : 45# carton steel

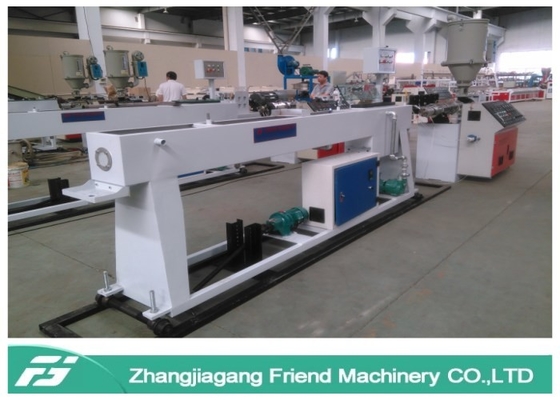

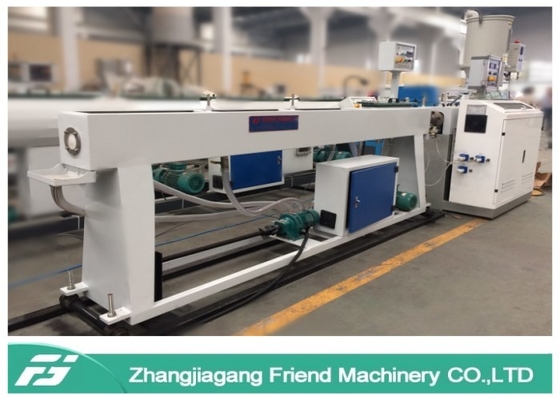

4 Vacuum and Water cooling tank
  • Vacuum forming part : Length: 2m
  • Vacuum pump power : 2.2kw
  • Material: stainless steel
  • Heating device for good quality pipe forming
  • Water cooling tank parts :
  • Length : 1m
  • Material : stainless steel
  • Machine structure material : Q235 steel
  • (height and direction adjustable)
  • Size : 3000*1120*310



5



Haul off with cutting device
  • Haul off speed : 1-15m/min or required
  • Driving motor : 0.55kw*2
  • Cutter motor type : servo motor
  • Motor power: 1.5kw
  • Cutter blade material : high quality tooling steel
  • Final tube cutting length could be adjusted
  • Cutting tube number could be seen in PLC system
  • Control system ( PLC control system )
  • Size : 1500*900*850







POM Wear Resistant Hdpe Pipe Manufacturing Machines 15-20kg/H Capacity 0



Pre-sales service:

> Introducing in detail features and application of the products to customer

> Selecting economical and practical machine & equipment for customer

> Providing operation data of the related machine & equipment

> Providing means of trial performance for customer

Sales service:

> Recommending engineering conditions required for installation of the machine & equipment

> Communicating in time the manufacturing progress of the machine with user

> Providing assistance in technical conditions, screw combination and barrel disposition needed for product

After-sales service:

> Providing on-the-spot technical assistance in installation, commission and training

> Filling in detail customer’s information

> Providing long-term maintenance service and spare parts

> Giving technical support to customer for developing new product

> Providing free maintenance for a year
