Compact PVC Pipe Flakes Plastic Crusher Machine For PVC Powder Grinding

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : Standard film package and then wooden case package. Delivery Time : 15-20 days after deposit receive.
Payment Terms : L/C, D/A, T/T, Western Union Supply Ability : 15 sets per month
Place of Origin: Jiangsu Province, China Brand Name: Friend
Certification: CE certicate Model Number: SMF400

Detail Information

Type: SMF400 PVC Pipe Flakes Plastic Pulverizer Machine For PVC Powder Grinding Raw Material: Pvc Pipe Or Profile Flakes
Final Products: Pvc Fine Powder Powder Size: 20MESH-120mesh
Capacity: 80-100kg/h Contactor: Siemens
Motor: Siemens Brand Shipping Method: LCL Shipment
High Light:

plastic milling machine


grinding pulverizer machine

Product Description

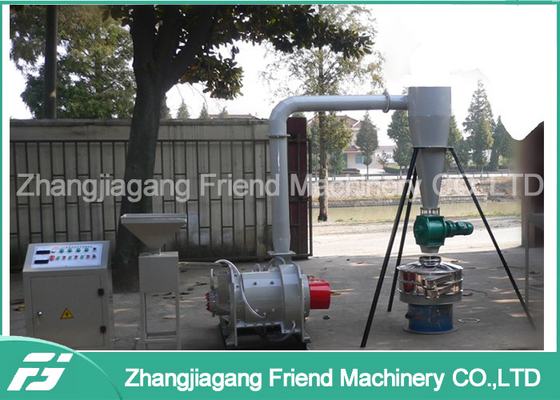

SMF400 PVC Pipe Flakes Plastic Pulverizer Machine for PVC Powder Grinding


SMF series Plastic Pulverizer/milling machine/ grinder is disk-type plastic pulverizer series, which has the advantages of high-yield and low-power. This machine can be used for powder processing of,PolyvinylChloride (PVC), Polypropylene .


Main technical parameters of plastic milling machine are as following:


1. This SMF-400 Plastic Pulverizer Machine is absorbed foreign advance technology

2. It is especially used in grinding of thernoplastic pellet, such as PVC PE etc.

3. High efficiency and low powder consumption.

4. Easy changing of the grinding knife

5. Compact and space-saving design

6. We can design different capacity based on customer's requirement



Features of PVC pulverizer machine:

1, adopts vibrator feeding, the material feeded to pulverizer evenly.

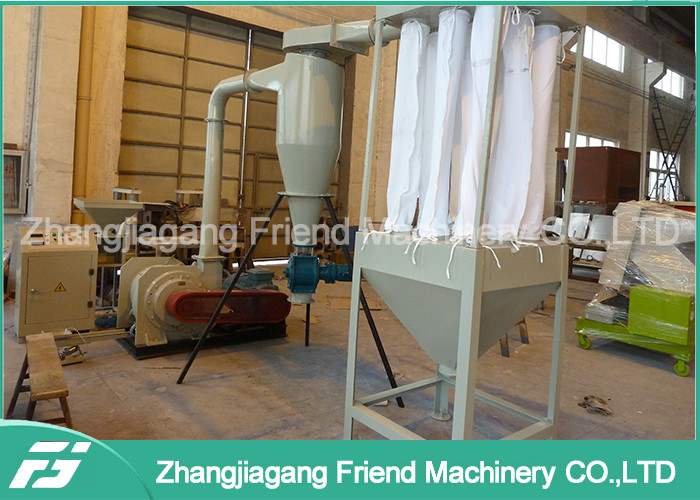

2, it has dust-collecting device, effectively reducing the dust pollution.(SMF400 model not have)

3, Equipped with discharge fan, effectively reduce labor intensity. (SMF400 model not have)

4, The door of main machine is open able, easy to repair and replacement of the tool.

5, using both water cooling and air cooling, effectively reduce the working temperature of the machine body.

6, all conveying pipe are made of stainless steel, rust proof, and no pollution to PVC material.


How the PVC pulverizer machine works:


1. the working parts of this machine is cutterhead. particles hit the tooth plate and blades at High-speed , then the particles partially crushed and extracted by blower suction, while larger particles continue to impact, crush , then also extracted by suction. This not only reduces the load on the cutter head and improve milling efficiency, but also make the powder uniform cooling.


2, the low working temperature is the main advantage of this machine. According to the mechanical equivalent of heat: the work done 860 kilocalories per hour. This machine is outside ventilation, wind capacity 50M/KW, it take most of the heat away because the inlet and outlet air temperature difference. Small part of the heat takes away by the water cooling. Cooling water Requirements: the inlet temperature of the cooling water is not higher than 25 ° C, the outlet water temperature not higher than 45 ° C; appropriately increase the flow of cooling water in the summer, in order to lower the temperature.



Main Technical Parameters:


Model SMF400 SMF500 SMF600
Motor Power 30 KW 37 KW 45 KW
Capacity ( PE ) 120-130 kg/hr 150-170 kg/hr 200-220 kg/hr
Rotating Blades shaft speed 2200 RPM 2200 RPM 2200 RPM
Cooling Type Water Cooling Water Cooling Water Cooling
Power size 60 – 80 mesh 60 – 80 mesh 60 – 80 mesh
Weight 1000 kg 1200 kg 1500 kg
Compact PVC Pipe Flakes Plastic Crusher Machine For PVC Powder Grinding 0Compact PVC Pipe Flakes Plastic Crusher Machine For PVC Powder Grinding 1
