Energy Saving Grinding Pulverizer Machine , Plastic Pulverizing Machine

Minimum Order Quantity : 1 set Price : negotiation
Packaging Details : standard film package Delivery Time : 15-20 working days after deposit
Payment Terms : L/C, D/A, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: Jiangsu Province, China Brand Name: Friend
Certification: CE Certificate Model Number: SMF800

Detail Information

Type: SMF800 PVC Grinding Machine / Plastic Mill Pulverizer Machine Process Product: Pvc Profile, Pipe Scraps
Final Product: Pvc Fine Powder Powder Size Mesh: 20mesh, 40mesh, 80mesh, 120mesh
Machine Color: Customized ,such As Black And White Bearing Brand: LYC
Vibrating Sieve: Have Shipping Method: By Sea
High Light:

plastic milling machine

,

pvc grinder machine

Product Description

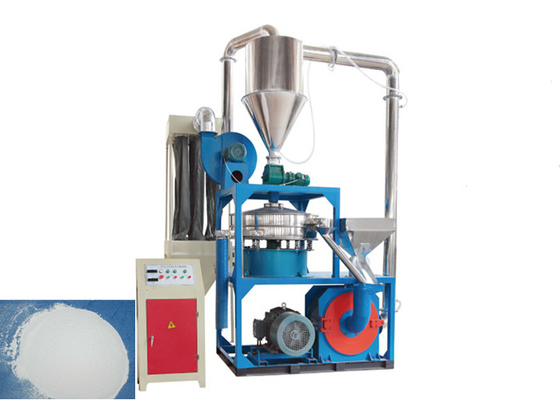

SMF800 PVC Grinding Machine / Plastic Mill Pulverizer Machine for recycling PVC Scraps



The brand new SMF series pulverizer belongs to disc-type pulverizer series, with it’s disc diameter from 350mm-800m. It is widely used in grinding materials with moderate hardness. It is applied for process materials such as PE, PVC, PP, ABS, PA, EVA, PET, PS, PPS, EPS, PC, Styrofoam, Cow leather, etc.



Plastic PVC pulverizer is utilized to grind crushed PVC scraps into fine powder for recycling production waste in rigid PVC plastic industry, such as PVC pipe, PVC profile, PVC ceiling, PVC wall panel. the model available are SMF400,SMF500,SMF600,SMF800, the output capacity of pulverizer from 50kg/h to 380kg/h. and special requirement on pulverizer can be customized.



Features And Application of SMF800 PVC Grinding Machine / Plastic Mill Pulverizer Machine:

Waste plastic grinding granulator machine is used in waste plastic recycling, extrudering plastic recycling and plastic pipe crush recycling.

As a new type of pulverizing,this equipment has features as following:

1. compared with other grind machine,it has large output with the same energy consumption,saving energy.

2. equipped with dust collecting device can reduce dust pollution

3. adopting discharge with airlock can reduce the labor intensity of operators

4. the cover plate of the main machine can be opened ,it is convenient for maintenance and replacement of the knife.



1. This type can grind all kinds Hard & Soft materials into 10-80 mesh powders in normal temperature

2. A widely use range, PVC/PE/PP/ABS/PS/PA/PC Materials

3. This machine has a more higher output, 2 or 3 times than normal miller, equip with Dust collector. An ideal energy saving machine in plastic industries

4. This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system. Automatic and space saving.

5. The sword adopted imported stainless steel, durable, can work continous

6. Knife can be adjusted easily, easily maintained and control

7. Main shaft adopted SKF, matched with oil pump imported, can used about 3-4 years in normal use



1) SMF series pulverizer machine specification(for PVC)

Model SMF-500 SMF-600 SMF-800
Motor power (kw) 37kw 55kw 75kw
Blow power (kw) 3kw 5.5kw 11kw
Voltage

380V, 50Hz

(or according to customer)

380V, 50Hz

(or according to customer)

380V, 50Hz

(or according to customer)

Total power 41kw 52kw 90.5kw
Blade Dia. 500mm 600mm 800mm
Feeding material size Below 10mm Below 10mm Below 10mm
Output size 40-80mesh 40-80mesh 40-80mesh
Vibration model ZDS-800 ZDS-1000 ZDS-1200
Capacity 200-300kg/h 300-500kg/h 500-600kg/h

Machine size(mm)

(L*W*H)

2500*2000*3000mm 3200*2600*3200mm 3500*2400*
