30kg/H Capacity Hose Manufacturing Equipment For Nylon Car Oil Application

30kg/H Capacity Hose Manufacturing Equipment For Nylon Car Oil Application

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE,SGS,UV
Model Number: SJ45/30

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film packing and wooden case
Delivery Time: 30 making days
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Material: PA12 Plastic Pellet Capacity: 30kg/h
Motor: 15kw Motor Brand: Siemens
Color: Optional Warranty: 12 Months
High Light:

plastic profile extrusion machine

,

pet strap making machine

Product Description

PA12 nylon car oil application pipe tube hose extrusion production line



Description:



Nylon tubing has good physical and mechanical properties: wear-resistant and can be used in the condition of sand and iron filings;Smooth surface, reduce resistance, can prevent rust and fouling.Soft, easy to bend, easy to install, easy to process.



It is also steel, which can be shaped like metal tubes when it needs a certain shape, and it does not require complicated equipment and tooling.Be able to withstand a lot of chemical corrosion;Stable size and low permeability;High resistance can be used as an insulator;Life is long, even decades;Good temperature tolerance, can be in work - 40-100 ° C environment.

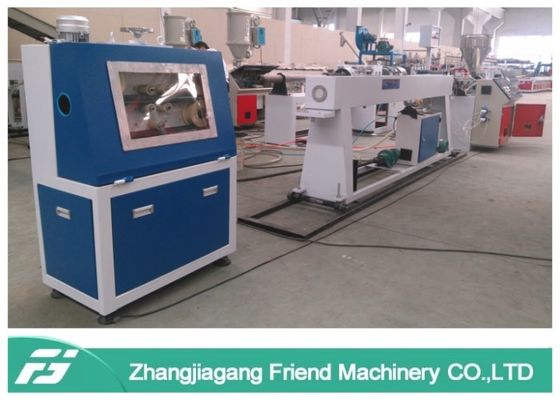

Machine Chart:



1 Automatic Feeder 1
2 Hopper Dryer 1
3 SJ45/28 Single Screw Plastic Extruder 1
4 Mold and Die( with pressure sensor ) 1
5 Vacuum and Water cooling tank(1m vacuum cooling and 2m water cooling) 1
6 Laser 1
7 Haul off machine and winder 1
Voltage type : 380V 50HZ



Part II: Technical Standards



No Model Details

1



Automatic Feeder

30kg/H Capacity Hose Manufacturing Equipment For Nylon Car Oil Application 0

SINNI brand

2 Hopper Dryer
  • Material : Stainless Steel

Heating Power : 6KW

  • Fan Power : 0.37KW
  • Hopper Volume : 150KG/H



SINNI brand



3

SJ45

Single Screw Plastic Extruder

l Screw Diameter :¢45mm

l Ratio of L/D :28:1

l Screw Maximum Rotating Speed : 1-89Rpm

l Motor Power : 11KW

l Screw and Barrel Material : 38CrMoAlA Nitrogen Treatment

l Depth of Nitrogen Treatment: 0.4-0.7

l Screw Straightness : <0.015 mm

l Hardness of Screw : HV800-1000

l Heating Method : Casting Aluminum Heater

l Heating Zones : 5Periods(Screw Barrel 4periods,Head Piece 1 Periods)

l Heating Power:12KW

l Cooling Method :Forced Air Cool

l Cooling Zones : 4 periods

l Fan Motor Power : 180W*4= 0.72KW

l Electrical System : ABB Frequency Converter

l Temperature Control Meter : OMRON

l Driving Motor brand:Siemens

l Gear Box : Hard Tooth Face

l Central Height : 1000mm

l Size : 3360*1290*2127mm

l Weight : 800kg

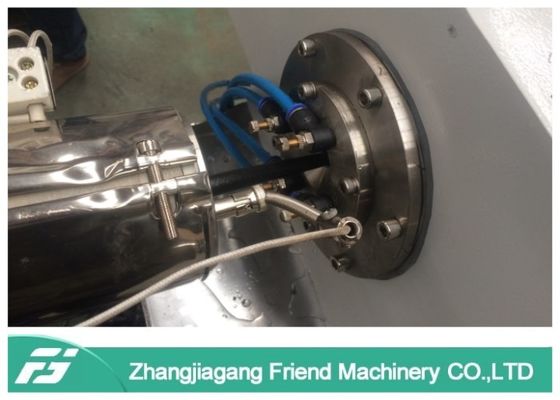

4





Mold and Die( with pressure sensor )

l Mold Material : Steel 40Cr

l Mold Size for 2.5mm X 4mm Connection head material : 45# carton steel

l Pressure sensor range: 0~7MPa~100MPa

l Accuracy : 1.0%FS

l Output sign : 0-5V,0-10V,4-20mA

l Power:24Vdc (12-36V)DC

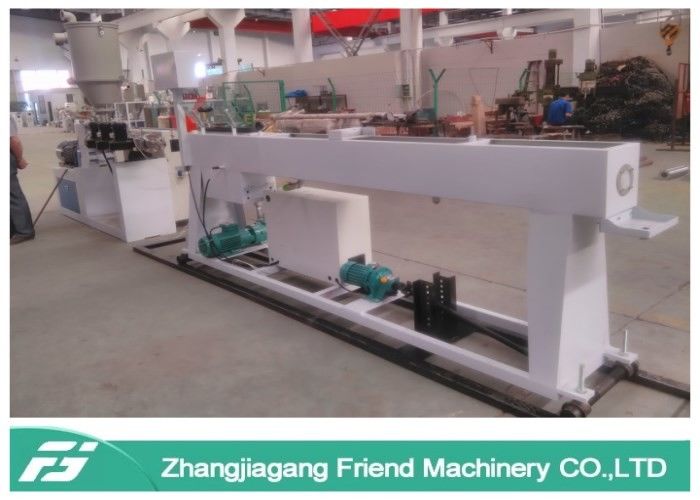

5 Vacuum and Water cooling tank
  • Vacuum forming part : Length: 1m
  • Vacuum pump power : 1.1kw
  • Material: stainless steel
  • Heating device for good quality pipe forming
  • Water cooling tank parts :
  • Length : 2m
  • Material : stainless steel
  • Machine structure material : Q235 steel
  • (height and direction adjustable)
  • Size : 3000*1120*310



6 Laser
  • Model : LGM25
  • Range of measurement : 0.1-25mm
  • Resolution ratio : 0.001
  • Measure accuracy : 0.001mm
  • Measurement: Laser scanning
  • Laser: red visible laser diode
  • Laser output power: <2mW
  • Operating voltage: ~ 220V ± 15% 50 - 60Hz or optional
  • Working temperature: -10 ~ 40 ℃
  • Humidity: <85% RH
  • Work mode: Continuous
  • Power consumption: <30W





30kg/H Capacity Hose Manufacturing Equipment For Nylon Car Oil Application 1
