Water Supply Pipe Drian Pipe HDPE Pipe Making Machine / Production Line For 63-630mm
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
|Minimum Order Quantity :||1 set||Price :||negotiation|
|Packaging Details :||film package , then in 2 sets 40HQ containers.||Delivery Time :||30-40 working days|
|Payment Terms :||L/C, D/A, T/T, Western Union||Supply Ability :||5 sets per month|
|Place of Origin:||Jiangsu Province, China||Brand Name:||Friend|
|Certification:||CE certificate||Model Number:||SJ120|
|Type:||630mm Big Diameter PE Solid Wall Pipe Making Machine / PE Pipe Extrusion Line||Raw Material:||Pe Granules And Recycling Pe Flakes|
|Final Product:||Solid Wall Pe Water Gas Pipe||Capacity:||500-600kg/h|
|Motor Brand:||Siemens Brand||Pipe Wall:||Solid Wall|
plastic pipe extrusion machine,
pvc pipe production line

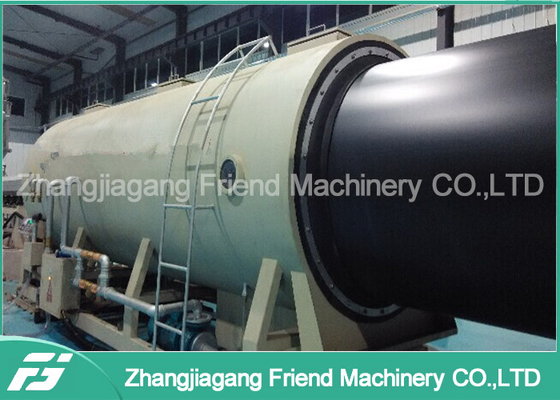

630mm Big Diameter PE Solid Wall Pipe Making Machine / PE Pipe Extrusion Line

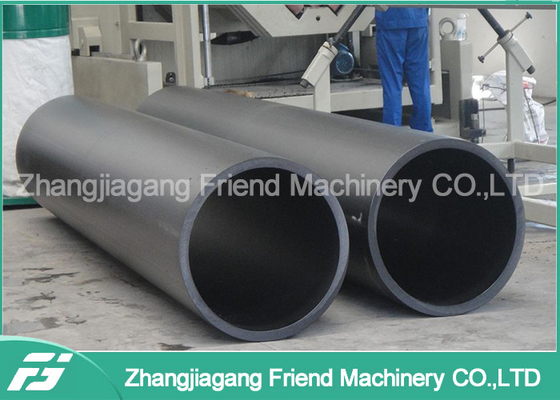

This Large diameter HDPE/MDPE fuel gas/water supply pipe machine is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.
PE Water and Gas Plastic Pipe Production Line/pe plastic pipe production line/plastic pipe aking machine is mainly designed specially for polylefin, polythylene pipe processing and suitable for PE PP PB PPR pipe high-speed extrusion.It adopts rugged compact reducer,shielding type separation screw,slot barrel,basket type extrusion die etc,which ensure the users can make high quality plastic pipe.
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
Main Technical Parameter:
pe pipe machine features:

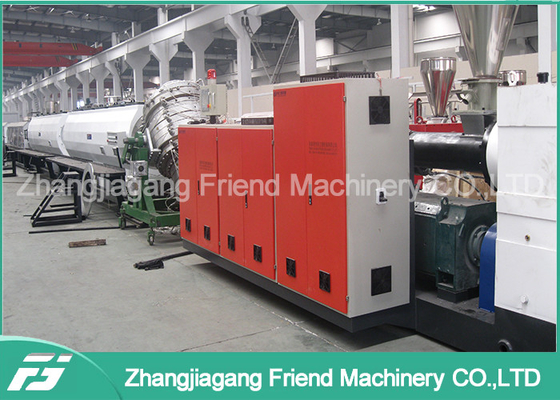

High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.
Constituent of the pe pipe machine
1, Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.
2, Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling.

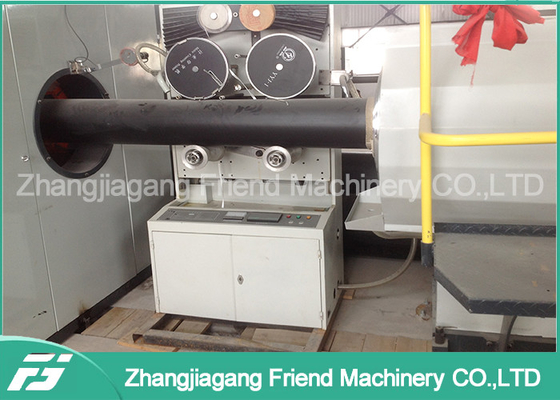

3, Adopts multi claws haul-off unit, speed adjusted by frequency inverter.
4, Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe.
5, Equipped with pipe-making line.
6, Small diameter use winding machine. Large dimaeter pipe used stacker;
Main technical parameter of 630mm Big Diameter PE Solid Wall Pipe Making Machine / PE Pipe Extrusion Line:
|Extrusion speed||1-15m/min||1.2-12m/min||0.6-8m/min||0.5-4m/min||0.4-3.7m/min||0.3-3m/min||0.2-2m/min||0.1-1 m/min|
|Line length||35m||38m||38m||40m||42m||52 m||60m||68m|
