High Precision PCL 3d Printer Filament Extrusion Line 18-25kg/H Capacity

Minimum Order Quantity : one set Price : negotiation
Packaging Details : Wooden package Delivery Time : 20 days
Payment Terms : L/C, T/T, D/A, D/P Supply Ability : 30 sets per month
Place of Origin: China Brand Name: Friend
Certification: CE Model Number: FLD-45

Detail Information

Material: PLA,ABS,PEEK,etc Warranty: One Year
Diameter: 1.75mm,3mm Tolerance: +_0.02mm
Capacity: 18-25kg/h Voltage: 380V,50HZ Or Customized
High Light:

3d printer filament maker

,

3d printer filament extruder machine

Product Description

High precision 18-25kg/h 3D printing filament extruding machine with PLA ABS





Application :

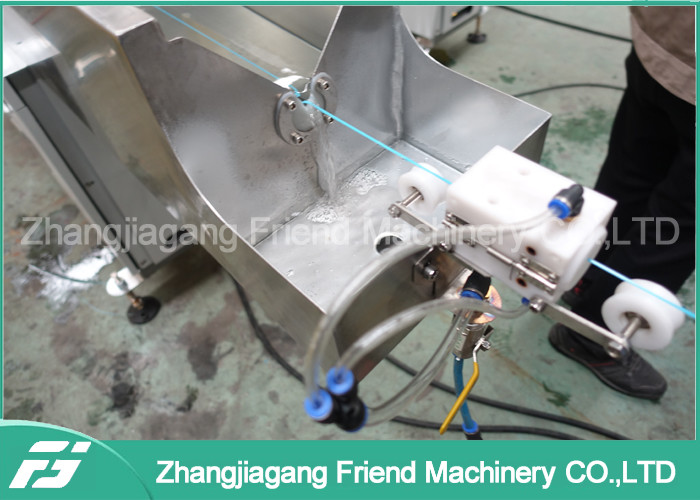

Low Temp. PCL 3D Printer Filament Extrusion Line can process different diameter filament. It can process ABS/PLA filament, PE/PP filament etc with different screw design. This line adopts Delta Inverter and orman temp. controller system so that the tolerance is within 0.03mm even it can be minus or plus 0.01mm . It is an ideal equipment to process 1.75mm and 3mm ABS/PLA filament. The screw can be taken and clean easily, so you can change the color easily. The water tank adopts two levels, one hot water and one cool water so that the filament can be controled quite round.





Configuration of Low Temp. PCL 3D Printer Filament Extrusion Line:



Machine Quantity
Hopper dryer 1SET
Extruder 1SET
Mould and die 2SETS (1.75mm and 3.0mm)

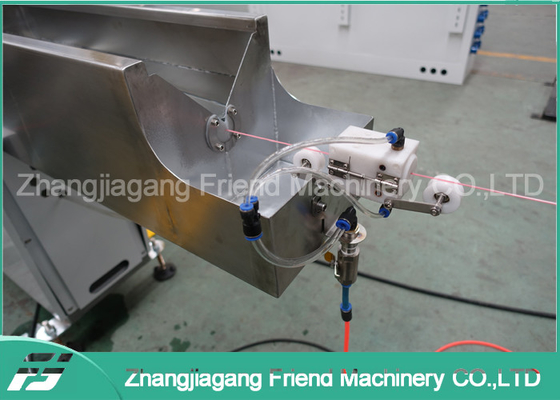

4 Meter Hot water tank 1SET
2 Meter Cold water tank 1SET

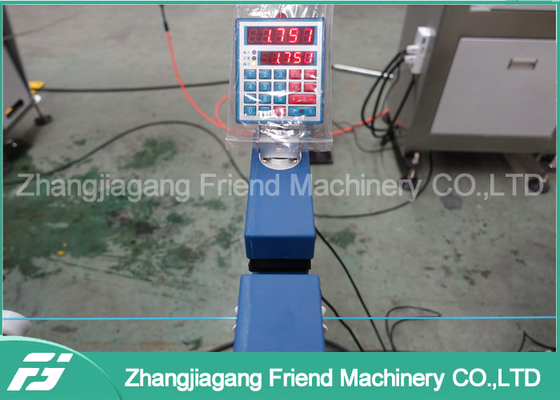

Laser measuring machine 1SET
Haul off machine 1SET

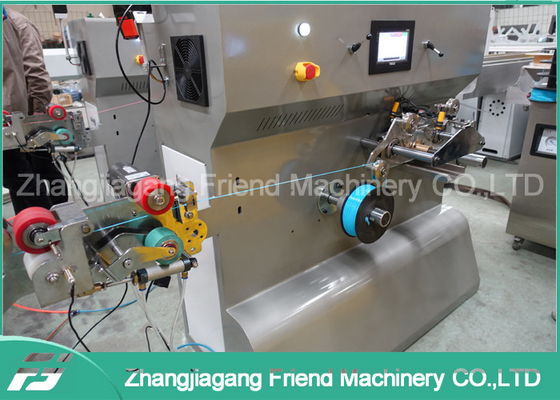

Winding machine 1SET





Technical parameters of Low Temp. PCL 3D Printer Filament Extrusion Line:



Extruder Type SHSJ-35 SHSJ-45
Motor power 7.5kw 15kw
Capability 8-12kg/h 16-20kg/h
Feeding raw material ABS/PLA/TPU/HIPS Pellet ABS/PLA etc. Plastic Pellet
Application 1.75mm, 2.85mm, 3mm 1.75mm, 2.85mm, 3mm
Tolerance

Normal : Minus or plus 0.03mm ,Even 0.02mm










High Precision PCL 3d Printer Filament Extrusion Line 18-25kg/H Capacity 0
