Two Rotors Single Shaft Shredder , Rubber Recycling Plastic Shredder Machine

Two Rotors Single Shaft Shredder , Rubber Recycling Plastic Shredder Machine

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Friend
Certification: CE,SGS,UV
Model Number: WT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: film packing and wooden case
Delivery Time: 30 making days after down payment
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Application: Plastic And Rubber Recycling Capacity: 300-1500kg/h
Motor: 30-75kw Brand: SIEMENS Brand
Control Box: Yes Color: Optional
High Light:

plastic shredder machine

,

plastic grinding machine

Product Description

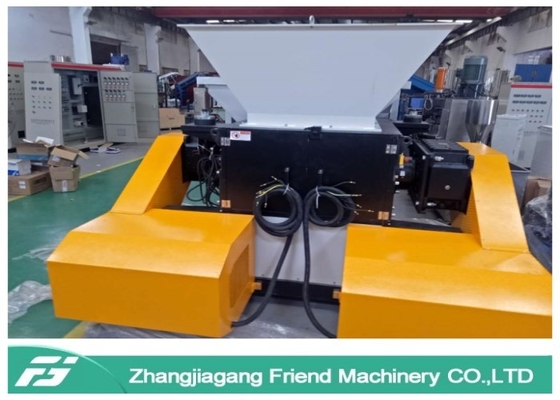

Powerful Two Rotors Single Shaft Shredder Grinding Crusher Machine



Description:



The shredder is mainly used to recycle, shred and crush the waste material; the applicable material include the big solid block of plastic, large diameter PE pipe, bundles of film, paper and fiber, blocks of wood, metal and so on.

Choosing the suitable model according to the size of the waster material; the shredder is divided to he single and double shaft.



Application:



• Plastics - Injection molding, extrusion, blown film and other common plastics, nose block, etc.



• Wood - wood pallets, logs, scrap wood, etc.



• Paper - Waste paper, wrapping paper, cardboard, etc.



• Cable - Copper, aluminum and composite materials cable, etc



• Aluminum - Cans, aluminum scrap, etc.



• Fiber - Carpets, protective clothing, etc.



• Sponge - Industrial waste, etc.



• Composite materials - glass fiber products, automotive windshields, sealing tape, etc.



Machine Parameters:

Item Description Specification
1 Model WT600
2 Process target

PA6GF20 and PBT GF30 lumps, thick plastic pipe,gas bottle...etc



3 Size of feed mouth 470*470mm
4 Size of crushing room 600*600(L*W)

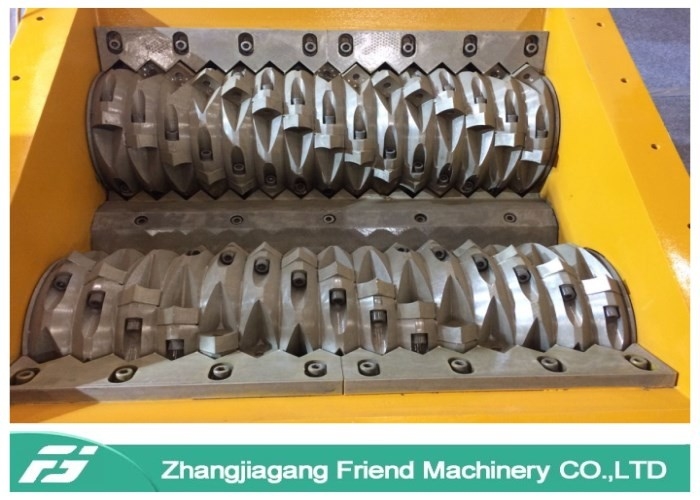

5 Diameter of rotator 280 mm (effective length 600mm )
6 Rotary speed for blade(rpm) 75 rpm

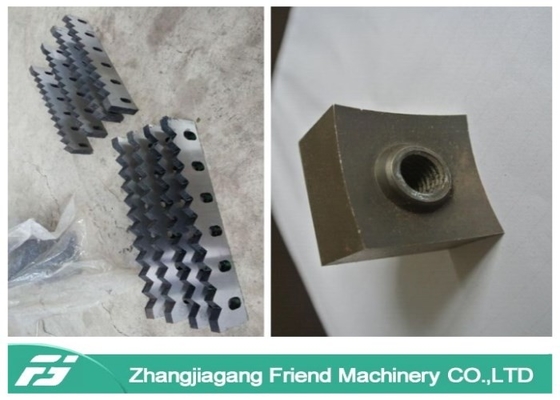

7 Blade material SKD-11
8 Hardness of blade HRC55-60 (depending on customer materials)
9 Qty of rotary blade 30 pcs
10 Qty of fixed blade 2 sets
11 Wall thickness of crushing room 20mm
12 Material of crushing room Q345B
13 Leg/ frame of shredder Q235B
14 Power of drive motor 22kw 230V 60Hz
15 Motor brand China brand with CE
15 Production Capacity 300kg /hr (up to final size and material condition )
16 Weight of the main machine Around 2400kg
Electric Details
17 Motor protection standard TP44
18 Noise (decibel) <75
19 Brand of gearbox Chinese famous brand with CE
20 Brand of bearing NSK brand
21 PLC China famous Brand with CE
22 Contactor Schneider Brand
23 Electric Relay Siemens Brand
Hydraulic system
24 Oil pump motor 2.2 kw
25 Max. Pressure of system 10 Mpa
26 Diameter of Hydro-cylinder 60 mm
27 Cooling type Air cooling
Feeding system
28 Feeding type Customized moving feeding type for pipe shape material
29 Distance of pushing materials 600 mm
30 Control system for forward and back China brand PLC control system
31 Protecting system Proximity Switch



Two Rotors Single Shaft Shredder , Rubber Recycling Plastic Shredder Machine 0

Why choose us?

We are a professional manufacturer of Plastic Extruders ,we produce plastic extrusion machine.

1. Cost performance is high

All the machine ,we make it ourself to reduce the cost of our customer.

2. Genuine product with excellent quality

We choose our material andequipment strictly.

All the material come to our factory must pass the quality test.

3. Engerneers available to serve oversea

4. Quick delivery

The company provide just in time delivery with its streamlined supply chain.

5. Cost saving

We take strong attention to every detail in the manufacturing process.

The quality control in our factory is very strict.

All defective semi-manufactures must be treated again or reject.

All the machine must be checked out ,then delivered to our customer.

All about that pushing up the price,but get good quality machine.

What we want to do is give our customer a good quality product with stable working and long lived.



Q: What is your delivery time?

A: Normally, it needs about 30 days. The exact time depends on production management.

Q: How long is your delivery time?

A: Generally it is 10-20 days if the goods are in stock. or it is 35-60 days if the goods are not in stock, it is according to quantity.
