PP PE Plastic Pelletizer Machine Water Ring Pelletizing System 300-400kg/H

PP PE Plastic Pelletizer Machine Water Ring Pelletizing System 300-400kg/H

Product Details:

Place of Origin: China
Brand Name: Friend
Certification: CE,SGS,TUV
Model Number: SJ110,SJ120,etc.

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: 40000-55000$ per set
Packaging Details: Standard package
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Condition: New Type: Granulating Production Line
Capacity: 200-300kg/h,300-400kg/h Model Number: Pelletizing Machine
Voltage: Customized Material: PP,PE,HDPE,LDPE Granule
After-sales Service Provided: Engineers Available To Service Machinery Overseas Control Cabinet: PLC Or Manual
High Light:

PP Water Ring Pelletizing System

,

400kg/h plastic pelletizing line

,

PE Water Ring Pelletizing System

Product Description

Water ring pelletizing system PP PE plastic recycling granulating production line



The production line adopts the Japanese technology, mainly used for washed, crushed PE, PP film pelletizing.



1. The production line can feed the washed and crushed PE, PP film into single screw extruder then pelletize directly. Does not destroy the structure and physical properties of the raw material molecules, and more energy efficient than traditional aggregation feeding.

2. Single screw extruder unit selects large aspect ratio of the screw, with a special exhaust device, can effectively remove the moisture, with high productivity.

3. Production line with water ring pelletizing, particle uniformity, beautiful appearance.





Features & Technique:



a. The efficient forced feeding ensures high feeding and low energy consumption.

b.It equipped with a special design of the barrel and screw and single screw exhaust system, can ensure high yield.
c. The cutting system adopts extrusion die head water ring to cut, which can ensure the perfect appearance of particle.
d. The auxiliary machine has the particle cooling and grading machine.



+PE,PP,PS, etc filled and degradative master batch.

+PPR pipe compounds, PE compounds for cross linked pipes.

+Color concentrate of PE,ABS,PS,EVA, etc. Flame retardant master batches of ABS,EVA etc.

+PE,EVA etc filled with CaCO3, talc, TiO2, carbon black etc; Cable sheath, cable insulation compounds of LDPE,HDPE,LLDPE,MDPE.

+Client customize: If with agglomerator, PP/PE will be transported into agglomerator

by conveyor then feed into extruder after agglomerated.





200--300kg/h PE PP Film Granulating Line



A. DS60 Conveyor 1 set
1 Motor power 1.5kW
2 Belt width 600mm
B. Agglomeration machine 1 set
1 Motor power 45 kW
2 Rotary blade speed 900r/min
3 Cutting tube diameter φ800
4 Quantity of rotary blade 15pcs
5 Quantity of fixed blade 2pcs
6 Equipped with a good cleaning device, easy to clean the materials inside tude
C. SJ120 Extruder 1 set
1 Extruder screw diameter Φ120
2 Screw material 38CrMoALA nitriding treatment:depth≥0.5mm
3 Aspect ratio 25:01:00
4 Motor power 55kW(frequency control)
5 temperature control instrument Omron
6 Contactor Schneider
7 Cast aluminium heater and fan cooling Heating power:4 groups 5kw/group Fan:0.18kw/group
8 Mold heating 2groups 4kW total 8kW
D. Hydraulic automatic screen changer Oil pump motor power:2.2kW
E. Water ring pelletizer 1 set
1 Pump motor power 2.2kW
2 Pelletizing motor power 1.5kW (frequency control;revs:2800r/min)
3 Quantity of blade 2pcs
4 The blade adapter and pellet shaft are made of stainless steel
F. Vertical dewatering machine 1 set
1 Motor power 5.5kW(frequency control)
2 Spindle speed 1440rpm
3 Dehydration tube, shaft, spiral, separator, etc. are made of stainless steel.Drains under the machine
G. Air delivery equipment 1 set
1 Fan powder 3kW
2 The hopper, air conveying pipe ejector are made of stainless steel
H. Drying whirlwind hopper
1 Hopper capacity 0.5m3
2 The hopper material is stainless steel Drying powder:9kW, Particle moisture content:1%






Pictures:

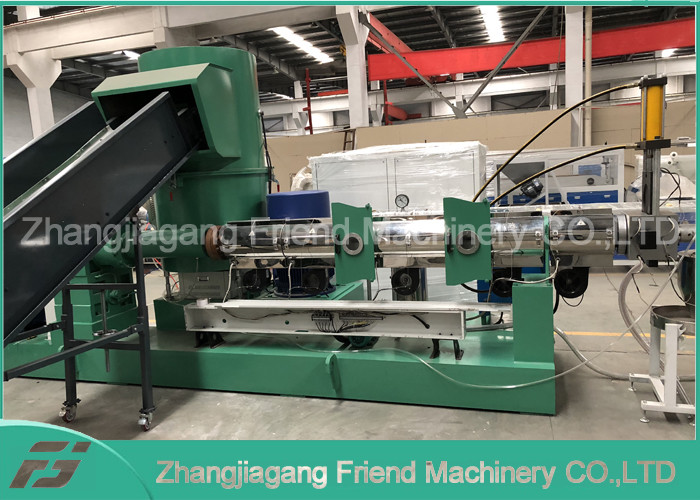

PP PE Plastic Pelletizer Machine Water Ring Pelletizing System 300-400kg/H 0

PP PE Plastic Pelletizer Machine Water Ring Pelletizing System 300-400kg/H 1
