White Pvc + Wood Board Wpc Board Production Line 1220mm Width 5mm Thickness

White Pvc + Wood Board Wpc Board Production Line 1220mm Width 5mm Thickness

Product Details:

Place of Origin: JIANGSU, CHINA
Brand Name: FRIEND
Certification: CE,SGS
Model Number: SJSZ-80/156

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 100000-150000 PER SET
Packaging Details: STANDARD WOODEN PACKAGE
Get Best Price Contact Now

Detail Information

APPLICATION: WPC BOARD MOTOR: 55KW
MOTOR BRAND: SIEMENS BEIDE TRANSDUCER: ABB BRAND
EXTRUSION SPEED: 4 METERS PER MINUTE CAPACITY: 400 KG/H
High Light:

wpc board making machine

,

wpc extruder machine

Product Description



1220mm width 5mm thickness WPC board production line White PVC+WOOD board production line



Application

With special designed screw ,barrel.moule and producing process WPC board making machine can produce various thickness of wpc board which can be used in different areas such as door, window, floor ect.

1. With scientific and reasonable technology,the machine has high efficiency and runs stably

2. This production line can produce wpc products of different specifications only to change mold.

3. The production is smooth and hard

PVC FOAM BOARD MACHINE, PVC FOAM SHEET MACHINE, PVC FOAM BOARD EXTRUDING MACHINE

Screw Design: Conical double screw
Model Number: SJSZ80/156
Voltage: 380-440V
Main Motor Power: 75kw
Dimension (L*W*H): 25m*3m*3m
Weight: 28t
Output of plastic plate: 400kg/h
Plastic Processed: PVC and WPC
Finished Product: PVC/WPC foam board
Specification of finished board: 1220*2440*(3-20) mm or 915*1830*(3-20)mm
Density of finished board: 0.37-0.85 adjustable
Application of Foam Board: building template, furniture board, decoration board, advertisement board, wall panels, roof, car and boat board etc.
After-sales Service Provided: Engineers available to serve overseas
Packing Details: Wood package and PE film covered 2 containers.



Technical parameters

Model for extruderSJSZ80/156SJSZ92/188
Rotational speed (r/min)1-38 1-32.9
Main extruder power (kw)55 110
Heating power (kw)36 45
Extrusion output (kg/h)100-400 400-500
Max. product wide (mm)12201830
Draw-off speed (m/s)0-3 0-2.5
Thickness(mm)<30<30

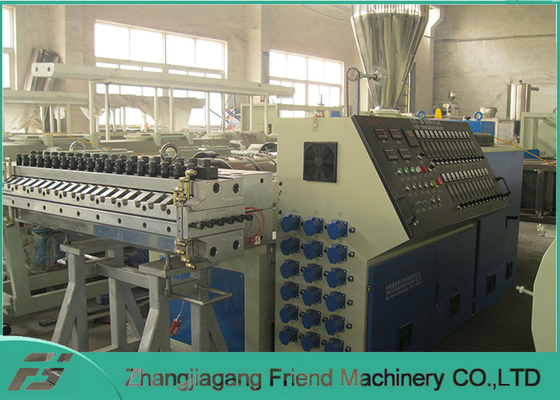

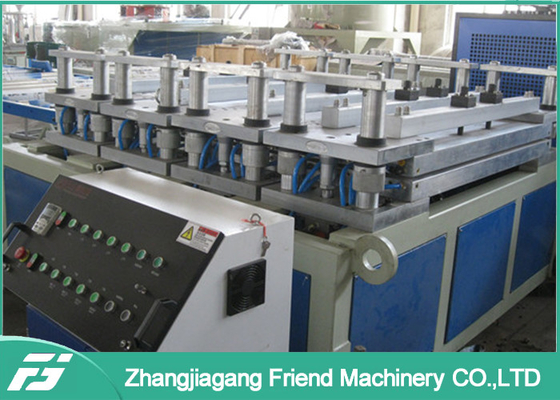

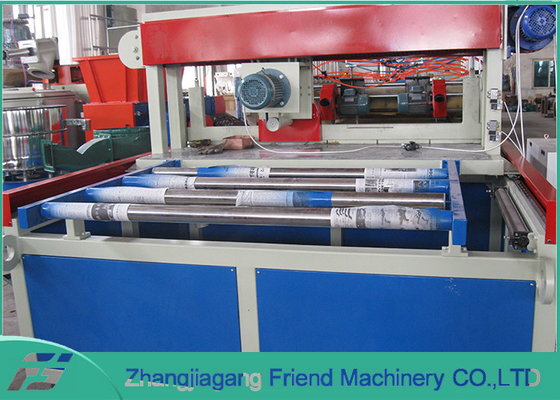

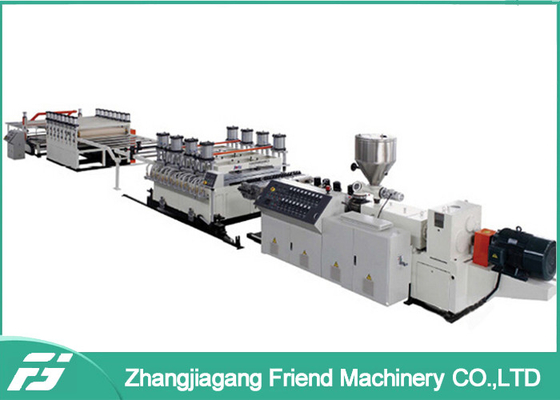

Machine pictures
White Pvc + Wood Board Wpc Board Production Line 1220mm Width 5mm Thickness 0
White Pvc + Wood Board Wpc Board Production Line 1220mm Width 5mm Thickness 1


RFQ

1. Q: If I need the machine urgently, what will you do?

A: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.

2. Q: If my machine can not work when I receive it, what will your factory do?

A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.

3. Q: If my machine is broken within one year, what your factory will do?

A: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.

4. Q: How can I believe your factory and machines.

A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.

5. Q: How many days needed to finish the machine and what is about the payment?

A: Normally we use T/T payment. And normal machine need 30 working days. If we have the same machine in storage, it can be finished with 7 working days.
