PEEK 3D Filament Extruder Machine For Making PEEK 3D Printing Filament

PEEK 3D Filament Extruder Machine For Making PEEK 3D Printing Filament

Product Details:

Place of Origin: JIANGSU PROVINCE,CHINA
Brand Name: FRIEND
Certification: CE, SGS
Model Number: FLD45

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 20000-35000 PER SET
Packaging Details: Film package, then in standard wooden case
Delivery Time: 10-30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40 SETS PER MONTH
Get Best Price Contact Now

Detail Information

Usage: To Extruding PEEK Printer Filament Maximum Heating Temperature: 340-400℃
Capacity: 3-10kg/h Material: PEEK, Or Other High Temperature Material
Motor Brand: Siemens Brand Temperature Controller: Omron Or RKC Brand
Tolerance Filament: ±0.03mm Color: Original PEEK Color
With Carbon FIber: Mix At Fixed Rate
High Light:

3d printer filament maker

,

3d printer filament making machine

Product Description

PEEK Material 3D Filament Extruder Machine for Making PEEK 3D printing Filament





3D printing is a revolutionary technology since 2012 . 3d printing has became more and more popular for all kinds of industries. With the rise of 3D printing technology ,our Zhangjiagang Friend Machinery Co.,ltd company developed the PEEK Material 3D Filament Extruder Machine for Making PEEK 3D printing Filament . we have sold the High Tolerance PET, PEI , PEEK 3D Printer Filament Extruder and Making Machine to a lot of developed countries like Germany, Italy,France,UK,USA,Russia and so on.





PEEK, the superman of polymers. Currently one of the most popular high performance plastic materials on the market. In the polymer space, it would be tough to find something tougher than PEEK. It exhibits excellent mechanical and thermal properties, chemical inertness, creep resistance at high temperatures, very low flammability, hydrolysis resistance, and radiation resistance. These properties make PEEK popular in the aircraft, automotive, semiconductor, and chemical processing industries.





Below is a list of some of the advantages and disadvantages of using PEEK:



Advantages of PEEK Material 3D Filament Extruder Machine for Making PEEK 3D printing Filament:



Highly fire-resistant
Good chemical resistance
Can be used for high temperature applications
Excellent mechanical and dielectric properties





Disadvantages of PEEK Material 3D Filament Extruder Machine for Making PEEK 3D printing Filament :



Relatively high cost material
Anisotropic
High temperature molding and extrusion required





To make standard plastic filament, you not only need extruder, but also need other down stream machines.:

Machine configuration:





Machine configuration
No.
Machine
Quantity
1.
Color mixer
1 set
2.
Vacuum feeder+ Hopper dryer
1 set
3.
SJ extruder with mould
1 set
4.
Air cooling and forming Tank
1 set
5.
Cold water tank
1 set
6.
Laser measuring machine
1 set
7.
Haul off machine
1 set
8.
Winding machine
1 set
9.
Filament accumulator
1 set
10.
Vacuum packing machine
1 set

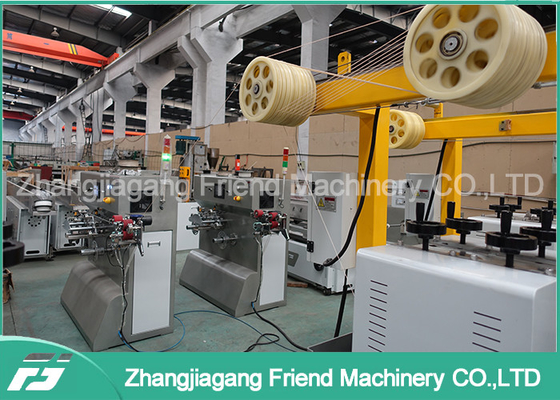

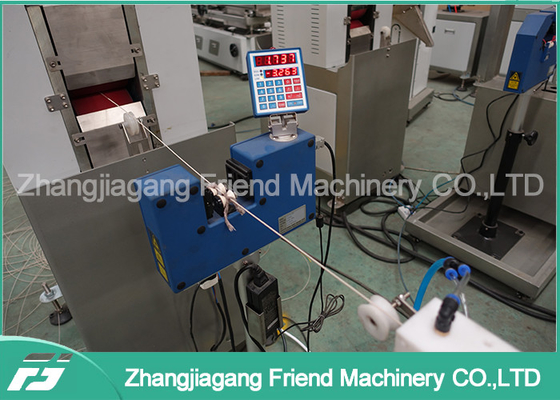

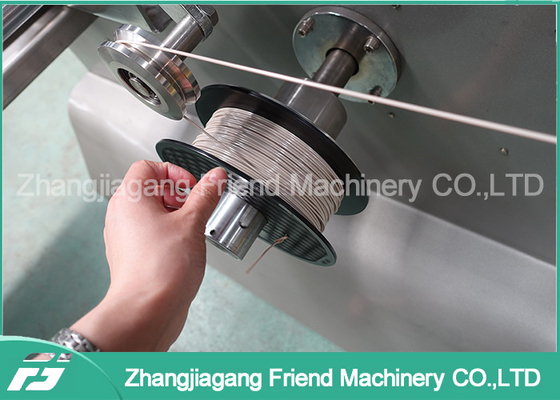

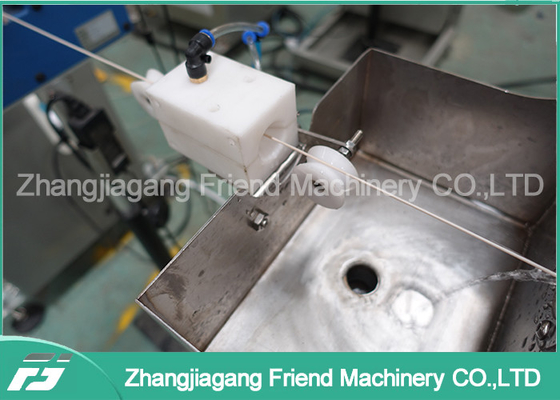

PEEK Material 3D Filament Extruder Machine for Making PEEK 3D printing Filament Detailed pictures as follows:



PEEK 3D Filament Extruder Machine For Making PEEK 3D Printing Filament 0PEEK 3D Filament Extruder Machine For Making PEEK 3D Printing Filament 1
