| Brand Name: | Friend |
| Model Number: | FLD35A |
| MOQ: | 1 set |
| Price: | 22500$ |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 sets per month |
3D Printer Filament Extruding Machine/PEI PEEK PFDV PETG Filament Producing Machine
ABS/PLA Plastic Filament Extruding Machine, Plastic Filament Extruder ABS PLA 3D printer filament production line 3D filament production line 1.75mm 3.00mm printer filament extruder Plastic 3D Printer PLA/ABS Filament Extrusion Machine/Production Line with
Introduction of 3D printer filament extrusion machine:
3D Printer extrusion machine is a device which can "print" the 3D object, function as the laser forming technology, adopts the
hierarchical processing,principle of superposition forming, through increased material step by step stack to generate 3D entity. 3D printing technology is not very complicated itself, but the available consuming materials was a difficulty. Ordinary printer consumables is ink and paper, but the 3D printer consumables are mainly plastic and other powder, and must through special processing, also high requirement of the curing reaction speed 3D printer is a device which can "print" the 3D object, function as the laser forming technology, adopts the hierarchical processing, principle of superposition forming, through increased material step by step stack to generate 3D entity.
3D printing technology is not very complicated itself, but the available consuming materials was a difficulty. Ordinary printer consumables is ink and paper, but the 3D printer consumables are mainly plastic and other powder, and must through special processing, also high requirement of the curing reaction speed.
2. Work Flow of the ABS/PLA Plastic Filament Extruder Machine :
25KG Hopper dryer→ 45/28 Single Screw Extruder → Die →Stainless Steel Warm Water Tank→Stainless Steel Water Cooling tank →Laser guage→Haul-off Machine→Horizontal Storage rack→Double Station Winder
3.Main Equipment of the ABS/PLA Filament Extruder:
| Mode | FLD-45A | FLD-35A | FLD-35B | FLD-50A |
| Capacity(kg/h) | 20-25 | 10-15 | 5-8 | 30-40 |
| Motor power(kw) | 15 | 7.5 | 5.5 | 15 |
| Total length(m) | 12 | 11 | 5.8 | 15 |
| Filament Quantity | 1 | 1 | 1 | 1 |
| Diameter(mm) | 1.75,2.85,3.00 | 1.75,2.85,3.00 | 1.75,2.85,3.00 | 1.75,2.85,3.00 |
| Tolerance(mm) | 0.02 | 0.02 | 0.03 | 0.02 |
| Working Temperature(℃) | 0-280(A) 0-480(B) | 0-280(A) 0-480(B) | 0-280(A) 0-480(B) | 0-280(A) 0-480(B) |
| Water consumption(Mpa) | 1 | 1 | 1 | 1.5 |
| Air supply | 0.5 | 0.5 | 0.5 | 0.5 |
| Certification | CE SGS TUV | CE SGS TUV | CE SGS TUV | CE SGS TUV |

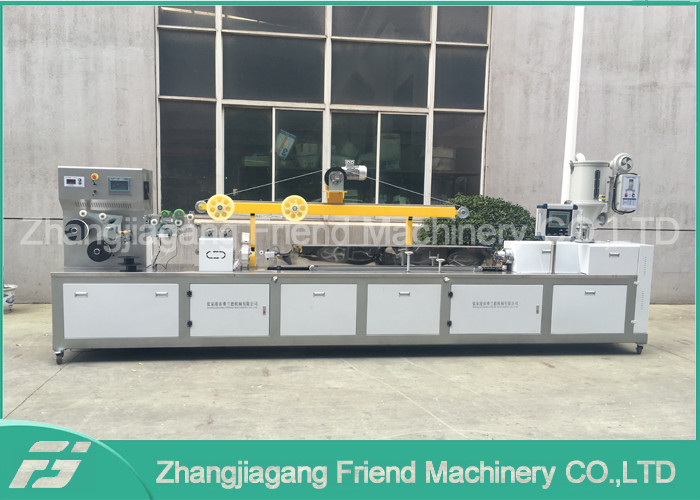

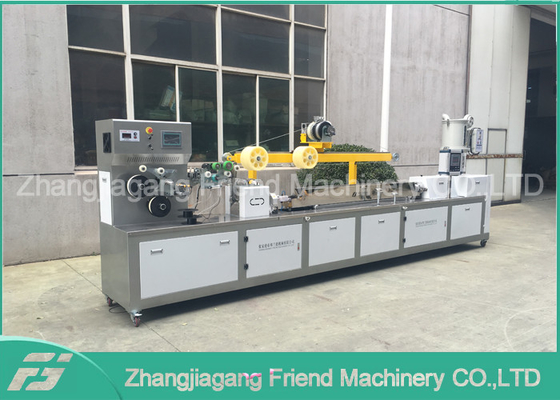

Pictures:
