Mask Nose Wire 25kg / H Plastic Profile Production Line

Mask Nose Wire 25kg / H Plastic Profile Production Line

Product Details:

Place of Origin: China
Brand Name: Friend Machinery
Certification: CE
Model Number: SJB-45

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Usd+28,500+Set
Packaging Details: Film package
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1+Set+per 35 day
Get Best Price Contact Now

Detail Information

Application: Profile Screw Design: Single-screw
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Field Maintenance And Repair Service,Video Technical Support Condition: New
Plastic Processed: PE,PP Voltage: 380V 50HZ 3Phase(Customized)
Motor: Siemens Usage: Profile/tile
High Light:

Siemens nose bar machine

,

25kg / h nose bar machine

Product Description

PP PE Nose Bridge Bar for Face Mask Extruder



This production line is used for PP PE masks nose wire extruding.

Capacity:20-25kg/h

Extruder:SJ-45 single screw extruder

Machine line length:17m

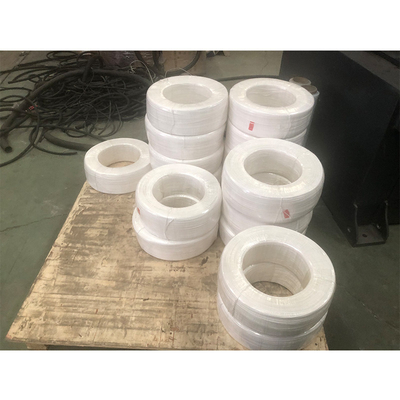

All-plastic nose bridge strips are mainly used in medical masks and disposable masks.
Mask nasal bridge strip is covered with single / double iron wire and covered with polyolefin resin. It has the advantages of bending and deforming under the action of external force, and will not rebound after losing external force. , Plays the role of a mask fixed on the bridge of the nose.



Mask nasal bridge strip usually specifications:

3.00mm * 0.80mm, 3.50mm * 0.80mm, 3.80mm * 0.80mm, special specifications can be customized.

The equipment consists of the following:



Composition of high-speed medical mask nose bridge strip extruder equipment:

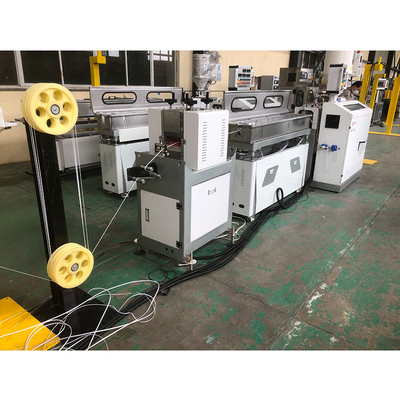

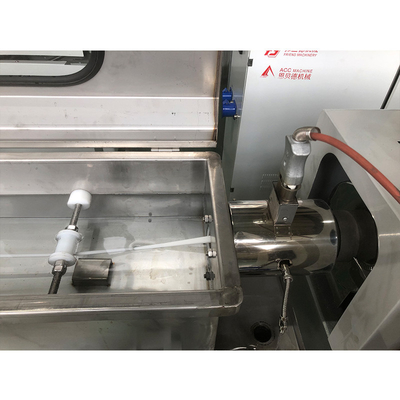

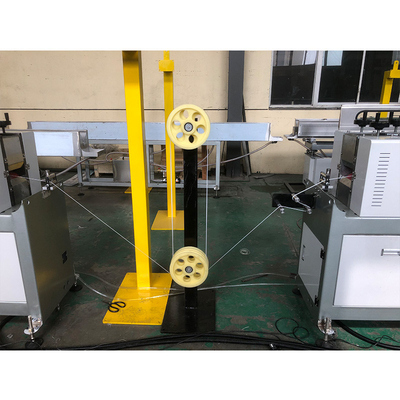

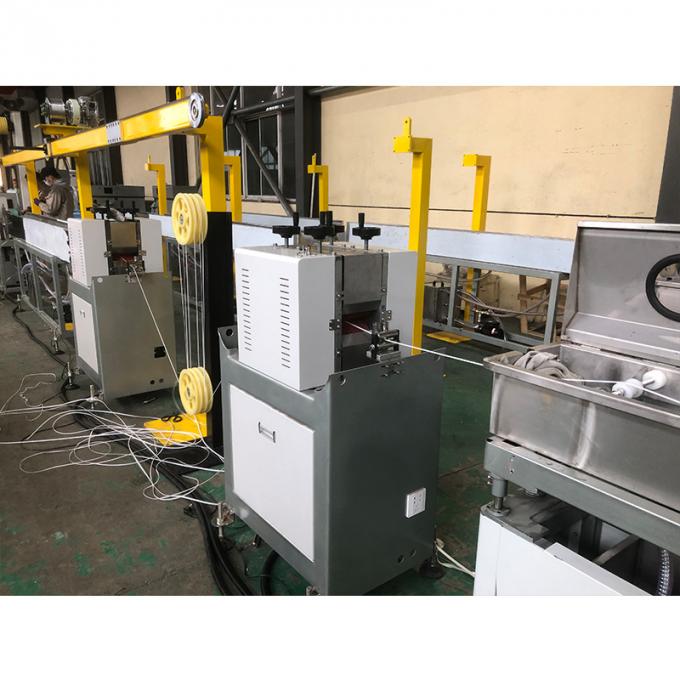

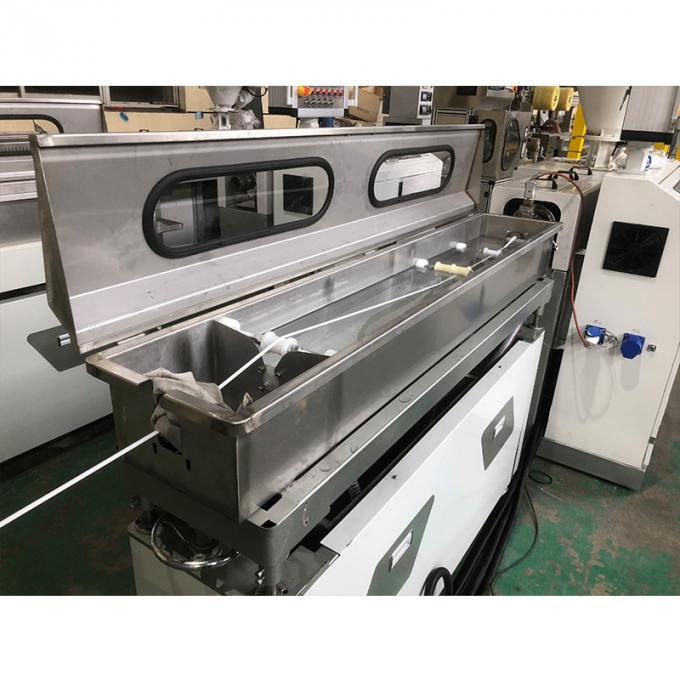

Double-headed iron wire pay-off stand ------ iron wire cleaning device ------ iron wire preheater ------ iron wire straightening platform ------ 40 extrusion host ----- -Electric box control cabinet ------ 1.5m constant temperature water tank ----- 6m cooling water tank ------ 9m horizontal wire storage rack ------ double wheel tractor-- ---- Double shaft take-up machine

Model
Screw Diameter
Capacity
Main Motor Power
Length
FLD-45A
45mm
20-25kg/h
15kw
19m
