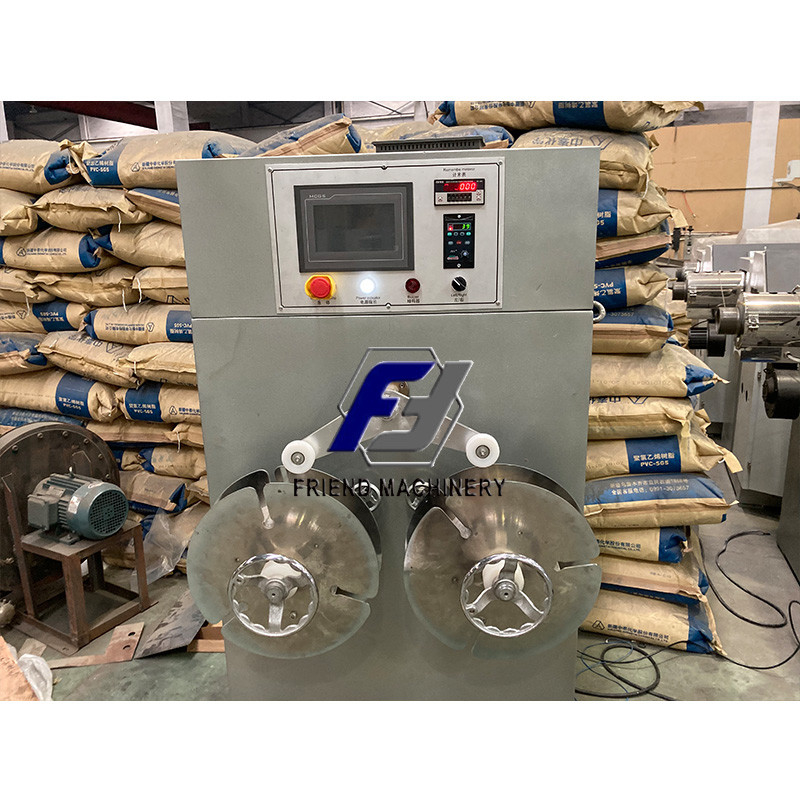

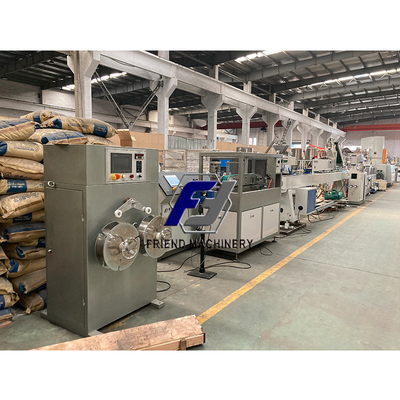

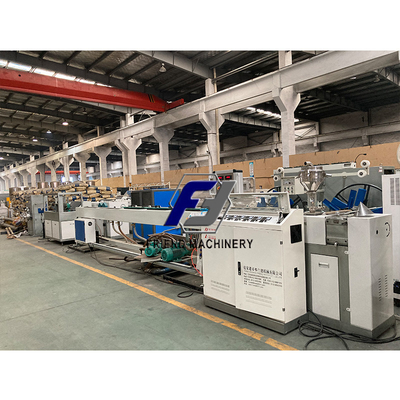

Auto Powder Feeding 150kg/H 16mm Plastic PE Pipe Extrusion Line

Auto Powder Feeding 150kg/H 16mm Plastic PE Pipe Extrusion Line

Product Details:

Place of Origin: China
Brand Name: Friend Machinery
Certification: CE SGS
Model Number: FLD-45

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $+19000-28000+set
Packaging Details: Film package
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1+days+35
Get Best Price Contact Now

Detail Information

Condition: New Application: Pipe,drain Water For Clothing Washer
Plastic Processed: PE,PP,PVC,PP PE HDPE,HDPE/PP /PE/PPR After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Warranty: 1 Year Name: PE Pipe Production Line,pe Pipe Extruder Machine,new Coming Pe Hdpe Pipe Extrusion Line,HDPE PP PE PPR Pipe Production Line/extrusion Machine/making Machine,16-63mm PPR Pipe Making Machine/PPR Pipe Machine
Type: SJ-65 SJ-90 SJ-65/33,Extrusion
High Light:

150kg/h PE Pipe Extrusion Line

,

16mm PE Pipe Extrusion Line

,

150kg/h plastic pipe extrusion line

Product Description



PE Plastic Processed and Pipe Application Production line for PE drip irrigation pipe


The Single Wall Corrugated Pipe Machine can be used to produce corrugated pipes of PE, PP,EVA, PVC, PA continuously. Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resistance, high intensity and good flexibility,etc. They are widely used in fields of auto wire harness, electric thread-passing pipes, circuit of machine tool, protective of lamps and lantern wires, tubes of air conditioner and washing machine etc.



PE pipe for water supply and drainage system application, this extrusion line can equip different conic single screw extruder for making different size pipe. It can have the following features:

1: Pipe diameter from 16mm upto 1600mm
2: With different kind wall thickness for different application
3: Can make the pipe have different layers, such as: Middle use recycled material and inner and outer layer use new material
4: Can also have color line co-extrusion for choice
5: Can have some word to be printed on that.
6: Can have auto powder feeding machine for choice
7: Can have PLC touch screen control
8: This line have CE and ISO9001-2000 quality certificate.

Model
Main extruder motor
Product diameter
Production capacity
Heating capacity
FLD-63
30kw
16-63mm
150kg/h
18.5kw
FLD-110
37kw
20-110mm
120-240kg/h
20kw
FLD-250
95kw
75-250mm
300-350kg/h
40kw
FLD-315
110kw
110-315mm
400-500kg/h
49kw
FLD-450
185kw
110-45mm
500kg/h
60kw
FLD-630
255kw
315-630mm
800kg/h
60kw
FLD-1200
355kw
630-1200mm
1300kg/h
84kw





The application for plastic single wall corrugated pipe
Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resistance, high intensity and good flexibility,etc.they are widely used in fields of auto wire harness, electric thread-passing pipes, the circuit of machine tool, protective pipes of lamps and lantern wires, tubes of air conditioner and washing machine, etc. Applications: plastic single wall corrugated pipe making machine can produce electrical thread-passing pipes, circuit of machine tool,protective pipe of lamps,water pipes in conditioner,washing machine, bathroom, etc.
