880mm PMMA PVC Profile Extrusion Machine For Standard Glazed Tiles

Minimum Order Quantity : 1 set Price : USD 91200-95400 per set
Packaging Details : film package Delivery Time : 35 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets per month
Place of Origin: Jiangsu, China Brand Name: FRIEND MACHINERY
Certification: CE ISO Model Number: SJSZ80+SJ50

Detail Information

Condition: New Voltage: 380V 50HZ 3Phase(Customized)
Processing Type: Co-extrusion Application: Profile,Sheet
Plastic Processed: PVC+ASA/PMMA Name: PVC Profile/tile Line
High Light:

PMMA pvc profile extrusion machine


880mm pvc profile extrusion machine


880mm pvc profile extrusion line

Product Description

PVC Profile Manufacturing Machine For Plastic Glaze Roof Tile Making

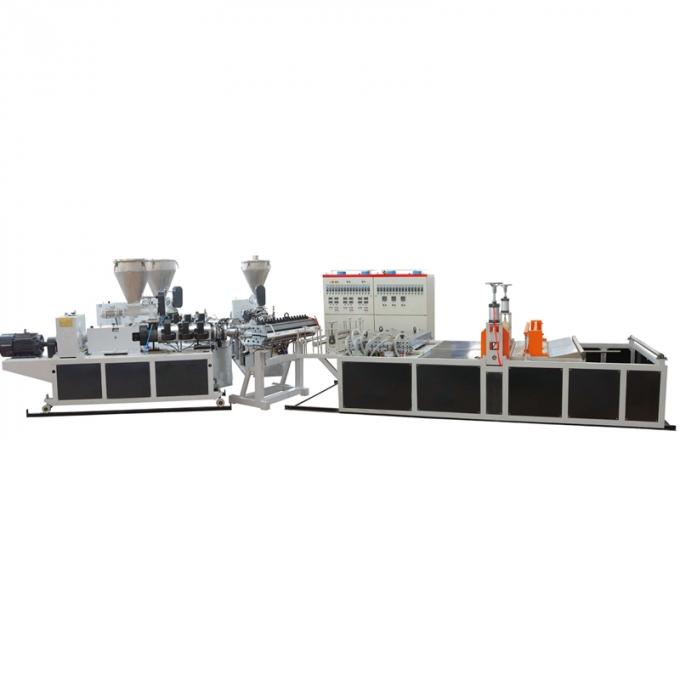

The glazed tile production line designed and produced by Zhangjiagang Friend Machinery Co., Ltd. consists of an extruder, a die and a forming auxiliary unit, which can continuously produce glazed tiles. The glazed tile production line has the characteristics of high production efficiency, reasonable and compact structure, convenient use and maintenance, and long life.

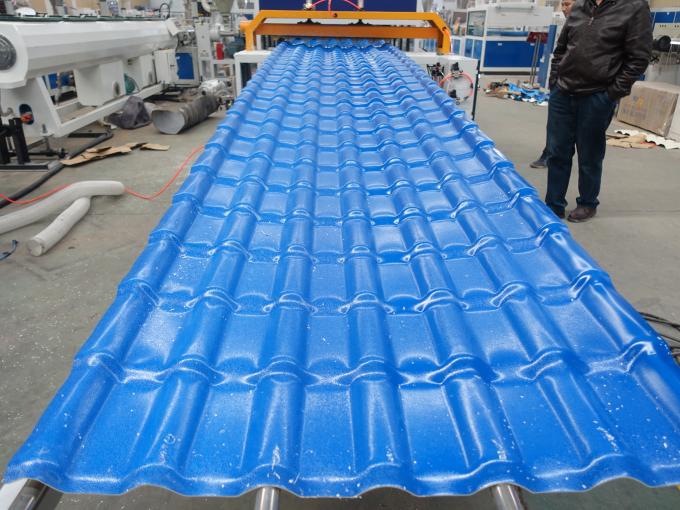

Glazed tiles are usually 880mm and 1050mm, with a thickness of 3mm and a weight of 6kg per square meter.


The main component of glazed tile is pvc, and the surface layer is generally asa or pmma.

The surface layer material of glazed tile is the most critical. The choice of surface layer material directly affects the service life of glazed tile. In most cases, the super weathering material asa or pmma is selected through surface co-extrusion and finally formed. The weather resistance of the product directly leads to the service life of glazed tiles. At the same time, the quality of glazed tiles is also related to the amount of surface materials used and co-extrusion technology.

Standard glazed tiles can resist acid, alkali, salt and other chemical substances for a long time. Experiment soaking in salt, alkali and various acids below 60% has no chemical effect for 24 hours. Inferior glazed tile surface layer, its pigment will produce chemical reaction and even fade.

Glazed tile is a new generation of light environmentally friendly building materials. The products are environmentally friendly, energy-saving and recyclable. Its unique performance advantages have won the general attention and recognition of the construction industry, and the product market is very broad.


More Photos

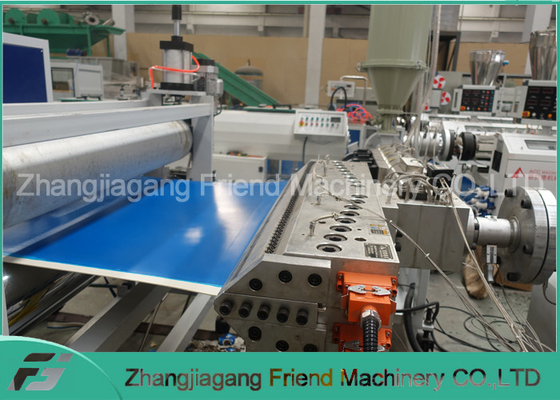

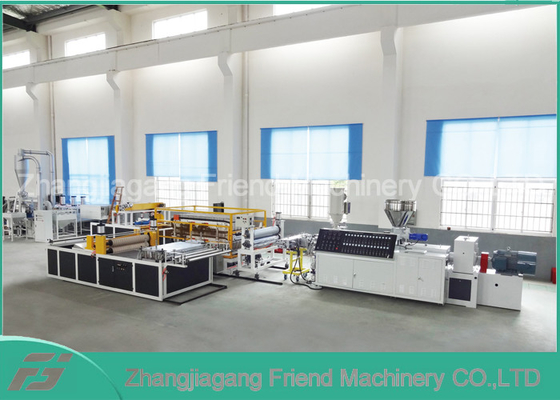

880mm  PMMA PVC Profile Extrusion Machine For Standard Glazed Tiles 0880mm  PMMA PVC Profile Extrusion Machine For Standard Glazed Tiles 1
