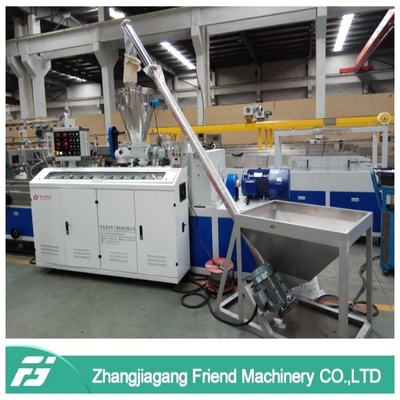

900mm Width WPC Board Production Line With PVC Resin Material Easy Operation
Contact Person : Coco
Phone Number : +8618013292369
WhatsApp : +8618013292369
|Minimum Order Quantity :||1 set||Price :||negotiation|
|Packaging Details :||ilm packing and wooden case||Delivery Time :||30 making days|
|Supply Ability :||20 sets per year|
|Place of Origin:||Jiangsu,China||Brand Name:||Friend|
|Material:||Wood+PVC/PE Powder||Extruder Type:||Conical Twin Screw Extruder|
|Capacity:||250kg/h||Control System:||Import Brand|
Conical WPC Board Production Line,
250kg/h WPC Board Production Line,
WPC Conical Twin Screw Extruder
Environmental Protection WOOD+ PVC/PE Board Profile/Plate Extrusion Production Line

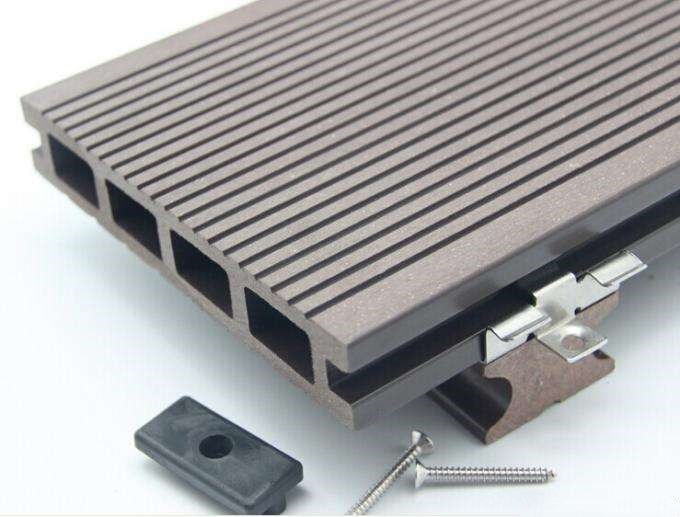

Wood plastic composite is a kind of is mainly composed of wood, wood fiber, plant fiber) on the basis of material and thermoplastic polymer material (plastic) and processing AIDS, etc., after mixing heating extrusion mold equipment, made of a high-tech new type of green environmental protection decoration material, performance and characteristics of both wood and plastic, is a new kind of composite material substitute for wood and plastic.
(1) waterproof and moisture-proof.The problem of easy to rot and expand deformation after moisture absorption in wet and multi-water environment is solved, which can be used in the environment where traditional wood products cannot be applied.
(2) insect repellant and termite protection can effectively eliminate pests and prolong the service life.
(3) colorful, there are many colors to choose from.It has both natural wood and wood texture, and it can be determined according to its own personality.
(4) strong plasticity, can achieve personalized shape very simply, fully reflect the individuality style.
(5) high environmental protection, pollution-free, pollution-free and recyclable.The product does not contain benzene material, formaldehyde content is 0.2, below EO level standard,
Wood plastic board is the European standard for environmental protection, which can be recycled and used to save the wood use. It is suitable for the sustainable development of the state policy and the benefit of society.
(6) high fire resistance.Effective fire retardant, fire rating reaches B1 level, fire self-extinguishing, do not produce any poisonous gas.
(7) good machinability, can be ordered, planed, saw, drillable, surface can be painted.
(8) easy installation, convenient construction, no complicated construction process, saving installation time and expense.
(9) no crack, no expansion, no deformation, no maintenance and maintenance, easy cleaning, late maintenance and maintenance costs.
(10) good sound absorption, good energy saving and energy saving up to 30%.
1.1. Material and Capacity
|Suitable material||PVC powder|
|Size||200-250mm width ceiling panel|
1.3 working condition(buyer supply)
|Temperature /Humidity||≤40℃, ≤95%|
|Power||3P, 380V, 50 Hz|
|Cooling Water||≤20℃ ≥0.3Mpa ～3L/min|
|Wire /Cable :||switching from power to production line control cabinet;From the control cabinet to each machine supplied by buyer|
|Lubricating Oil||L-CKC220/320 Medium load industrial gear oil|
|Operation Direction||From Right To Left|
|Color||Friend Machinery Standard|
II. Equipment list

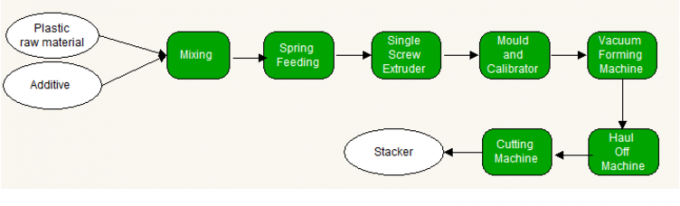

Screw Loader--------Mixer Unit------Spring Loader-------Conical Twin Screw Extruder ------- Mold --------Vacuum Calibration Tank------Thermal Transfer Machine----------Haul Off--------Knife lift Cutting Machine--------Stacker----------Crusher--------Milling Machine
|1.||DTC1000 Screw Loader||1set|
|2.||SRLZ-300/600 Mixer Unit||1set|
|3.||ZJF300 Spring Loader||1set|
|4.||SJSZ-55/110 Conical Twin Screw Extruder||2set|
|6.||ZK-160 Vacuum Calibration Table||1set|
|7.||Thermal Transfer Machine||1set|
|8.||QY-160 Haul Off||1set|
|9.||QG-160 Knife Cutting Machine||1set|
|12.||MF-500 Milling Machine||1set|
|3phase 380V 60hz|
Why choose us?
We are a professional manufacturer of Plastic Extruders ,we produce plastic extrusion machine.
1. Cost performance is high
All the machine ,we make it ourself to reduce the cost of our customer.
2. Genuine product with excellent quality
We choose our material andequipment strictly.
All the material come to our factory must pass the quality test.
3. Engerneers available to serve oversea
4. Quick delivery
The company provide just in time delivery with its streamlined supply chain.
5. Cost saving
We take strong attention to every detail in the manufacturing process.
The quality control in our factory is very strict.
All defective semi-manufactures must be treated again or reject.
All the machine must be checked out ,then delivered to our customer.
All about that pushing up the price,but get good quality machine.
What we want to do is give our customer a good quality product with stable working and long lived.
Q: What is your delivery time?
A: Normally, it needs about 30 days. The exact time depends on production management.
Q: How long is your delivery time?
A: Generally it is 10-20 days if the goods are in stock. or it is 35-60 days if the goods are not in stock, it is according to quantity.
