CE PVC Powder No Deformation WPC Extruder 1240mm Board Width

Product Details:

Place of Origin: JIANGSU, CHINA
Brand Name: FRIEND
Certification: CE
Model Number: SJSZ-80/156

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Standard wooden package
Delivery Time: 50 working days
Supply Ability: 10 set per month
Get Best Price Contact Now

Detail Information

Board Width: 1240 Mm Extruder: SJSZ-80/156
Motor Power: 55 Kw Material: PVC Powder
Motor Brand: Siemens Inverter: ABB
High Light:

No Deformation WPC extruder

,

PVC powder WPC extruder

,

CE wpc frame making machine

Product Description

PVC foam board machine PVC board production line 1240 width PVC board machinery thickness 20mm



Description

  • PVC board machine adopts specially designed SJSZ80/156 or SJSZ92/188 conical twin screw extruder and imported ABB orSiemens speed frequency converter.It chooses imported RKC and Omron temperature controller. It have a very good plasticization performance.
  • This Machine can produce pvc products of different specifications only via changing mould.
  • Pvc board machine also include the die head, cooling calibrating mould, cooling carrying roller,hauling-off unit, edge trimming device,dust collecting machine,cutting device,and delivery stacker.
  • All the eletrical parts in line are from famous brand supplier,SIEMENS &ABB brand,insure the machine can high stable running.The machine also have the features of high automatic,easy operate etc.
  • The auxiliary units are able to use the PLC control, which is stable and reliable.
  • The foam boards is mostly used in transportation , advertisement,construction furniture industry ect.
  • The board thickness is from 3mm to 35mm,width is from 1220mm to 1580mm.
Main Dimension L: 2200 W: 1220mm T: 6-12mm
L: 2440 W: 600mm T: 6-12mm
L:1200 W: 1200mm T: 6-12mm
L: 600 W: 600mm T: 6-12mm
Specification 1) surface color Wood, cloth, marble
2) Top layer PVC film
3) Material PVC foam
4) Acc Lightgage steel joist or glue
5) Lacquer UV
6) Surface Effect Smooth,embossed, shinning or matt etc.
7) Gloss Matt 30±5%, Semi Gloss 50±5%, High Gloss 70±5%
8) Production Line PUR hot lamination
9) Joint 4-side T&G with micro bevel or square edge

Distinctive

Feature

♦ Damp-proof and water-proof

♦ Good heat insulation and noise insualation

♦ More stable, energy-saving and healthy

♦ Rot-proof and long life

♦ Natural and environment friendly

♦ small heavy

Consumer

Benefits

♦ good health for family

♦ long life and easy to exchange

♦ wonderful color

Installation

♦ Installation: glue or lightgage steel joist

♦ Precision cutting without edge broken



Machine configuration

No. Name Qty Remarks
Host machine
1 SJSZ80/156 conical double screw extruder 1set Zhoushan
2 Board mould 1unit T-shaped
3 Mould temperature controller 2set
4 Cooling sizing platform 1set
5 20P chiller 1set
6 Cooling bracket(including guide rail) 1set
7 Haul off 1set
8 Transverse cutter 1set With dust collector
9 Edge cutter 1set With dust collector
10 Conveying Stacker 1set
Auxiliary machine(optional)
11 SHR500/1000 mixer 1set
12 SWP380 crusher 1set
13 MF500miller 1set
14 Air compressor 1set

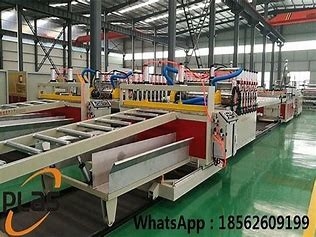

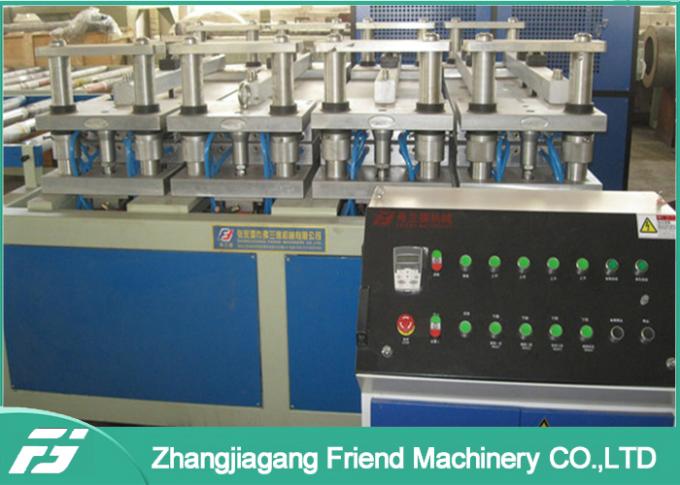

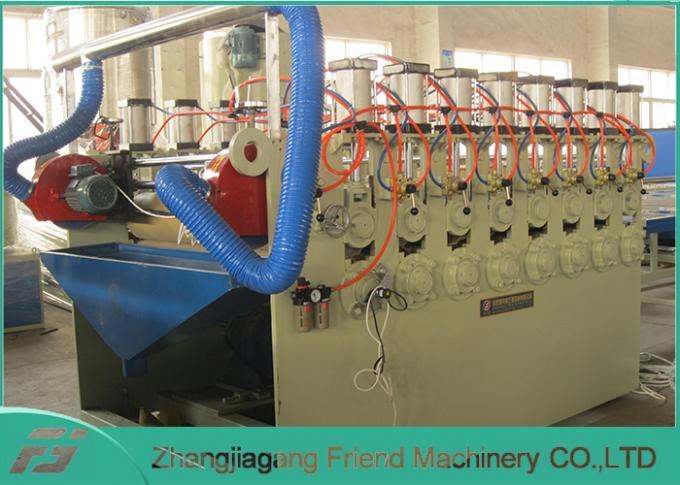

Machine pictures

CE  PVC Powder No Deformation WPC Extruder 1240mm Board Width 0



CE  PVC Powder No Deformation WPC Extruder 1240mm Board Width 1
