PPR 150kg/H Single Screw Plastic Film Extrusion Machine

PPR 150kg/H Single Screw Plastic Film Extrusion Machine

Product Details:

Place of Origin: JIANGSU
Brand Name: FRIEND
Certification: CE
Model Number: SJ-65

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Standard wooden package.
Delivery Time: 30 working days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Motor Power: 18.5 Kw Output: 150-200kg/h
Condition: New Motor Brand: SIEMENS
Screw Length: 1820 Mm Color: Optional
Product Name: Plastic Extrusion Line Screw Material: 38CrMoAIA
High Light:

150kg/h plastic film extrusion machine

,

PPR plastic film extrusion machine

,

PPR single screw plastic extruder

Product Description

Plastic SJ-65 single screw extruder plastic extruder machine 25-60kg/h PE/PP extruding equipment



Application

  • Concerning our Extruders and Extrusion Lines you can rely on an unobstructed production. Our machine conception with direct drive and barrier screw providesextremely energy-saving Extruders of low maintenance requirements.
  • esde Single Screw Extruders are distinguished by their high output achievements on a low temperature level thus preventing the macro molecules from degradation and cross-linking processes. For melting the plastic material our Extruders receive the necessary heat almost exclusively from the motor. This heat is used in such an efficient way that the heating/cooling system on the barrel hardly requires operating.

Features

(1) Extrudr machine mainly apply to extrude PP/PE/PET/PPR/ABS/PS/PA etc material.
(2) It adopt special gearbox,and has features of low noisy,stable running,high capacity,long service life.Equipped with different mold and auxiliary equipments,it could produce plastic pipe,sheet,board granules and so on.

(3) It has features of simple process,high output,stable extrusion presure,and low cost.

(4)Has exported to many countries all over the world .



Technical parameters

Screw

Diameter: 35mm

Screw L/D: 25

Material: 38CrMoAlA

Rotate Speed: 12rpm

Barrel

Heating Control Area: 3 areas

Neck heating: 1 area

Heating Way: Case aluminium heaters with electric fans for cooling

Cooling System: Barrel Fan Cooling, Low-noisy

Reducer motor:

Variable-Frequency and Variable-Speed motor

Power: 2.2~5.5 Kw

Rotate speed: 1450rpm (Max)

Reduction ratio: 130:1



Product Advantage

In addition to the characteristics of general plastic pipes such as light weight, corrosion resistance, non-scaling, and long service life, PP-R pipes also have the following main characteristics: 1 Non-toxic and hygienic. 2 Heat preservation and energy saving. 3 Better heat resistance. 5 Easy installation and reliable connection. 6 Materials can be recycled.



SJ35 extruder is small extruder which has a low capacity. We also have bigger extruders such as:

Product Name

Screw

diameter

Aspect ratio Motor power Screw speed Max output
Unit mm L/D kw r/min kg/h
SJ25/25 25 25:1 1.5 100 3.4
SJ30/25 30 25:1 5.5 125 12.5
SJ45/25 45 25:1 7.5 100 20
SJ45/30 45 30:1 15 145 40
SJ65/25 65 25:1 22 100 60
SJ65/30 65 30:1 30 105 80
SJ90/25 90 25:1 55 120 150
SJ90/30 90 30:1 90 94 250
SJ120/25 120 25:1 90 94 350
SJ120/30 120 30:1 110 94 350
SJ150/25 150 25:1 110 40 320
SJ150/30 150 30:1 132 50 350
SJ200/25 200 25:1 160 30 500
SJ200/30 200 30:1 200 40 550

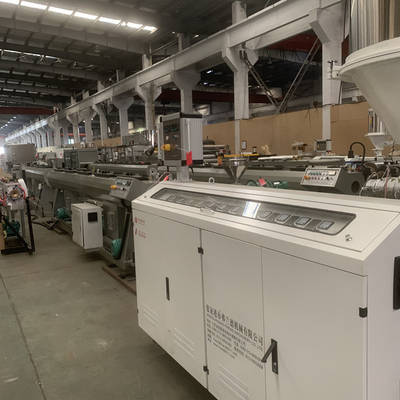

Machine pictures

PPR 150kg/H Single Screw Plastic Film Extrusion Machine 0PPR 150kg/H Single Screw Plastic Film Extrusion Machine 1PPR 150kg/H Single Screw Plastic Film Extrusion Machine 2PPR 150kg/H Single Screw Plastic Film Extrusion Machine 3PPR 150kg/H Single Screw Plastic Film Extrusion Machine 4
